Запчасти Case 440 (58[1]) - SIDE SHIFTER ATTACHMENT, LATE PRODUCTION

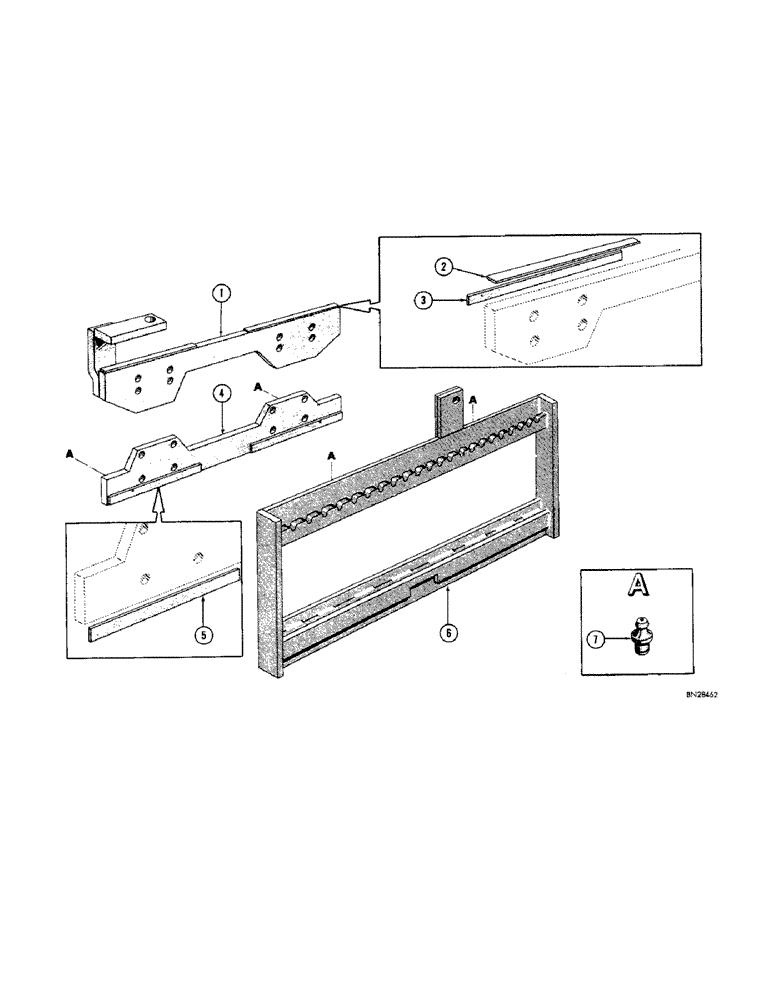

Схема запчастей Case 440 - (58[1]) - SIDE SHIFTER ATTACHMENT, LATE PRODUCTION

Артикул

Название

Примечание

Количество

1

D29828

PLATE - backing, upper, side shifter attachment (late production)

1шт.

2

D29829

STRIP - wear, brass (3/16" x 7/8" x 16") When stock is exhausted use D32575, side shifter attachment (late production)

2шт.

D32575

STRIP - wear, brass (1/8" x 7/8" x 16"), side shifter attachment (late production)

2шт.

3

D29830

STRIP - wear, brass (3/16" x 3/4" x 16") When stock is exhausted use D32576, side shifter attachment (late production)

2шт.

D32576

STRIP - wear, brass (1/8" x 3/4" x 16"), side shifter attachment (late production)

2шт.

4

D29832

PLATE - backing, lower, side shifter attachment (late production)

1шт.

5

D29833

STRIP - wear, brass (1/8" x 1-1/4" x 16"), side shifter attachment (late production)

2шт.

5

D29833

STRIP - wear, brass (1/8" x 1-1/4" x 16"), side shifter attachment (late production)

2шт.

6

D29831

FRAME - hanger, side shifter attachment (late production)

1шт.

7

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight drive (3/16"), side shifter attachment (late production)

4шт.

Выбрано товаров: 10
