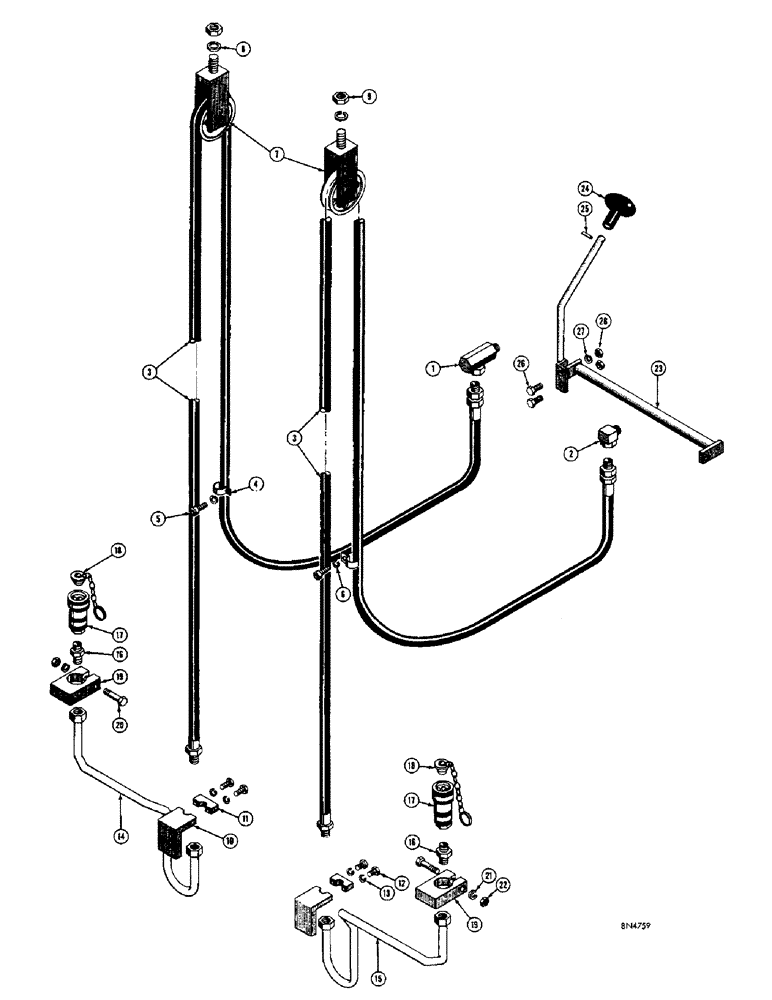

Запчасти Case 440 (54) - AUXILIARY HYDRAULICS, 10 FOOT 6 INCH AND 14 FOOT 3 INCH MASTS

1

D24170

X

UNION - angle, top and bottom control valve port

2шт.

2

D24176

UNION - adapter, swivel (Bottom control valve port) 1/2" NPT (Use D24170)

1шт.

3

D24280

HOSE

- control valve to tube (10'6" mast) 14'8" long

2шт.

D24281

HOSE - control valve to tube (14'3" mast) 18" long

2шт.

4

D24282

CLAMP - hose

2шт.

Another clamp used on later units (not a sub) D39478.

1шт.

5

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex. socket head (1/4" - 20 NC x 1")

2шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

D24277

PULLEY

- hose (Includes bracket)

2шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

10

D24256

BRACKET - tube (Welded to backing plate)

2шт.

11

D24229

CLAMP - tube bracket

2шт.

12

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex. socket head (1/4" - 20 NC x 1")

4шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

D24283

TUBE - R.H.

1шт.

15

D24284

TUBE - L.H.

1шт.

16

D24285

X

FITTING - tube to quick connect

2шт.

17

D24286

COUPLING - quick connect (Female half)

2шт.

18

D24287

CAP - dust

2шт.

19

D24279

BRACKET - quick disconnect (Welded to fork backing plate)

2шт.

20

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

23

D24288

LEVER

- control, auxiliary hydraulics

1шт.

24

D24184

KNOB - control

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" - 16 NC x 2"

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
