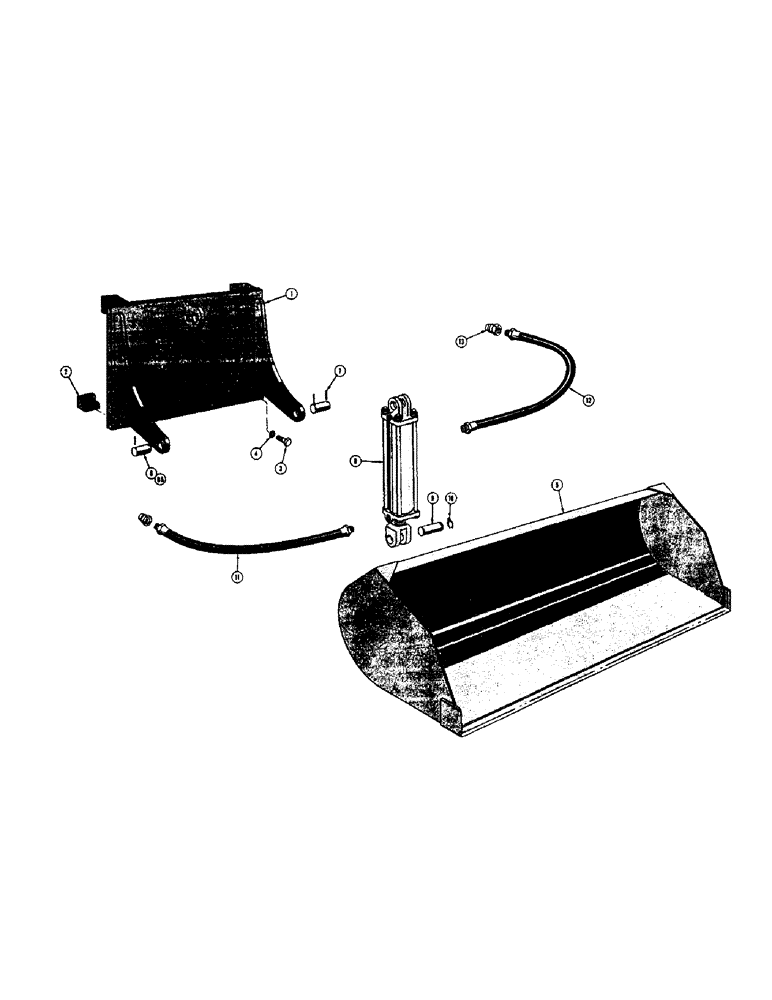

Запчасти Case 440 (52) - LOADER BUCKET ATTACHMENT, LATE PRODUCTION

1

D28180

PLATE - support, bucket

1шт.

2

D24261

BLOCK - clamp

2шт.

3

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

D28179

BUCKET - loader, 10 cubic ft. capacity (Struck)

1шт.

6

D28178

X

PIN - bucket to plate (When stock is exhausted use D36819)

2шт.

6a

D36819

PIN,30.23mm OD x 111.25mm L

-, Serial Range: bucket-plate

2шт.

7

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2-4шт.

8

D24080

CYLINDER - hydraulic, See Figure 44 for breakdown

1шт.

9

D24083

PIN

- pivot, cylinder

2шт.

10

D24084

CLIP

- retaining, pivot pin

4шт.

11

D24259

HOSE - to lower port (38" long)

1-2шт.

12

D24260

HOSE - to upper port (32" long) When stock is exhausted use D24259

1шт.

13

D24262

COUPLING - quick disconnect (Male half)

2шт.
