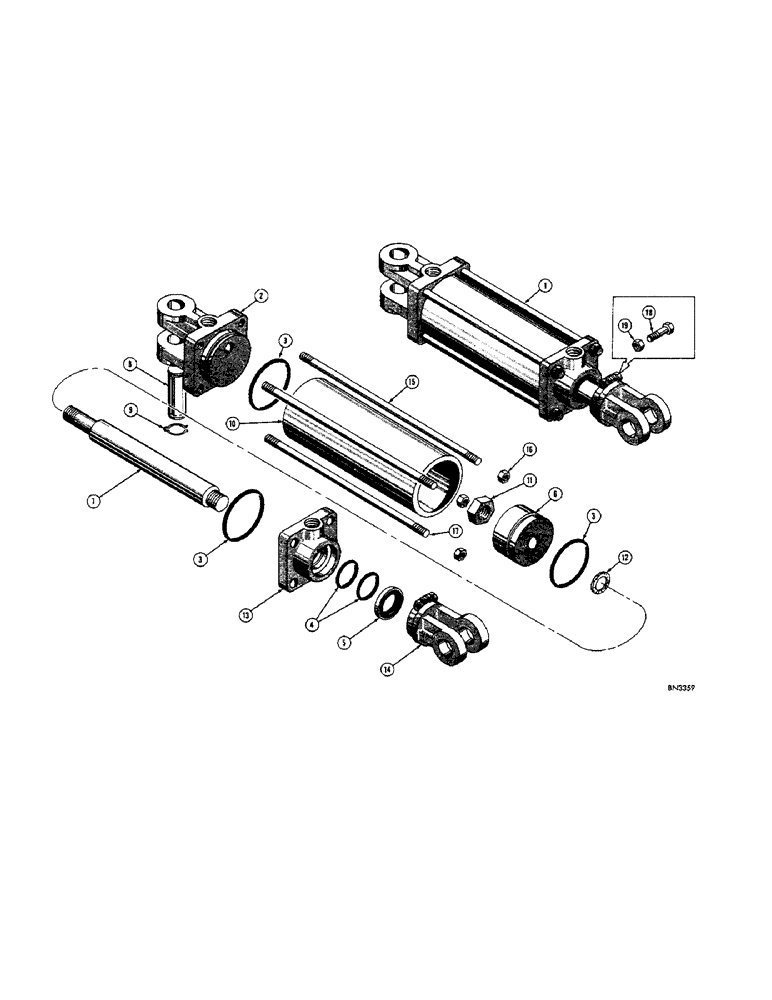

Запчасти Case 440 (46) - D24102 HYDRAULIC SIDE SHIFTER CYLINDER

1

D24102

CYLINDER - hydraulic, side shifter attachment (2-1/2" I.D. x 6" stroke)

1шт.

2

D24103

CAP - cylinder end, closed

1шт.

D24118

GASKET KIT

KIT - cylinder packing

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, end caps and piston

3шт.

4

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, rod

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

6

D24105

PISTON

- cylinder

1шт.

7

D24106

ROD

- piston (1-1/16" O.D.)

1шт.

8

D24083

PIN

- pivot, cylinder

2шт.

9

D24084

CLIP

- retaining

4шт.

10

D24109

TUBE

- cylinder

1шт.

11

25-1512

JAM NUT,Jam, 3/4"-10, G5

- piston rod (3/4" - 16 NF)

1шт.

12

D24091

GASKET

- piston

1шт.

13

D24112

CAP - cylinder end, open

1шт.

14

D24097

CLEVIS

- piston rod

1шт.

15

D28959

ROD - tie (11" long) See D28147

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

D28147

TIE-ROD

ROD - tie (11-1/4" long) Mounts cylinder guard (See D28959)

2шт.

18

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - socket head (3/8" - 16 NC x 1-3/4")

1шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
