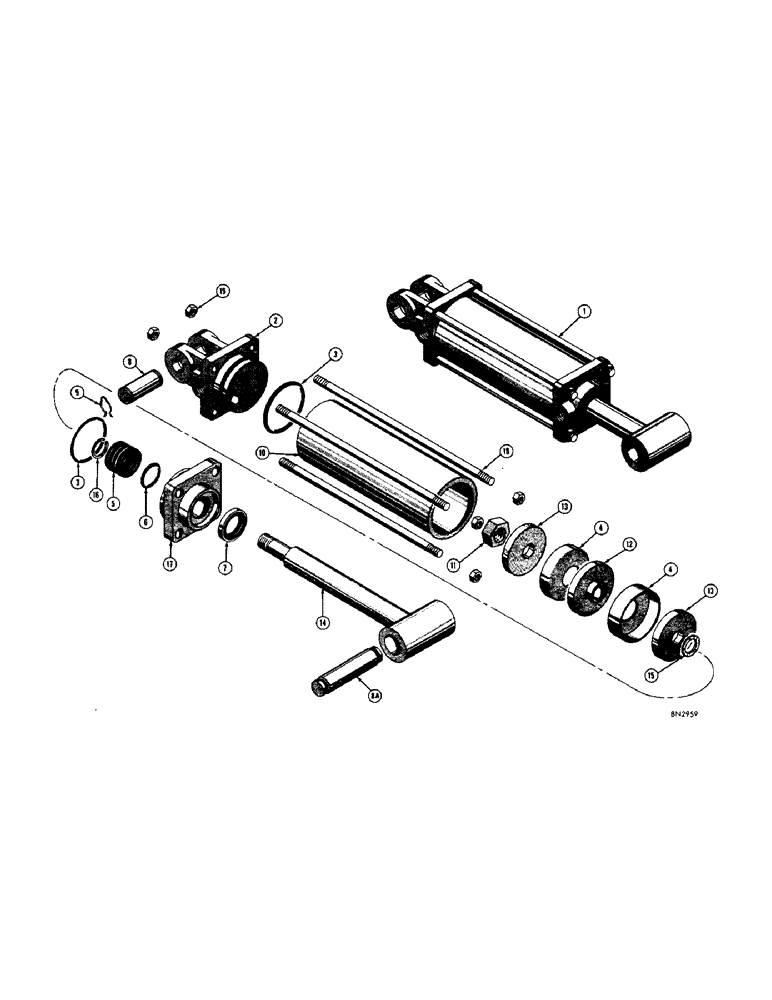

Запчасти Case 440 (46[1]) - D24119 HYDRAULIC BUCKET CYLINDER

1

D24119

CYLINDER - hydraulic bucket (3-1/2" I.D. x 10" stroke), D24119 hydraulic bucket cylinder

1шт.

2

D24120

CAP - cylinder end, closed, D24119 hydraulic bucket cylinder

1шт.

D24127

PACKAGE,SERVICE

KIT - cylinder packing, D24119 hydraulic bucket cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, end caps, D24119 hydraulic bucket cylinder

2шт.

4

NSS

NOT SOLD SEPARAT

CUP - piston, D24119 hydraulic bucket cylinder

2шт.

5

NSS

NOT SOLD SEPARAT

PACKING - piston rod (Set of 5), D24119 hydraulic bucket cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod, D24119 hydraulic bucket cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod, D24119 hydraulic bucket cylinder

1шт.

8

D24083

PIN

- pivot, cylinder closed end, D24119 hydraulic bucket cylinder

1шт.

8a

D24266

PIN - pivot, cylinder rod end, D24119 hydraulic bucket cylinder

1шт.

9

D24084

CLIP

- retaining, pivot pin, D24119 hydraulic bucket cylinder

4шт.

10

D24130

TUBE - cylinder, D24119 hydraulic bucket cylinder

1шт.

11

25-1116

NUT,1"-14, G5

- piston rod (1" - 14 NF), D24119 hydraulic bucket cylinder

1шт.

12

D24132

PISTON

- cylinder, D24119 hydraulic bucket cylinder

1шт.

13

D24133

SPACER - cup, D24119 hydraulic bucket cylinder

2шт.

14

D24134

ROD - piston (1-1/4" O.D.), D24119 hydraulic bucket cylinder

1шт.

15

D24135

GASKET - piston, D24119 hydraulic bucket cylinder

1шт.

16

D24092

RING - retaining, piston packing, D24119 hydraulic bucket cylinder

1шт.

17

D24137

CAP - cylinder end, open, D24119 hydraulic bucket cylinder

1шт.

18

D24138

ROD - tie, D24119 hydraulic bucket cylinder

4шт.

19

25-108

NUT,1/2"-13, G5

- tie rod (1/2" - 13 NC), D24119 hydraulic bucket cylinder

8шт.
