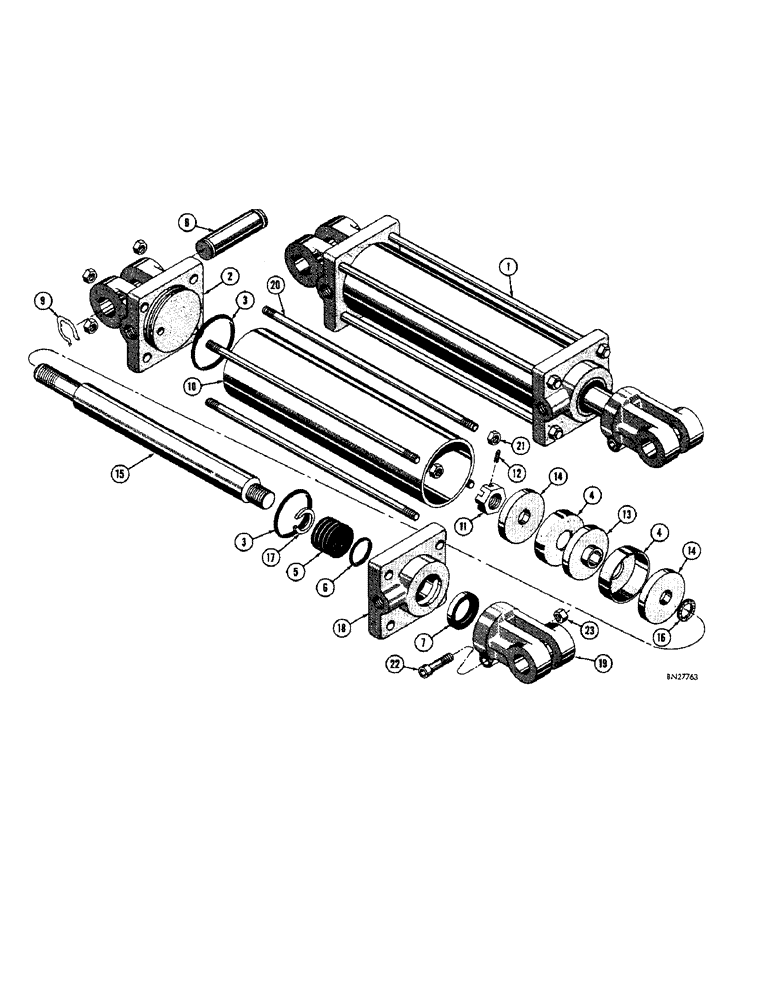

Запчасти Case 440 (44) - D24080 HYDRAULIC CYLINDER

1

D24080

CYLINDER - hydraulic (3" I.D. x 6" stroke)

1шт.

2

D24081

CAP - cylinder end, closed

1шт.

D24093

KIT

- cylinder packing

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, end caps

2шт.

4

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

5

NSS

NOT SOLD SEPARAT

PACKING - piston rod (Set of 5)

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

8

D36819

PIN,30.23mm OD x 111.25mm L

- pivot, cylinder

2шт.

9

138-142

LOCK PIN,1/4" x 2", Slotted

CLIP - retaining, pivot pin

4шт.

9

D24084

CLIP

- retaining, pivot pin

4шт.

10

D24085

TUBE

- cylinder

1шт.

11

25-1112

NUT,3/4"-16, G5

- hex., piston rod (3/4" - 16 NF) If used

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - castle, piston rod (3/4" - 16 NF) Used with roll pin

1шт.

12

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , 25-2312 nut 5/32" x 1 1/4", Slotted

1шт.

13

D24088

PISTON - cylinder

1шт.

14

D24089

SPACER

- cup

2шт.

15

D24090

ROD

- piston (1-1/4" O.D.)

1шт.

16

D24091

GASKET

- piston

1шт.

17

D24092

RING - retaining, packing

1шт.

18

D24094

CAP - cylinder, open

1шт.

19

D24097

CLEVIS

- piston rod

1шт.

20

D24098

ROD - tie

4шт.

21

25-107

NUT,7/16"-14, G5

- tie rod (7/16" - 14 NC)

8шт.

22

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - socket head (3/8" - 16 NC x 1-3/4")

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
