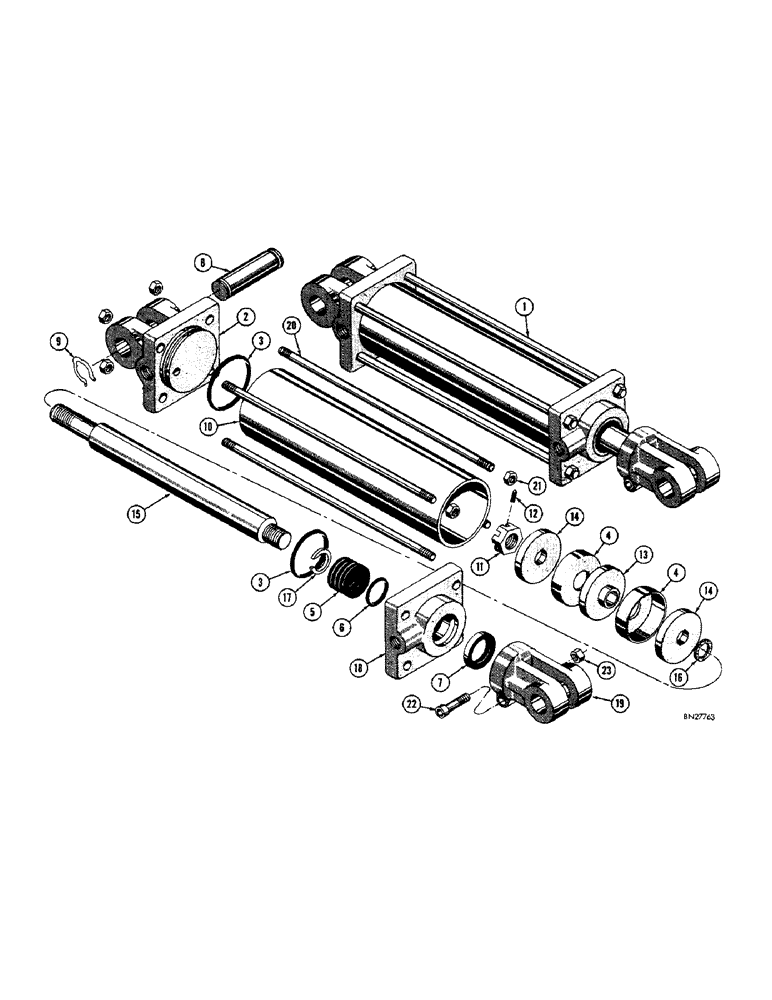

Запчасти Case 440 (44[1]) - D27002 HYDRAULIC CYLINDER

1

D27002

CYLINDER - hydraulic (3-1/2" I.D. x 10" stroke),D27002 hydraulic cylinder

1шт.

2

D24120

CAP - cylinder end, closed, D27002 hydraulic cylinder

1шт.

D24127

PACKAGE,SERVICE

KIT - cylinder packing, D27002 hydraulic cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, end caps, D27002 hydraulic cylinder

2шт.

4

NSS

NOT SOLD SEPARAT

CUP - piston, D27002 hydraulic cylinder

2шт.

5

NSS

NOT SOLD SEPARAT

PACKING - piston rod (Set of 5), D27002 hydraulic cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, piston rod, D27002 hydraulic cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod, D27002 hydraulic cylinder

1шт.

8

D24083

PIN

- pivot, cylinder, D27002 hydraulic cylinder

2шт.

9

D24084

CLIP

- retaining, pivot pin, D27002 hydraulic cylinder

4шт.

10

D24130

TUBE - cylinder, D27002 hydraulic cylinder

1шт.

11

25-1116

NUT,1"-14, G5

- hex., piston rod (1" - 14 NF) If used, D27002 hydraulic cylinder

1шт.

25-2316

SLOTTED NUT

- castle, piston rod (1" - 14 NF) Used with roll pin, D27002 hydraulic cylinder

1шт.

12

138-79

LOCK PIN,5/32" x 1 1/4", Slotted

PIN, , 25-2316 nut, D27002 hydraulic cylinder 5/32" x 1 1/4", Slotted

1шт.

13

D24132

PISTON

- cylinder, D2702 hydraulic cylinder

1шт.

14

D24133

SPACER - cup, D27002 hydraulic cylinder

2шт.

15

D28360

ROD

- piston (1-1/4" O.D.), D27002 hydraulic cylinder

1шт.

16

D24135

GASKET - piston, D27002 hydraulic cylinder

1шт.

17

D24092

RING - retaining, packing, D27002 hydraulic cylinder

1шт.

18

D24137

CAP - cylinder end, open, D27002 hydraulic cylinder

1шт.

19

D24097

CLEVIS

- piston rod, D27002 hydraulic cylinder

1шт.

20

D24138

ROD - tie, D27002 hydraulic cylinder

4шт.

21

25-108

NUT,1/2"-13, G5

- tie rod (1/2" - 13 NC), D27002 hydraulic cylinder

8шт.

22

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - socket head (3/8" - 16 NC x 1-3/4"), D27002 hydraulic cylinder

1шт.

23

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), D27002 hydraulic cylinder

1шт.
