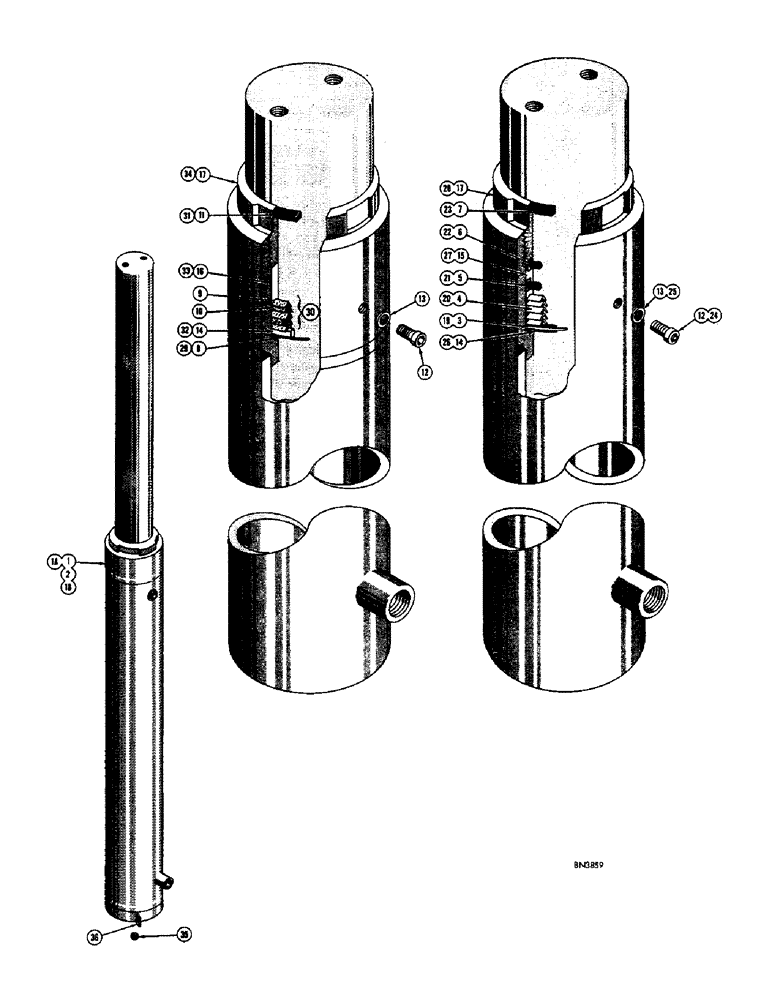

Запчасти Case 440 (42) - MAST LIFT CYLINDERS

1

D24173

CYLINDER

- mast (10'6" mast) 3-1/2" dia.

1шт.

1a

D36571

CYLINDER - mast (12' mast) 3-1/2" dia.

1шт.

2

60969

CYLINDER - mast (14'3" mast) 3-1/2" dia.

1шт.

6010

PACKING

KIT - packing (Use D28327)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - wire

1шт.

4

NSS

NOT SOLD SEPARAT

PACKING - Chevron (Set of 5)

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, outer (Not required)

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, inner (Not required)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

D28327

SEAL

KIT - packing (See 6010)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - wire

1шт.

9

NSS

NOT SOLD SEPARAT

PACKING - Chevron, fabric

3шт.

10

NSS

NOT SOLD SEPARAT

PACKING - Chevron, leather

2шт.

11

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

12

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder (1/4" - 20 NC x 3/8")

1шт.

13

D24252

WASHER

- bleeder screw

1шт.

14

60954

SLEEVE

- packing, lower

1шт.

15

60953

X

SLEEVE - packing, upper (Has "O" ring grooves) Use D28337

1шт.

16

D28337

SLEEVE

- packing, upper (See 60953)

1шт.

17

60955

NUT

- packing, mast cylinder

1шт.

18

D24175

CYLINDER - mast (21'6" mast) 4-3/4" dia.

1шт.

D24174

X

KIT - packing (Early production) When stock is exhausted use 1 - D32579 packing kit, 1 - D32580 packing ring, and 1 - D32581 packing ring (See below)

1шт.

19

NSS

NOT SOLD SEPARAT

RING - wire

1шт.

20

NSS

NOT SOLD SEPARAT

PACKING - Chevron (Set of 5)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, outer

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - "O" ring, inner

1шт.

23

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

24

178-426

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - bleeder (1/4" - 20 NC x 3/8")

1шт.

25

D24252

WASHER

- bleeder screw

1шт.

26

D24253

SLEEVE - packing, lower (Early production) When stock is exhausted use 1 - D32580 packing ring, 1 - D32581 packing ring, and 1 - D32579 packing kit (See below)

1шт.

27

D24254

SLEEVE - packing, upper (Early production) When stock is exhausted use 1 - D32581 packing ring, 1 - D32580 packing ring, and 1 - D32579 packing kit (See below)

1шт.

28

D24255

X

NUT - packing, mast cylinder (When stock is exhausted use D32582)

1шт.

D32579

KIT

- packing (Late production) When replacing D24174, also use 1 - D32580 packing ring and 1 - D32581 packing ring

1шт.

29

NSS

NOT SOLD SEPARAT

RING - wire

1шт.

30

NSS

NOT SOLD SEPARAT

PACKING - Chevron (Set of 5)

1шт.

31

NSS

NOT SOLD SEPARAT

RING - wiper

1шт.

32

D32580

SLEEVE - packing, lower

1шт.

33

D32581

SLEEVE - packing, upper

1шт.

34

D32582

NUT

- packing mast cylinder (See D24255)

1шт.

35

211-15

BALL,5/8" Dia

- cylinder pivot (. steel) Used in early production 5/8" Dia

1шт.

36

D26094

RETAINER - for lift cylinders

1шт.
