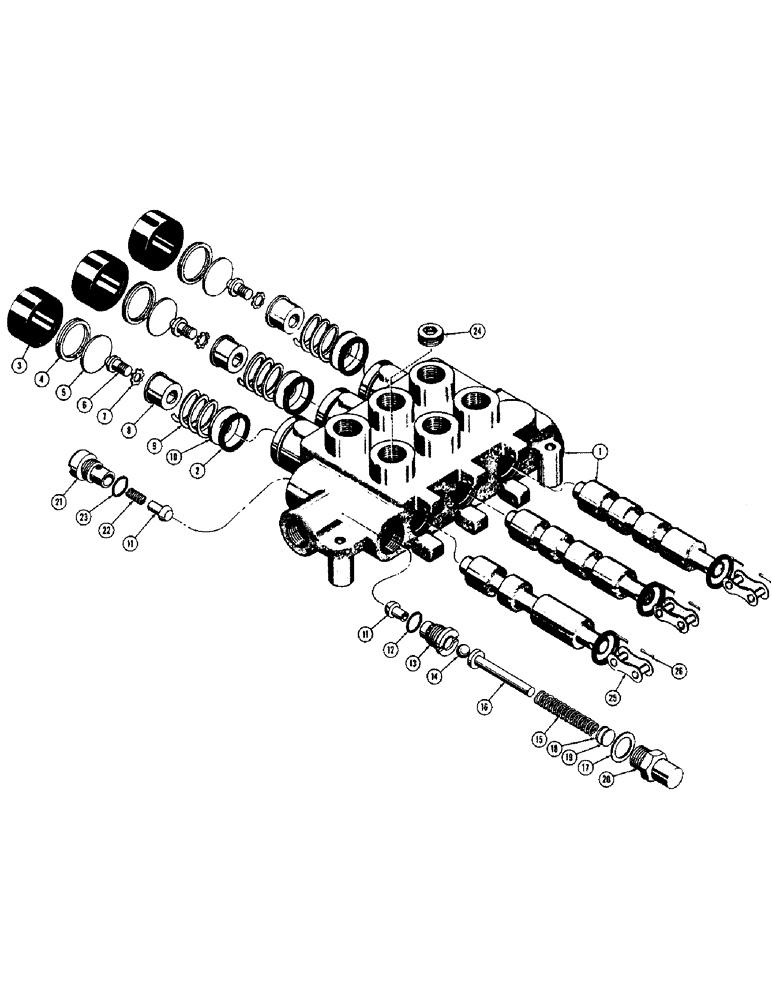

Запчасти Case 440 (40) - D28968 HYDRAULIC CONTROL VALVE

D28968

VALVE

- control, hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - Use D28968

1шт.

2

36642

SEAL

- spool

6шт.

3

36645

CAP

- rubber

3шт.

4

36633

LID

SNAP RING - stop disc

3шт.

5

663023R1

CAP

- stop

3шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring

3шт.

7

36628

LOCK WASHER

- lock

3шт.

8

36630

DRAWBAR SUPPORT

- stop

3шт.

9

36632

SPRING

- centering

3шт.

10

36650

WASHER

- stop

3шт.

11

D28576

VALVE POPPET

POPPET - check

2шт.

12

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

13

D28575

SEAT

- relief valve

1шт.

14

211-12

BALL,7/16 Dia

- relief valve (7/16" dia.)

1шт.

15

D25841

SPRING

- relief valve

1шт.

16

D26379

GUIDE - relief valve spring

1шт.

17

34115

GASKET

- relief valve body

1шт.

18

D25844

SHIM,.0097" Thk

Relief valve spring .0097" Thk

1шт.

19

D28960

SHIN

SHIM - relief valve spring (.006")

1шт.

20

D28961

BODY - relief valve

1шт.

21

D28574

PLUG

- lower check poppet

1шт.

22

D28840

SPRING

- lower check poppet

1шт.

23

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

SEAL - "O" ring, lower check plug

1шт.

24

D23723

PLUG

- valve port

1шт.

25

D24140

LINK

- handle

3шт.

26

36625

X

PIN - cotter (5/64" x 1/2")

6шт.
