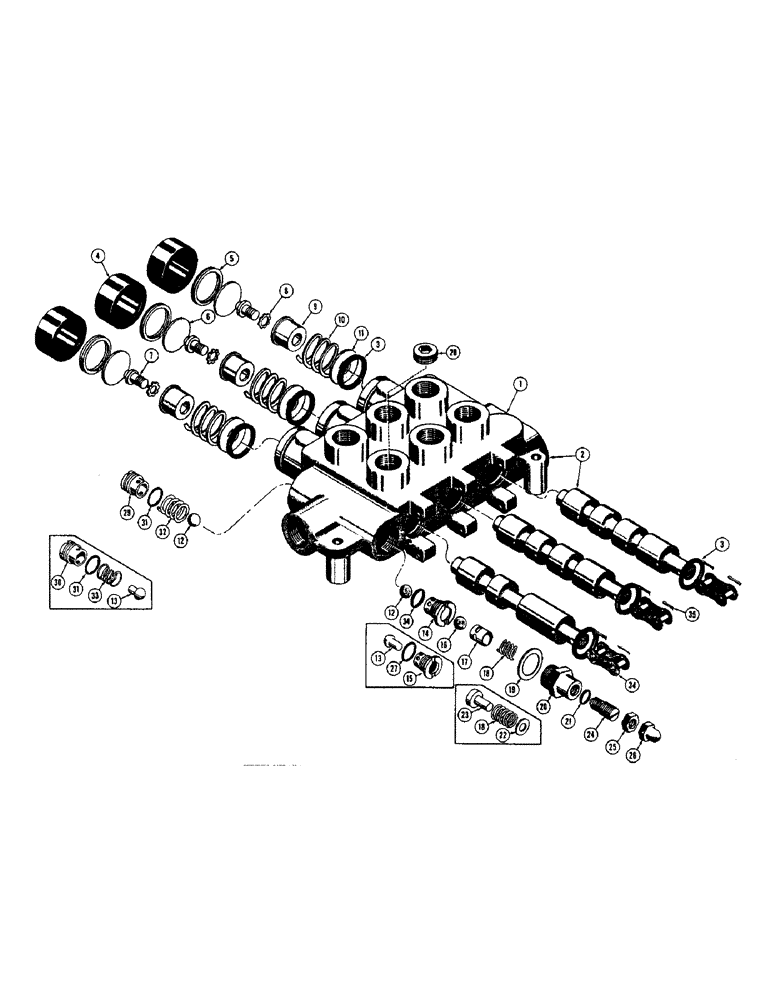

Запчасти Case 440 (38) - D24263 HYDRAULIC CONTROL VALVE
№
Артикул
Название
Примечание
Количество
1
D24263
VALVE - hydraulic control (Use D28968), See Figure 40
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING AND SPOOLS - Use D28968
1шт.
3
36642
SEAL
- spool
6шт.
4
36645
CAP
- rubber
3шт.
5
36633
LID
SNAP RING - stop disc
3шт.
6
36631
HOUSING
- stop
3шт.
7
36626
HOSE CLIP
BOLT - spring
3шт.
8
36628
LOCK WASHER
- lock
3шт.
9
CAS36630
COLLAR
- stop
3шт.
10
36632
SPRING
- centering
3шт.
11
36650
WASHER
- stop
3шт.
12
D23930
BALL
- check, aluminum (5/8" dia.) Use 1 - D28576 poppet, 1 - D28574 plug, 1 - D28913 seat, and 1 - D28840 spring
2шт.
13
D28576
VALVE POPPET
POPPET - check (See D23930)
2шт.
14
D24394
SEAT - relief valve (Used with D23930 ball) See D28913
1шт.
15
D28913
SEAT
- relief valve (Used with D28576 poppet) See D24394
1шт.
16
A7450
X
BALL - relief valve (Use 211-12)
1шт.
211-12
BALL,7/16 Dia
- relief valve
1шт.
17
D24389
COLLAR - jam, relief valve seat (Not required - no longer furnished)
1шт.
18
D24049
VALVE SPRING
SPRING - relief valve
1шт.
19
34115
GASKET
- relief valve body
1шт.
20
34113
BODY
- relief valve
1шт.
21
VT2983
X
SEAL - "O" ring, adjusting screw
1шт.
22
36660
WASHER
- relief valve spring
2шт.
23
CAS34120
BUSHING
SPACER - relief valve spring
1шт.
24
34110
ADJUSTMENT SCREW
- adjusting, relief valve
1шт.
25
34111
X
NUT - jam, adjusting screw
1шт.
26
34109
CAP - acorn, nut
1шт.
27
D23928
O-RING
SEAL - "O" ring, relief valve seat
1шт.
28
D23723
PLUG
- valve port
3шт.
29
D23929
PLUG
- check ball (Used with D23930 ball only) See D28574
1шт.
30
D28574
PLUG
- check poppet (Used with D28576 poppet only) See D23929
1шт.
31
D48359
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
SEAL - "O" ring, plug
1шт.
32
D27641
SPRING - lower check ball (Used with D23930 ball only) See D28840
1шт.
33
D28840
SPRING
- lower check poppet (Used with D28576 poppet only) See D27641
1шт.
34
D24140
LINK
- handle
3шт.
35
36625
X
PIN - cotter (5/64" x 1/2")
6шт.
Выбрано товаров: 36
