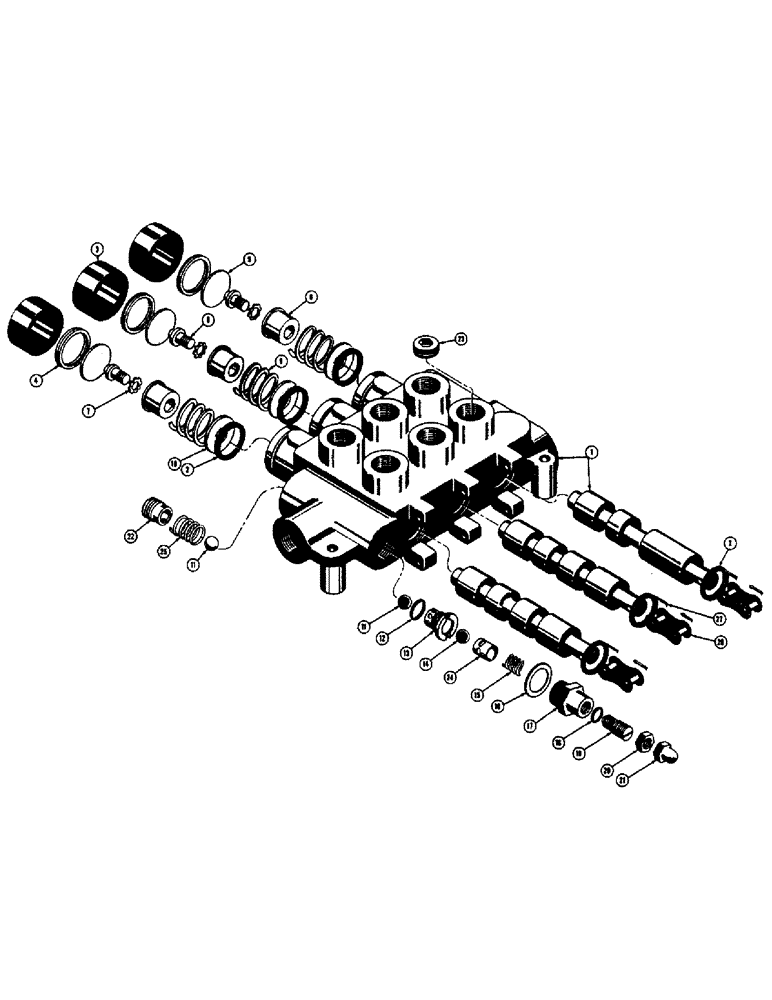

Запчасти Case 440 (36) - D24048 HYDRAULIC CONTROL VALVE

D24048

VALVE - control, hydraulic (Use D28968), See Figure 40

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOLS - Use D28968

1шт.

2

36642

SEAL

- spool

6шт.

3

36645

CAP

- rubber

3шт.

4

36633

LID

SNAP RING - stop disc

3шт.

5

663023R1

CAP

- stop

3шт.

6

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT - spring

3шт.

7

36644

X

WASHER - lock (Use 36628)

3шт.

36628

LOCK WASHER

- lock

3шт.

8

36630

DRAWBAR SUPPORT

- stop

3шт.

9

36632

SPRING

- centering

3шт.

10

36650

WASHER

- stop

3шт.

11

O4896CS

BALL - check, nylon (9/16" dia.)

2шт.

12

34118

X

SEAL - "O" ring (Use O8416AB)

1шт.

O8416AB

X

SEAL - "O" ring

1шт.

13

36635

SHIELD

SEAT - relief valve

1шт.

14

O7210AB

X

BALL - relief valve (Use 211-13)

1шт.

211-13

BALL,1/2" Dia

- relief valve 1/2" Dia

1шт.

15

D24049

VALVE SPRING

SPRING - relief valve

1шт.

16

34115

GASKET

- relief valve body

1шт.

17

34113

BODY

- relief valve

1шт.

18

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

SEAL - "O" ring, adjusting screw (Use VT2983)

1шт.

VT2983

X

SEAL - "O" ring, adjusting screw

1шт.

19

34110

ADJUSTMENT SCREW

- adjusting

1шт.

20

34111

X

NUT - jam, adjusting screw

1шт.

21

34109

CAP - nut, acorn

1шт.

22

36634

DISC

PLUG - check ball

1шт.

23

D23723

PLUG

- port

3шт.

24

D24389

COLLAR - jam, relief valve seat (Not required - no longer furnished)

1шт.

25

D27641

SPRING - lower check ball

1шт.

26

D24140

LINK

- handle

3шт.

27

36625

X

PIN - cotter (5/64" x 1/2")

6шт.
