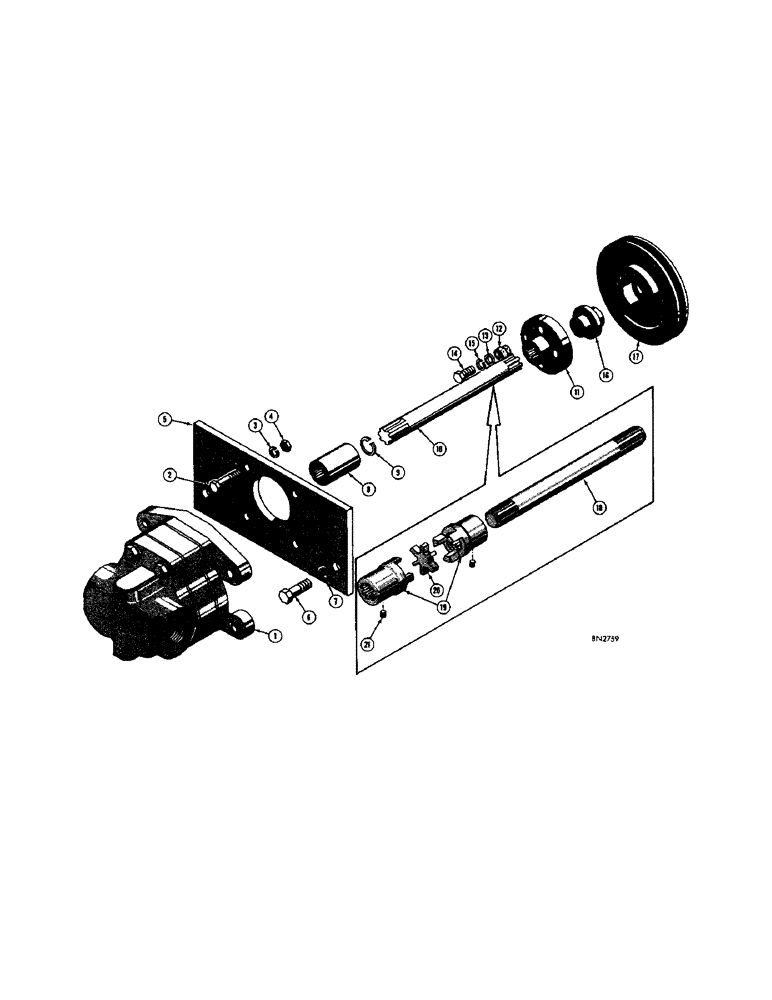

Запчасти Case 440 (32) - REAR HYDRAULIC PUMP DRIVE

1

D24038

PUMP - hydraulic, See Figure 34 for breakdown

1шт.

2

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

5

D24179

BRACKET - pump mounting

1шт.

6

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

36280

COUPLING

- shaft to pump (See D29617)

1шт.

9

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , coupling to shaft 0.875", Int, #87

1шт.

10

DR10512

X

SHAFT - drive, hydraulic pump (Used with 36280 coupling) See D27952

1шт.

11

G36217

HUB ASSY.

COUPLING - flexible, pump, Serial Range: driveshaft-pulley

1шт.

12

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

13

VT3340

X

WASHER - 29/64" I.D. x 3/4" O.D. x 1/16" thick

4шт.

14

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

15

92-7

LOCK WASHER,7/16"

4шт.

16

G11263

NUT

- fan drive pulley (When stock is exhausted use A35673)

1шт.

A35673

NUT

- fan drive pulley

1шт.

17

G11712

PULLEY

- drive, fan and generator (Used before tractor serial no. 6165051)

1шт.

G11342

X

PULLEY - drive, fan and generator (Used on tractor serial no. 6165051 and after)

1шт.

18

D27952

SHAFT

- drive, hydraulic pump (Used with D29617 coupling) See DR10512

1шт.

19

D29617

COUPLING

- shaft to pump (See 36280)

1шт.

20

D30101

PLATE ASSY.

PLATE - conter, coupling wear

1шт.

21

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set (5/16" - 18 NC x 3/8")

2шт.
