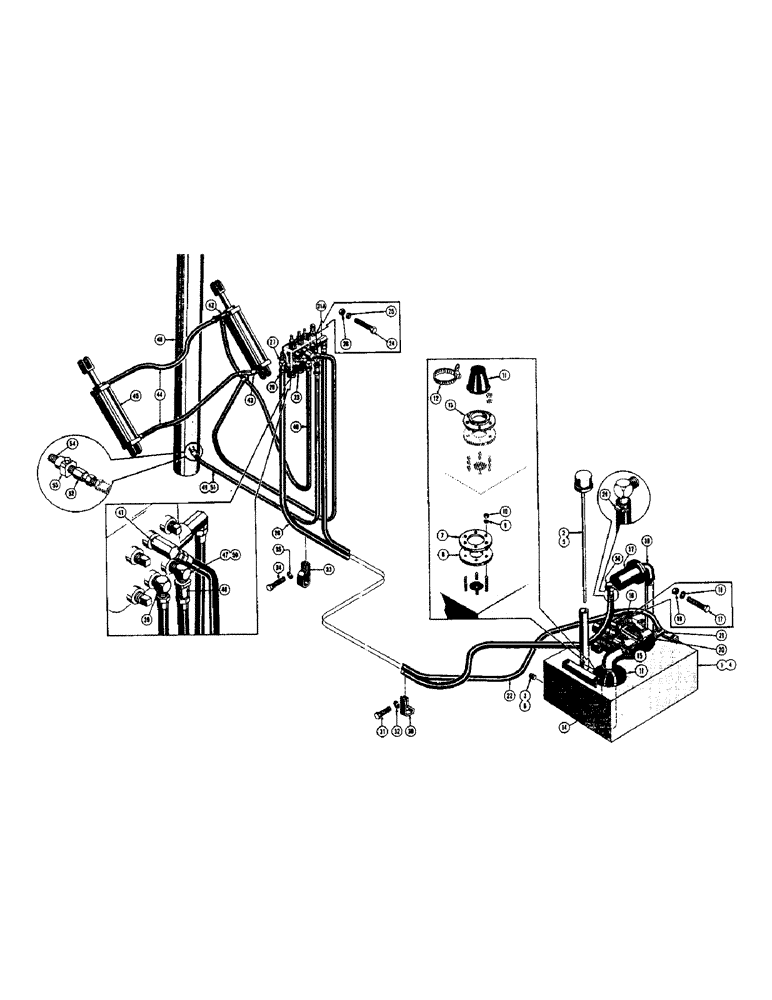

Запчасти Case 440 (28) - BASIC FORK LIFT HYDRAULICS

1

D27503

RESERVOIR - hydraulic oil (Late production, uses D27240 seal)

1шт.

2

D24165

DIPSTICK - reservoir level

1шт.

3

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - drain, square head (1/2" NPT)

1шт.

4

D24178

RESERVOIR - hydraulic oil (Early production, use D27503 and D27240)

1шт.

5

D24165

DIPSTICK - reservoir level

1шт.

6

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - drain, square head (1/2" NPT)

1шт.

7

D24166

RETAINER - suction line (Use D27240 and D27239)

1шт.

8

D24167

SEAL - suction line

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

10

25-104

NUT,1/4"-20, G5

6шт.

11

D27240

SEAL - suction line, boot

1шт.

12

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP - seal

1шт.

13

D27239

FLANGE - retaining, seal (Replaces D24166 for D27240 seal)

1шт.

14

221-300

NIPPLE - pipe, suction line (1-1/2" NPT x 10" long)

1шт.

15

221-418

X

ELBOW - street, 90 degrees (1-1/2" NPT)

1шт.

16

D24038

PUMP - hydraulic, See Figure 34 for breakdown

1шт.

17

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

HHCS - 1/2" - 13 NC x 2-1/4"

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

20

221-74

BUSHING - reducing, pump outlet (1-1/2" NPT x 3/4" NPT)

1шт.

21

D24157

X

UNION - angle, pump outlet

2шт.

21a

D27504

UNION - angle, valve inlet (3/4" NPT)

1шт.

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

22

D24158

HOSE - pump to control valve (3/4" I.D. x 150" long)

1шт.

23

D24263

VALVE - control, hydraulic (See Figure 38 for breakdown) Use D28968

1шт.

D24048

VALVE - control, hydraulic (See Figure 36 for breakdown) Use D28968

1шт.

D28968

VALVE

- control, hydraulic (See Figure 40 for breakdown)

1шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

25

92-6

LOCK WASHER,3/8"

4шт.

26

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

27

D24159

X

STEM - hose, control valve (3/4" NPT)

1шт.

Another stem used on later units (not a sub) D39473.

1шт.

28

D24160

HOSE - control valve to filter (1" I.D. x 133" long)

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

30

D24161

SUPPORT - hose, rear

1шт.

31

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

33

D24164

SUPPORT - hose, front

2шт.

34

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

35

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

36

D24162

STEM - hose, filter (1" NPT)

1шт.

37

D24141

FILTER - hydraulic oil (See page 32 for breakdown)

1шт.

38

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees (1" NPT)

1шт.

39

D24168

X

ELBOW - special restrictor, bottom port of control valve

1шт.

40

D24169

HOSE - control valve to R.H. tilt cylinder (1/2" I.D. x 38" long)

2шт.

41

D24170

X

UNION - angle, top port control valve

1шт.

Another union used on later units (not a sub) D39460.

1шт.

42

D24171

TEE - union adapter (R.H. tilt cylinder ports)

2шт.

43

217-17

ELBOW - street, 45 degrees (1/2" NPT) Rear port of R.H. tilt cylnder 45º, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

1шт.

44

D24172

HOSE - cross-over, tilt cylinder (1/2" I.D. x 28" long)

2шт.

45

D24080

CYLINDER - hydraulic, 10 degree mast tilt (Used with all 21'6" masts and with 10'6" and 14'3" masts before fork lift serial no. 4074312) See D27002, See Figure 44 for breakdown

2шт.

Another cylinder used on later units (not a sub) D39464.

1шт.

D27002

CYLINDER - hydraulic, 20 degree mast tilt (Used with 10'6" and 14'3" masts on fork lift serial no. 4074312 and after) See D24080, See Figure 48 for breakdown

2шт.

Another cylinder used on later units (not a sub) D39465.

1шт.

46

D24173

CYLINDER

- mast (10'6" mast), See Figure 42 for breakdown

1шт.

60969

CYLINDER - mast (14'3" mast), See Figure 42 for breakdown

1шт.

D24175

CYLINDER - mast (21'6" mast), See Figure 42 for breakdown

1шт.

47

D24176

UNION - adapter, swivel (1/2" NPT), mast cylinder hydralics, models m420 and m310b

1шт.

48

D24177

VALVE

- flow control, mast cylinder hydraulics, models m420 and 310b

1шт.

Another valve used on later units (not a sub) D39459.

1шт.

49

D24169

HOSE - control valve to mast cylinder (1/2" I.D. x 38" long), mast cylinder hdyraulics, models m420 and 310b

1шт.

50

D24170

X

UNION - angle (1/2" NPT), mast cylinder hydraulics, models 430 and 440

1шт.

Another union used on later units (not a sub) D39460.

1шт.

51

D24169

HOSE - control valve to mast cylinder (1/2" I.D. x 38" long), mast cylinder hydraulics, models 430 and 440

1шт.

52

D28146

UNION - adapter, mast cylinder hdyraulics, models 430 and 440

1шт.

53

D24177

VALVE

- flow control, mast cylindermhydraulics, models 430 and 440

1шт.

Another valve used on later units (not a sub) D39459.

1шт.

54

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe (1/2" NPT x 1-1/8" long), mast cylinder hydraulics, models 430 and 440

1шт.
