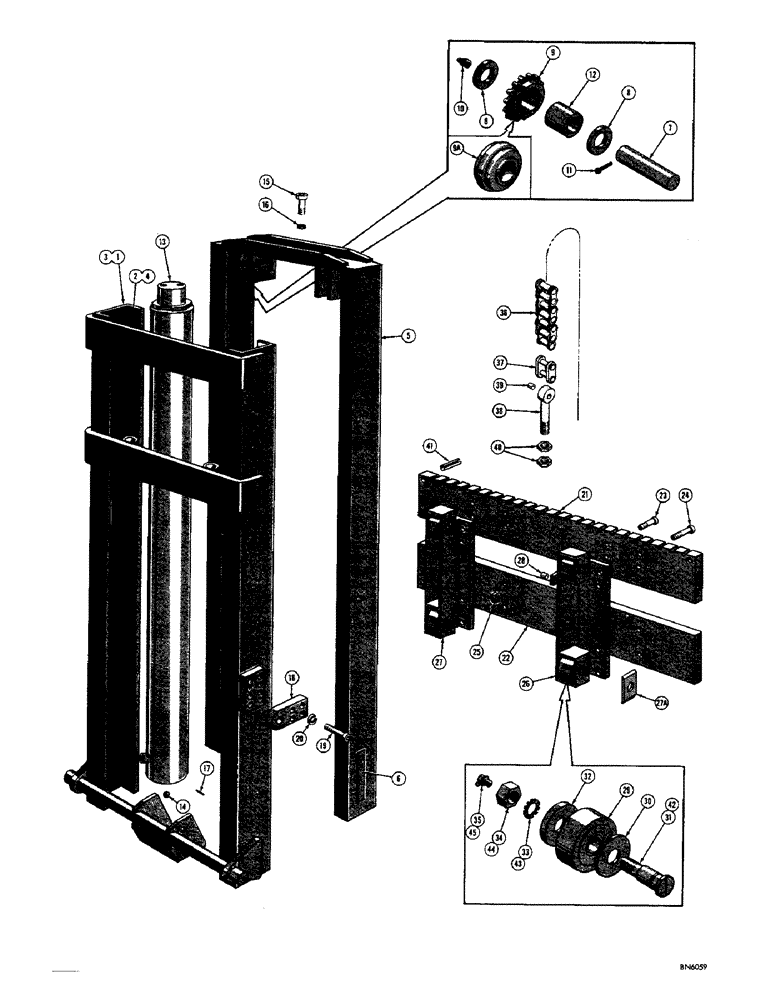

Запчасти Case 440 (18) - MAST, 10 FOOT 6 INCH AND 14 FOOT 3 INCH

D24236

MAST - complete, 10'6" (10 degree forward tilt) See mast no. D32275

1шт.

D32275

MAST - complete, 10'6" (20 degree forward tilt) See mast no. D24236

1шт.

D24237

MAST - complete, 14'3" (10 degree forward tilt) See mast no. D32276

1шт.

D32276

MAST - complete, 14'3" (20 degree forward tilt) See mast no. D24237

1шт.

1

D24322

CHANNEL - outer, 10'6" mast (10 degree forward tilt) See D32573

1шт.

D32573

CHANNEL - outer, 10'6" mast (20 degree forward tilt) See D24322

1шт.

2

D27366

WEAR PAD

PLATE - wear, outer channel leg (1/8" x 1-1/4" x 7")

4шт.

D32555

PAD

PLATE - wear, outer channel side (1/8" x 1-1/4" x 5")

2шт.

3

D24323

CHANNEL - outer, 14'3" mast (10 degree forward tilt) See D32574

1шт.

D32574

CHANNEL - outer, 14'3" mast (20 degree forward tilt) See D24323

1шт.

4

60972

STRIP

PLATE - wear, outer channel (1/8" x 1-1/4" x 11")

6шт.

5

D24330

CHANNEL - inner (10'6" masts)

1шт.

60958

CHANNEL - inner (14'3" masts)

1шт.

6

60972

STRIP

PLATE - wear, inner channel (1/8" - 1-1/4" x 11")

6шт.

7

NLS

NO LONGER SERVICED

- sprocket

2шт.

8

60944

THRUST WASHER

- thrust

4шт.

9

60942

SPROCKET - lift chain, with teeth (Used with roller chain) See D32588

2шт.

9a

D32588

SPROCKET ASSY.

SPROCKET - lift chain, without teeth (Used with D32586 and D32587 rollerless chain only) See 60942

2шт.

10

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight drive (3/16")

2шт.

11

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

12

60943

BEARING - sprocket

2шт.

13

D24173

CYLINDER

- lift, 10'6" mast, See Figure 42 for breakdown

1шт.

60969

CYLINDER - lift, 14'3" mast, See Figure 42 for breakdown

1шт.

14

211-15

BALL,5/8" Dia

- cylinder pivot (. steel) Early production 5/8" Dia

1шт.

15

62-824

HEX SOC SCREW,1/2"-20 x 1 1/2"

SCREW - socket head cap (1/2" - 20 NF x 1-1/2")

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Cylinder retainer 1/4" x 1 1/4", Slotted

1шт.

18

D24326

BRACKET - tilt cylinder, removable (Early production)

2шт.

19

61-1024

SCREW - socket head cap (5/8" - 11 NC x 1-1/2")

8шт.

20

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

21

D24324

PLATE

- backing, upper

1шт.

22

D24325

LARGE PLATE

PLATE - backing, lower

1шт.

23

61-820

HEX SOC SCREW,1/2"-13 x 1 1/4"

SCREW - socket head cap (1/2" - 13 NC x 1-1/4")

8шт.

24

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - socket head cap (1/2" - 13 NC x 1-3/4")

8шт.

25

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

16шт.

26

D28940

CARRIAGE - R.H. (Models M420 and 310B)

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

D28944

CARRIAGE - R.H. (Models 430 and 440)

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

27

D28941

CARRIAGE - L.H. (Models M420 and 310B)

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

D28945

CARRIAGE - L.H. (Models 430 and 440)

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

27a

D28943

PLATE - wear, carriage

2шт.

28

D26196

BUSHING

- chain connecting

1шт.

29

60915

BEARING

ROLLER - load

4шт.

30

60917

THRUST WASHER

WASHER - thrust

4шт.

31

60914

X

PIN - load roller (Use D24319)

4шт.

D24319

X

PIN - (When stock is exhausted, use D36811)

4шт.

32

60916

WASHER

- spacer

4шт.

33

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

34

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

4шт.

35

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight

4шт.

36

D24331

CHAIN - roller, lift (10'6" mast) 95 riveted links #80 chain

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D26195

CHAIN - roller, lift (10'6" mast) 93 riveted links #80 chain

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

60946-120

CHAIN - roller, lift (14'3" mast) 119 riveted links #80 chain (Use D26197)

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D26197

CHAIN - roller, lift (14'3" mast) 107 riveted links #80 chain

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D28942

CHAIN - roller, lift (14'3" mast) 105 riveted links #80 chain

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D32586

CHAIN - rollerless, lift (10'6" mast) 93 riveted links #85 chain (Use with D32588 sprocket only)

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D32587

CHAIN - rollerless, lift (14'3" mast) 105 riveted links #85 chain (Use only D32588 sprocket)

2шт.

Total length of chain and connecting links must be equal for each set.

1шт.

37

60947

X

LINK - connecting (1" pitch) Use D26164 in pairs

4шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D26164

X

LINK - connecting (2" pitch) When stock is exhausted use D32583

4шт.

Total length of chain and connecting links must be equal for each set.

1шт.

D32583

LINK

- connecting (2" pitch)

4шт.

Total length of chain and connecting links must be equal for each set.

1шт.

38

60948

EYEBOLT,1/2" - 20 x 4 5/8"

BOLT - eye, chain anchor

2шт.

39

D26196

BUSHING

- eye bolt

1шт.

40

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

41

138-190

LOCK PIN,7/16" x 2", Slotted

PIN, , Upper backing plate 7/16" x 2", Slotted

2шт.

D36811

KIT

- axle, load roller

4шт.

42

NSS

NOT SOLD SEPARAT

AXLE - load roller

1шт.

43

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

44

D39477

NUT

- hex., jam (5/8" - 18 NF)

1шт.

45

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, str. dr. (3/16") steel ball is 211-5, O-ring is A18414

1шт.
