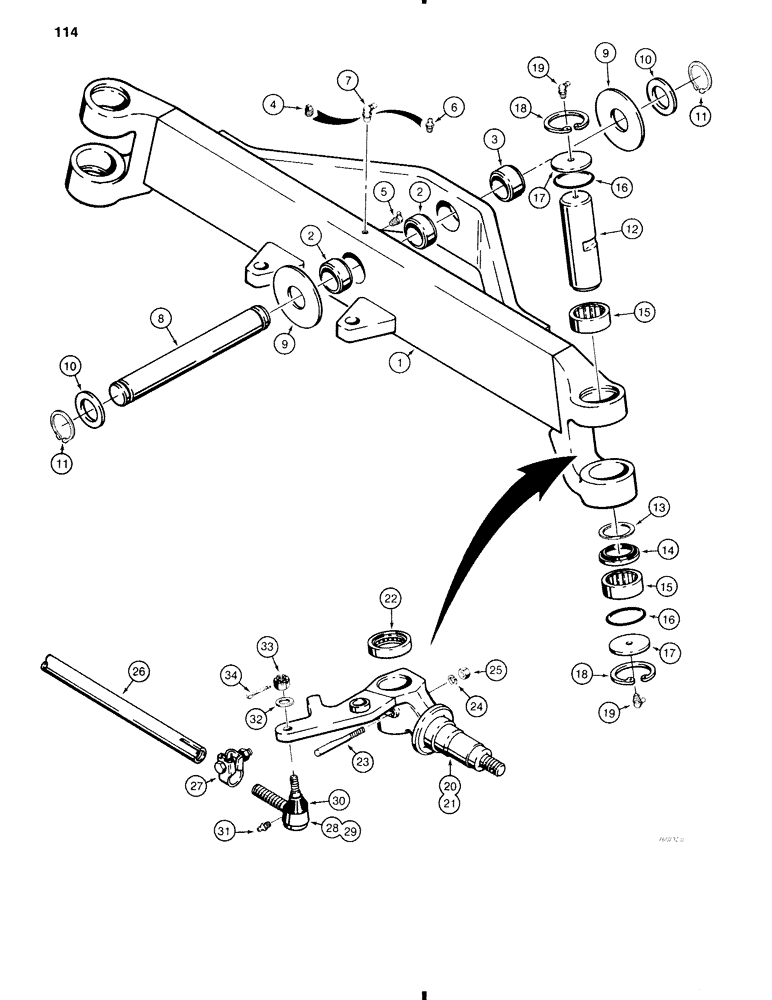

Запчасти Case 586C (114) - REAR AXLE AND SPINDLES (27) - REAR AXLE SYSTEM

1

D18450

AXLE

- rear, weldment on ends D69359 R.H., Includes: Ref. 2 - 5

1шт.

2

D61241

BUSHING,44.68mm ID x 57.15mm OD x 23.88mm L

- axle

2шт.

3

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- axle

1шт.

4

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT, used on top of axle when grease fitting is located on rear of axle, if used

1шт.

5

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, used on rear of axle with plug in top of axle, if used

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used on top of axle when no other grease fitting or plug is used, if used

1шт.

7

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 90 degree, 1/8" NPT, used on top of axle when no other grease fiting or plus is used, if used

1шт.

8

D64171

PIN,44.45mm OD x 352.55mm L

- axle pivot

1шт.

9

D61076

WASHER,46mm ID x 114mm OD x 4.78mm Thk

- spacer, large OD

1шт.

10

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- spacer, small OD

2шт.

11

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

12

D72337

PIN,50.8mm OD x 168.91mm L

KING PIN - spindle

2шт.

13

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

THRUST WASHER - bearing

2шт.

14

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

OIL SEAL - bearing

2шт.

15

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

ROLLER BEARING - king pin

4шт.

16

A23904

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

-139, 90 Duro, 2.175" ID x .103" Thk, King pin

4шт.

17

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER - king pin

4шт.

18

A27463

SNAP RING,2.375", Int, #237

King pin 2.375", Int, #237

4шт.

19

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

GREASE FITTING - 45º, 1/8" NPT, king pin

4шт.

20

D86343

SPINDLE

- left-hand

1шт.

21

D86344

SPINDLE

- right-hand

1шт.

22

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

- spindle

2шт.

23

D57486

PIN

- threaded, king pin lock

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

2шт.

D73398

ROD

TIE ROD ASSEMBLY - rear axle, Includes: Ref. 26 - 31

1шт.

26

D73397

TIE-ROD,7/8” ID x 1.5” OD x 42.1” L

- tie rod

1шт.

27

D73799

CLAMP

- tie rod, includes hardware

2шт.

28

D71713

END

BALL JOINT - tie rod, right-hand, without grease fitting, no longer used, order D88491 ball joint

1шт.

28

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, right-hand, with grease fitting

1шт.

29

D71714

BALL JOINT

- tie rod, left-hand, without grease fitting, no longer used, order D88492 ball joint

1шт.

29

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

- tie rod, left-hand, with grease fitting, Includes: Ref. 30 and 31

1шт.

30

N7681

BOOT

COVER - dust, left-hand and right-hand ball joints

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, D88491 and D88492 ball joints

1шт.

32

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

- flat, 5/8", special

1шт.

33

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8" - 18 NF

2шт.

34

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.
