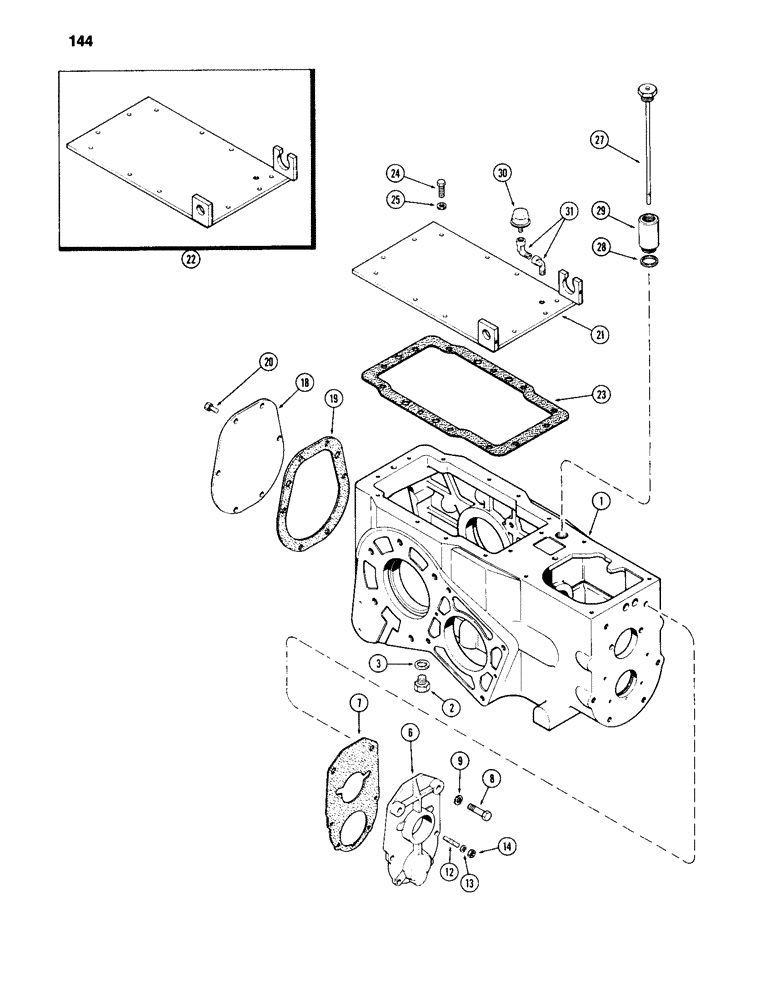

Запчасти Case 586C (144) - TRANSMISSION HOUSING, TRANSAXLE, PRIOR TO TRANSMISSION SERIAL NUMBER 10256058 (21) - TRANSMISSION

1

A51952

SPARE PART

HOUSING - transmission

1шт.

2

A140222

PLUG

- drain, transmission housing

1шт.

3

A58608

GASKET

- drain plug

1шт.

6

A51953

COVER

- transmission housing, rear

1шт.

7

G46849

GASKET

- rear cover to transmission housing

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

- cover, top, 1/2 x 1" NC hex

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

A29717

STUD

- cover, center, 3/8" NC-NF x 1-1/2"

2шт.

12

G10710

STUD

- cover, bottom, 3/8" NC-NF x 1-3/4"

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

129-123

NUT,3/8"-24, G5

4шт.

18

A39105

COVER

- transmission housing, front

1шт.

19

G10447

GASKET

- front cover to transmission housing

1шт.

Production housing may not have a cover gasket. If rear housing cover is removed, install a gasket prior to reassembly.

1шт.

20

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

21

A154563

COVER

- transmission housing, top (Transmission serial no. 10215484 through 10256057)

1шт.

22

A142559

COVER

- transmission housing, top (Prior to transmission serial no. 10215484)

1шт.

23

A152450

GASKET

- top cover to transmission housing (Replaces G10941)

1шт.

24

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- cover, 3/8 x 1" NC hex

10шт.

25

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- cover bolt, 3/8 x 3/4 x 1/32" hardened (9.52 x 19.05 x 0.79 mm)

10шт.

27

A146371

DIPSTICK

- oil gauge

1шт.

28

A38660

GASKET

- dipstick

1шт.

29

A39322

TUBE

- dipstick and oil filler

1шт.

30

A27173

BREATHER

- transmission oil

1шт.

31

221-402

ELBOW,45 Degree, 1/4"-27, NPT

- breather to cover, 1/4" PT, 45 degrees

2шт.
