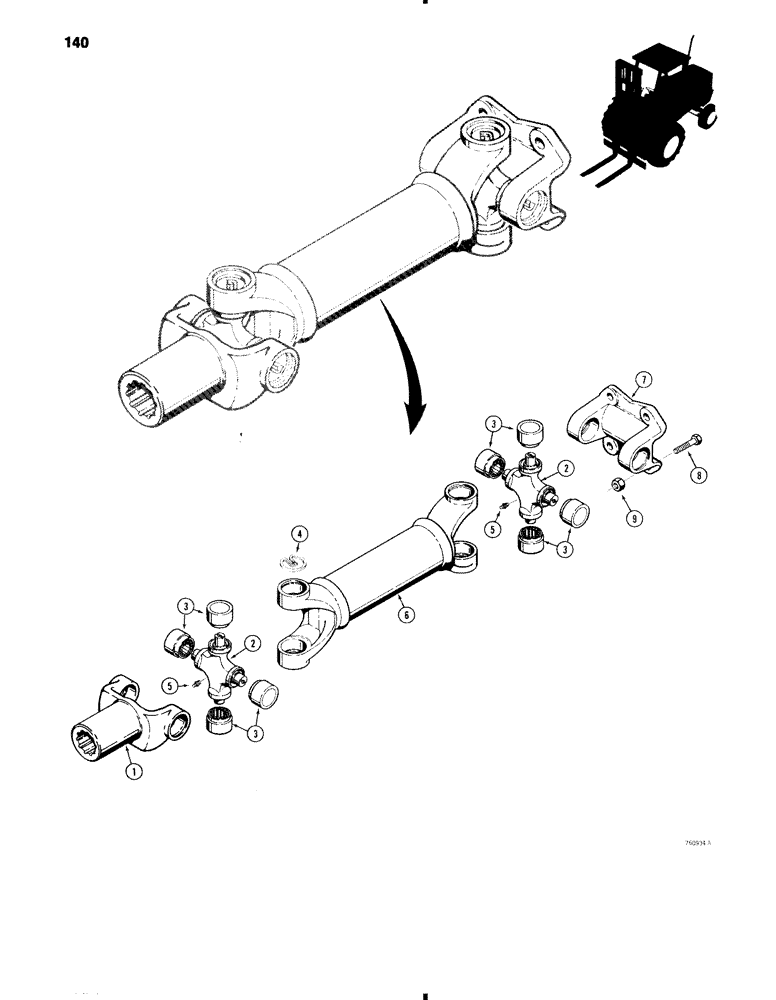

Запчасти Case 586C (140) - DRIVE SHAFT (21) - TRANSMISSION

D73777

DRIVE SHAFT

ASSEMBLY - forklift, Includes: Ref. 1 - 7

1шт.

1

D75847

YOKE

- end

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

4

11256

SNAP RING

- retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF

1шт.

6

NSS

NOT SOLD SEPARAT

DRIVE SHAFT - forklift

1шт.

7

W13668

YOKE

- flanged

1шт.

8

114-263

BOLT

- hex head, 3/8" - 24 NF x 1-1/8", grade 8, if used

4шт.

8

114-266

BOLT,Hex, 3/8" - 24 x 1", Gr 8, Full Thd

If used Hex, 3/8"-24 x 1", G8, Full Thd

4шт.

9

131-181

LOCK NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8" - 24 NF, used with 1-1/8" bolts

4шт.

9

80855

NUT,Hex, 3/8" - 24

NUT - hex, self-locking, 3/8" - 24 NF, used with 1" bolts

4шт.
