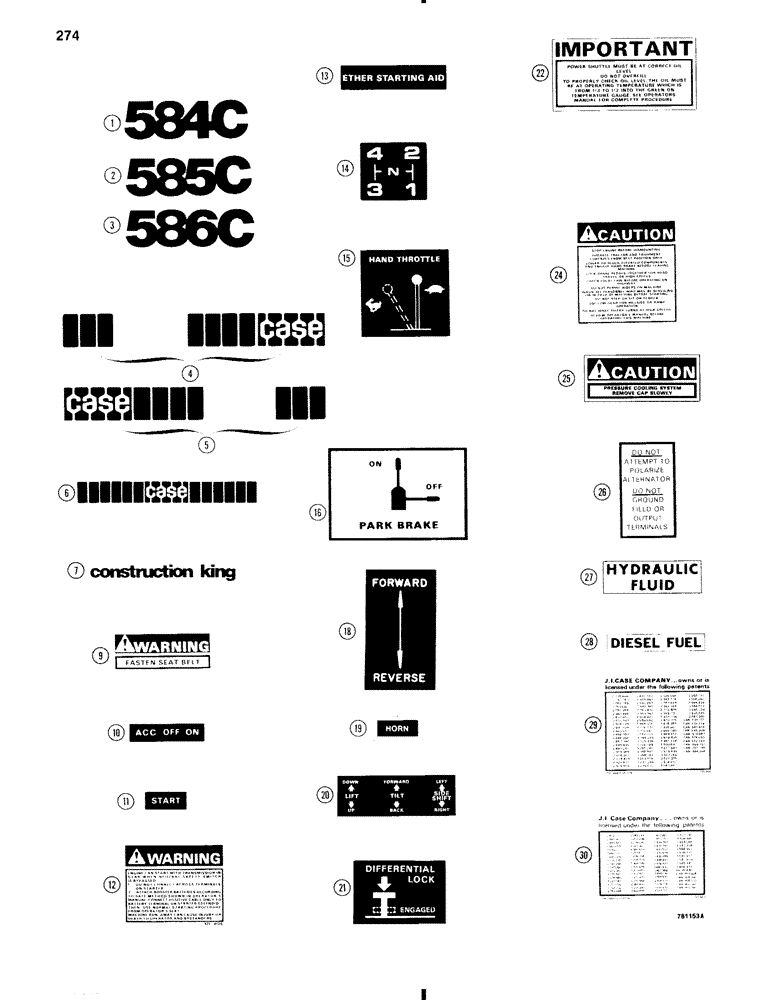

Запчасти Case 586C (274) - DECALS, USED BEFORE SERIAL NUMBER 9000008 (90) - PLATFORM, CAB, BODYWORK AND DECALS

D75872

KIT

- decal, 584C, 585C and 586C, before sn 9000008, Includes: Ref. 1 - 30 and Ref. 31 - 46 on Figure 276

1шт.

1

321-3353

DECAL

- 584C, if used

2шт.

2

321-3354

DECAL

- 585C, if used

2шт.

3

321-3355

DECAL

- 586C, if used

2шт.

4

321-3379

DECAL

- Case, with tread marks, left-hand

1шт.

5

321-3380

DECAL

- Case, with tread marks, right-hand

1шт.

6

321-3381

DECAL

- Case, with tread marks, front

1шт.

7

321-3231

DECAL

- construction king

1шт.

8

D55216

PAD,2" x 9"

STRIP - non-skid, floor of operator's compartment, shown in Figure 256

6шт.

9

321-3060

DECAL

- fasten seat belt

1шт.

10

321-3402

DECAL

- key switch

1шт.

11

321-3401

DECAL

- start

1шт.

12

321-4126

DECAL

- warning, jump start

1шт.

13

321-2435

DECAL

- ether starting aid

1шт.

14

321-3904

DECAL

- shift pattern

1шт.

15

321-3907

DECAL

- hand throttle

1шт.

16

321-2066

DECAL

- parking brake

1шт.

17

RESERVED

1шт.

18

321-2145

DECAL

- shuttle lever

1шт.

19

321-3294

DECAL

- horn

1шт.

20

321-3902

DECAL

- control

1шт.

21

321-1646

DECAL

- differential lock

1шт.

22

321-3882

DECAL

- oil check

1шт.

23

RESERVED

1шт.

24

321-3903

DECAL

- instruction

1шт.

25

321-3061

DECAL

- warning, pressure cap

1шт.

26

321-1061

DECAL

- alternator

1шт.

27

321-229

DECAL

- hydraulic fluid

1шт.

28

321-230

DECAL

- diesel fuel

1шт.

29

321-246

DECAL

- patent, tractor

1шт.

30

321-663

DECAL

- patent, equipment

1шт.
