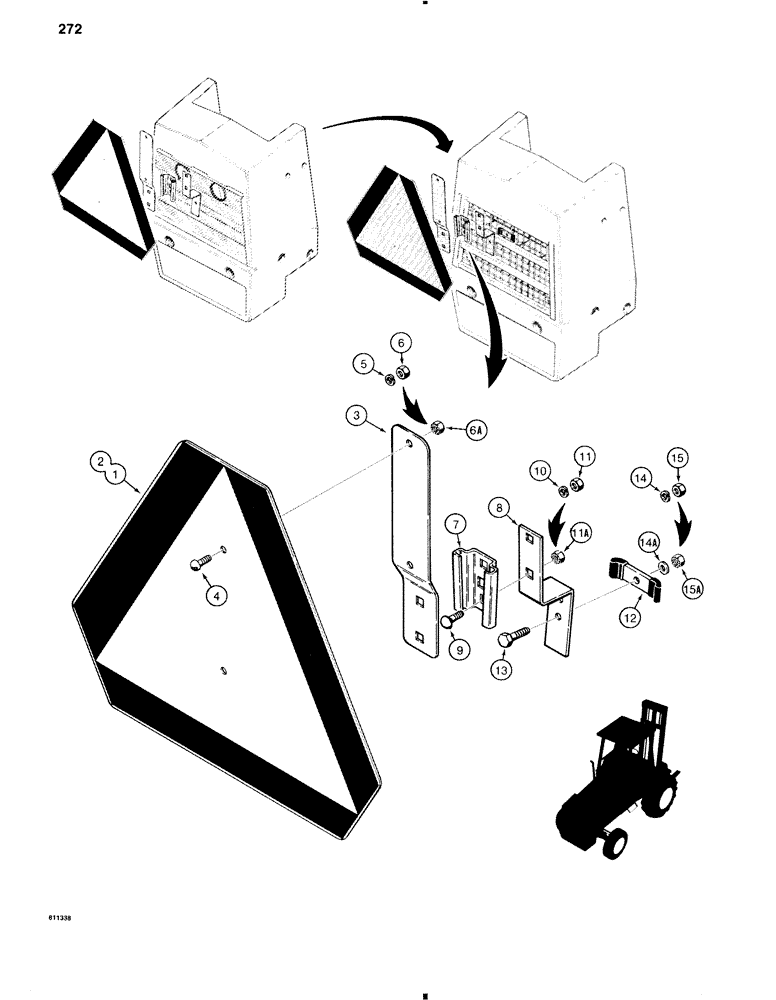

Запчасти Case 586C (272) - SLOW MOVING VEHICLE EMBLEM (90) - PLATFORM, CAB, BODYWORK AND DECALS

D59450

RING

EMBLEM ASSEMBLY - SMV, riveted construction, replaces bolted construction, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

2

321-1751

DECAL

- emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem mounting

1шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head, No. 10 - 24 NC x 1/2", plated

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, if used

2шт.

6a

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - includes external tooth lock washer, No. 10 - 24 NC, plated, if used

2шт.

7

A59457

BRACKET

SOCKET - emblem mounting

1шт.

8

D73260

BRACKET

-, Serial Range: socket-grille

1шт.

9

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - round head, 5/16" - 18 NC x 3/4", plated

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

2шт.

11a

193-1009

NUT,Keps, w/LW, 5/16"-18

- includes external tooth lock washer, 5/16" - 18 NC, plated, if used

2шт.

12

D33316

CLAMP

- bracket to grille, used only with wire type grille

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1-2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , If used 5/16"

1шт.

14a

195-103

WASHER,5/16"

- flat, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

1шт.

15a

193-1009

NUT,Keps, w/LW, 5/16"-18

- includes external tooth lock washer, 5/16" - 18 NC, plated, if used

2шт.
