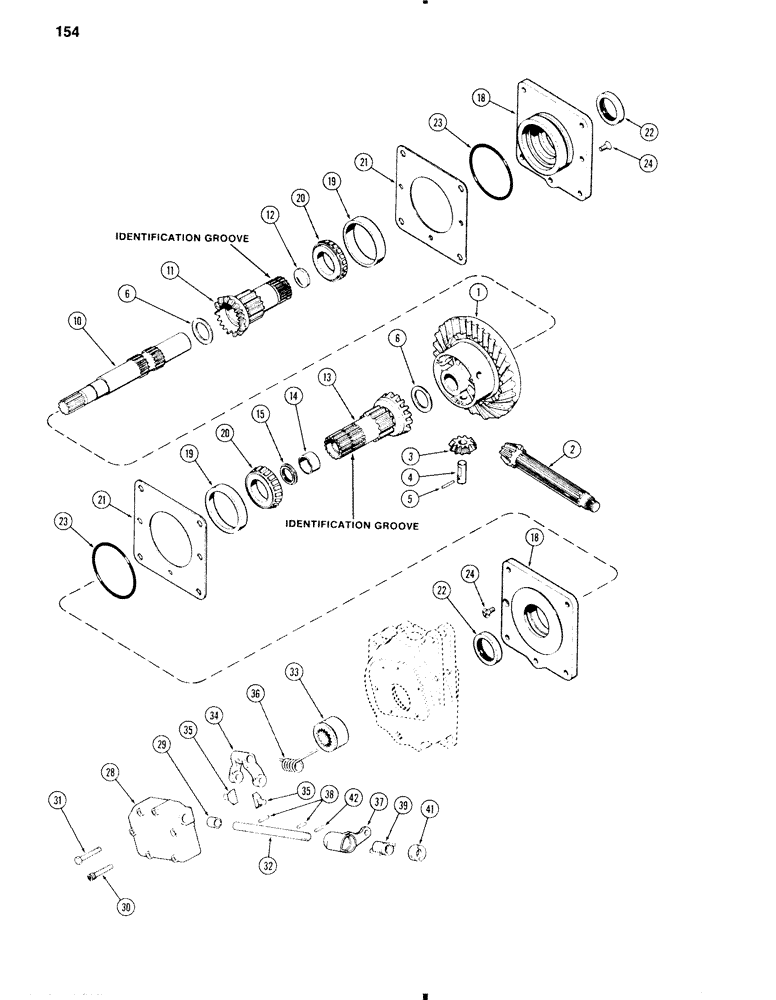

Запчасти Case 585C (154) - DIFFERENTIAL AND LOCK, TRANSAXLE (27) - REAR AXLE SYSTEM

A50996

GEAR, BEVEL

PINION AND RING GEAR - (Matched set), Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (rivet type)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel 12" long (304.8 mm)

1шт.

3

A142676

PINION

GEAR - pinion

3шт.

4

A146541

PIN

- pinion gear

3шт.

5

A140705

PIN

- 3/16 x 2" groove (4.76 x 50.8 mm)

3шт.

6

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, ring gear, 0.089" (2.26 mm)

1шт.

Washer - If dealer is looking for the shim that is referred to in the Service Manual, the part number is A29338.

1шт.

6

A39007

WASHER

- thrust, ring gear, 0.094" (2.40 mm)

1шт.

6

A39008

WASHER

- thrust, ring gear, 0.099" (2.52 mm)

1шт.

6

A39009

WASHER

- thrust, ring gear, 0.104" (2.66 mm)

1шт.

6

A39010

WASHER

- thrust, ring gear, 0.109" (2.78 mm)

1шт.

6

A39011

WASHER

- thrust, ring gear, 0.119" (3.04 mm)

1шт.

10

A144266

SHAFT

- cross

1шт.

11

A144337

GEAR

ASSEMBLY - side, right hand (Identification groove on spline gear), Includes: Ref. 12

1шт.

12

A29902

PLUG

- RH side gear, 1-5/8" expansion (41.28 mm)

1шт.

13

A144339

GEAR

ASSEMBLY - side, left hand (Identification groove on spline gear), Includes: Ref. 14

1шт.

14

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- LH side gear, 1-3/8 x 1-9/16 x 13/16" (34.93 x 39.69 x 20.64 mm)

1шт.

15

A49795

OIL SEAL

SEAL - oil, LH side gear, 1-3/8 x 1-5/8 x 3/16" (34.93 x 41.28 x 4.76 mm)

1шт.

18

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 19

2шт.

19

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, 4-11/32" OD (110.33 mm)

1шт.

20

A30114

CONE

- bearing, side gear, 2-1/4" ID (57.15 mm)

2шт.

21

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

21

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

21

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

22

A39273

OIL SEAL

- oil, carrier, 2-1/4 x 3 x 1/2" (57.15 x 76.2 x 12.7 mm)

2шт.

23

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- carrier seal, 5 x 5-1/4 x 1/8" (127 x 133.35 x 3.18 mm)

2шт.

24

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- carrier to transmission housing, 3/8-16 x 1" flat head, slotted

2шт.

28

A35923

HOUSING

COVER ASSEMBLY - lock (on LH brake housing), Includes: Ref. 29

1шт.

29

A35925

BUSHING

- cover, 5/8 x 3/4 x 3/4" (15.88 x 19.05 x 19.05 mm)

1шт.

30

61-536

HEX SOC SCREW,5/16"-18 x 2 1/4"

SCREW - cover, 5/16 x 2-1/4" NC hex, socket head

1шт.

31

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5шт.

32

A148547

SHAFT

- actuating, 11-5/32" long (283.37 mm)

1шт.

33

A142029

COLLAR

- differential lock

1шт.

34

A38749

LEVER

- collar throw-out

1шт.

35

A65101

FINGER

S - lever to collar (Replaces A38750)

2шт.

36

A156559

SPRING

- throwout lever (Replaces A35933)

1шт.

37

A148426

LEVER

- actuating

1шт.

38

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Levers to shaft (4.76 x 25.4 mm) 3/16" x 1", Slotted

2шт.

39

A36446

SPRING

- actuating lever

1шт.

41

A148134

RETAINER

- actuating lever spring (with 2 holes)

1шт.

42

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Retainer to shaft (4.76 x 31.75 mm) 3/16" x 1 1/4", Slotted

1шт.
