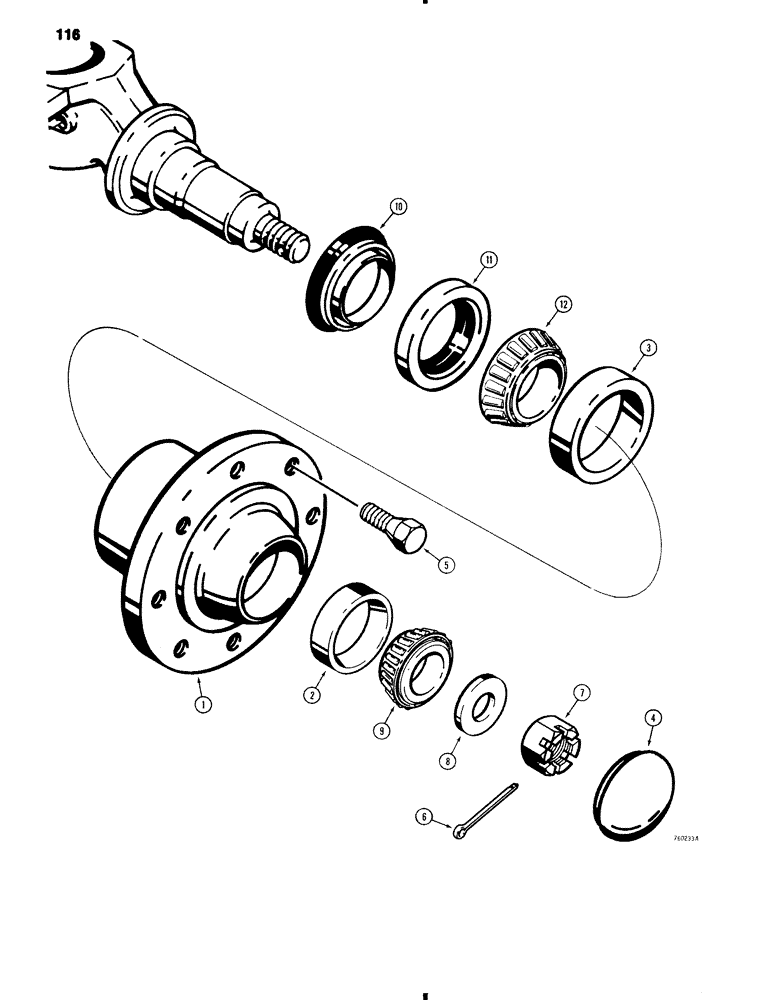

Запчасти Case 585C (116) - REAR WHEEL HUB AND BEARINGS (27) - REAR AXLE SYSTEM

A66759

HUB

ASSEMBLY - rear wheel, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB - rear wheel

1шт.

2

G15214

BEARING CUP

CUP - outer, tepered roller bearing

1шт.

3

A61446

BEARING CUP

CUP - inner, tapered roller bearing

1шт.

4

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel retaining

16шт.

6

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

7

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, 1-1/8" - 12 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- flat, 1-1/8"

2шт.

9

G15215

ROLLER BEARING

TAPERED ROLLER BEARING - outer

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- spindle

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- hub

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

TAPERED ROLLER BEARING - inner

2шт.

B93222

KIT

wheel bearing, consists of: one each Ref. 2 cup, 3 cup, 9 cone, 10 seal, 11 seal and 12 cone, one kit per wheel

1шт.
