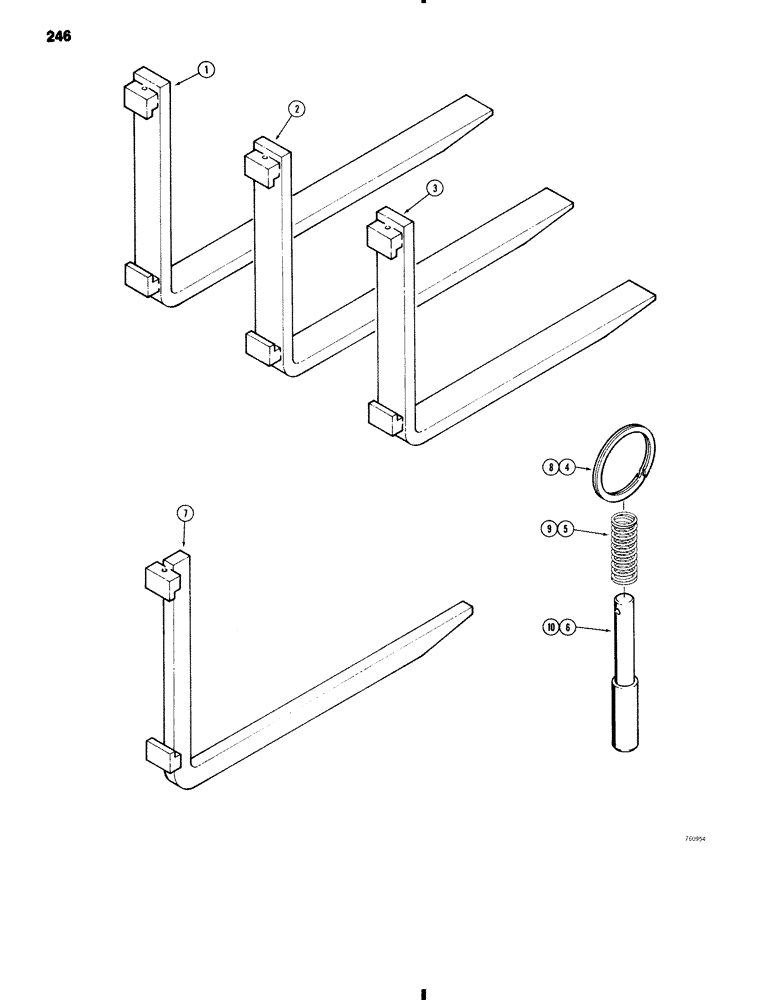

Запчасти Case 585C (246) - FORKS, PALLET AND LOGGING FORKS, CEMENT BLOCK FORKS (83) - TELESCOPIC SINGLE ARM

1

D10464

FORK

- pallet and logging, 48" (1219 mm) length, 584C

2шт.

1

D36809

FORK

- pallet and logging, 48" (1219 mm) length, 585C

2шт.

1

D55845

FORK

- pallet and logging, 48" (1219 mm) length, 586C

2шт.

2

D10465

TINE

FORK - pallet and logging, 42" (1066 mm) length, 584C

2шт.

3

D10466

FORK

- pallet and logging, 36" (914 mm) length, 584C, Includes: Ref. 4 - 6

2шт.

4

D41289

RING

- pin retaining, all forks

1шт.

5

D52904

VALVE SPRING

SPRING - tension, pin, all forks

1шт.

6

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork positioning, all forks

1шт.

7

D10653

FORK

- concrete block, 42" (1066 mm) lenght, 584C

6шт.

7

D43690

FORK

- concrete block, 48" (1219 mm) length, 584C

6шт.

7

D41220

FORK

- concrete block, 42" (1066 mm) length, 585C

6шт.

7

D43691

TINE

FORK - concrete block, 48" (1219 mm) length, 585C

6шт.

7

D55846

FORK

- concrete block, 42" (1066 mm) length, 586C

6шт.

7

D55847

FORK

- concrete block, 48" (1219 mm) length, 586C, Includes: Ref. 8 - 10

6шт.

8

D41289

RING

- pin retaining, all forks

1шт.

9

D52904

VALVE SPRING

SPRING - tension, pin, all forks

1шт.

10

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork positioning, all forks

1шт.
