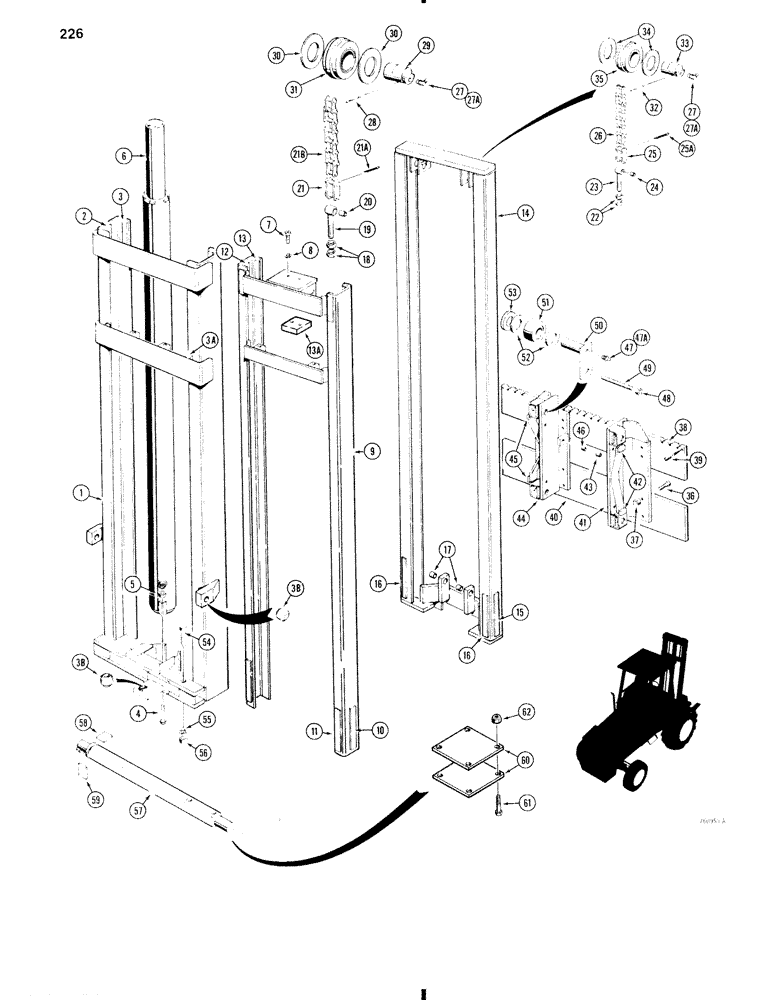

Запчасти Case 585C (226) - 21-1/2 FOOT (6.5 M) MAST FOR 585C (83) - TELESCOPIC SINGLE ARM

D18787

MAST - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 62

1шт.

1

D75939

FRAME - outer, Includes: Ref. 2 - 3B

1шт.

2

D55411

STRIP

WEAR PLATE - 1/8" thick x 6" (3 mm x 152 mm)

2шт.

3

D55409

STRIP

WEAR PLATE - 3/16" x 6" (5 mm x 152 mm)

4шт.

3a

D47895

WEAR PAD

WEAR PLATE - 5/16" x 4-1/2" (8 mm x 114 mm)

2шт.

3b

D40843

BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L

BEARING - self-aligning

3шт.

4

113-353

BOLT,Hex, 7/16" - 14 x 6", Gr 5

7/16"-14 x 6", G5

1шт.

5

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

6

N7643

CYLINDER

- lift, parts list Figure 190

1шт.

7

165-166

HEX SOC SCREW,Prev Torque, 1/2" - 20 x 2"

SCREW - hex socket head, 1/2" - 20 NF x 2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

D74410

FRAME ASSY

FRAME - center, Includes: Ref. 10 - 13

1шт.

10

D55412

STRIP

WEAR PLATE - 1/8" thick x 10" (3 mm x 254 mm)

2шт.

11

D55410

STRIP

WEAR PLATE - 3/16" thick x 10" (5 mm x 254 mm)

4шт.

12

D55411

STRIP

WEAR PLATE - 1/8" x 6" (3 mm x 152 mm)

2шт.

13

D55409

STRIP

WEAR PLATE - 3/16" thick x 6" (5 mm x 152 mm)

4шт.

13a

D74412

PLATE

- spacer

1шт.

14

D74411

FRAME

- inner, Includes: Ref. 15 - 17

1шт.

15

D27362

WEAR PAD

WEAR PLATE - 1/8" thick x 10" (3 mm x 254 mm)

2шт.

16

D27365

PAD

WEAR PLATE - 3/16" thick x 10" (5 mm x 254 mm)

4шт.

17

D39476

BUSHING

- chain anchor, no longer available, order N6878 link

2шт.

18

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF

4шт.

19

N6877

BOLT

- inner chain, Includes: Ref. 20

2шт.

19

D36575

EYEBOLT

- inner chain, order N6877 and N6878, Includes: Ref. 20

2шт.

20

D39476

BUSHING

- eyebolt, D36575, no longer available, order N6878 link

1шт.

21

N6878

CHAIN LINK

LINK - connecting, inner chain, Includes: Ref. 21A

4шт.

Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.

1шт.

21

D36579

LINK

- connecting, order N6878 link, Includes: Ref. 21A

4шт.

Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.

1шт.

21a

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

21b

D73665

CHAIN (AG)

CHAIN - inner, 95 links

2шт.

22

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF

4шт.

23

N6011

BOLT

- outer chain, Includes: Ref. 24

2шт.

23

D26200

BOLT

- outer chain, order N6010 and N6011, Includes: Ref. 24

2шт.

24

D26196

BUSHING

- eyebolt, D26200, no longer available, order N6010 link

1шт.

25

N6010

LINK,50.749mm Pitch

- connecting, outer chain, Includes: Ref. 25A

4шт.

Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.

1шт.

25

D32583

LINK

- connecting, order N6010 link, Includes: Ref. 25A

4шт.

Connecting links cannot be used as repair links and can only be added to the end of chain. Any damaged links will require replacement of chain.

1шт.

25a

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

26

D74408

CHAIN (AG)

CHAIN - outer, 111 links

2шт.

27

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

GREASE FITTING - 67-1/2 degree, 3/16" drive

2-4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

27a

211-5

BALL,3/16" Dia

- steel, 3/16", if used, not shown

2шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

28

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

29

D36584

PIN

- guide wheel, inner chain

2шт.

30

D36582

WASHER

THRUST WASHER - inner wheel

4шт.

31

D39482

SUPPORT,1.75" ID x 4.3" OD x 1.51"

WHEEL - guide, inner chain

2шт.

32

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

2шт.

33

D87070

PIN

- wheel, service, includes Refs. 27 and 27A

2шт.

34

60944

THRUST WASHER

THRUST WASHER - outer wheel

4шт.

35

D32588

SPROCKET ASSY.

WHEEL - guide, requires grease fitting, if used, outer chain

2шт.

35

D87069

SPROCKET ASSY.

WHEEL - guide, sealed, if used, outer chain

2шт.

36

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

SCREW - hex socket head, 1/2" - 13 NC x 1-3/4"

16шт.

37

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, lock, 1/2"-13 NC

16шт.

38

D74406

LARGE PLATE

BACK PLATE - upper, 60" long

1шт.

39

138-2050

PIN,7/16" x 2", Coiled

2шт.

40

D74405

PLATE

BACK PLATE - lower, 60" long

1шт.

41

D55405

SHEET

CARRIAGE - right-hand, Includes: Ref. 42 and 43

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

42

D55407

WEAR PAD

WEAR PLATE - bronze

2шт.

43

D26196

BUSHING

- chain anchor, no longer available, order N6010 link

1шт.

44

D55406

SHEET

CARRIAGE - left-hand, Includes: Ref. 45 and 46

1шт.

Carriages must be aligned and drilled at time of installation.

1шт.

45

D55407

WEAR PAD

WEAR PLATE - bronze

2шт.

46

D26196

BUSHING

- chain anchor, no longer available, order N6010 link

1шт.

47

219-13

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight, 3/16" drive, if used

4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

47a

211-5

BALL,3/16" Dia

- steel, 3/16", if used

4шт.

Steel balls are used in some pins in place of grease fittings when sealed bearings are used.

1шт.

48

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2"-13 NC

4шт.

49

178-692

SET SCREW,Hex Soc, 1/2"-13 x 2 3/4"

- socket head, 1/2" - 13 NC x 2-3/4"

4шт.

50

D86606

AXLE

PIN - roller, service, includes Refs. 47 and 47A

4шт.

51

D52299

BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W

ROLLER - load

4шт.

52

D52298

WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk

THRUST WASHER - roller

8шт.

53

D55404

WASHER,32.16mm ID x 69.85mm OD x 6.35mm Thk

THRUST WASHER - roller

4шт.

54

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

If used, see Refs. 60-62 Hex, 1/2"-13 x 4 1/2", G5

1шт.

55

92-8

LOCK WASHER,1/2"

if used 1/2"

1шт.

56

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

1шт.

57

D75934

BAR

- trunnion

1шт.

58

D40841

LARGE PLATE

WEAR PLATE - horizontal

4шт.

59

D40840

LARGE PLATE

WEAR PLATE - vertical

4шт.

60

D88745

LARGE PLATE

PLATE - trunnion bar ends, if used, see Ref. 54

4шт.

61

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - hex head, 5/16" - 18 NC x 3", if used

8шт.

62

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

8шт.
