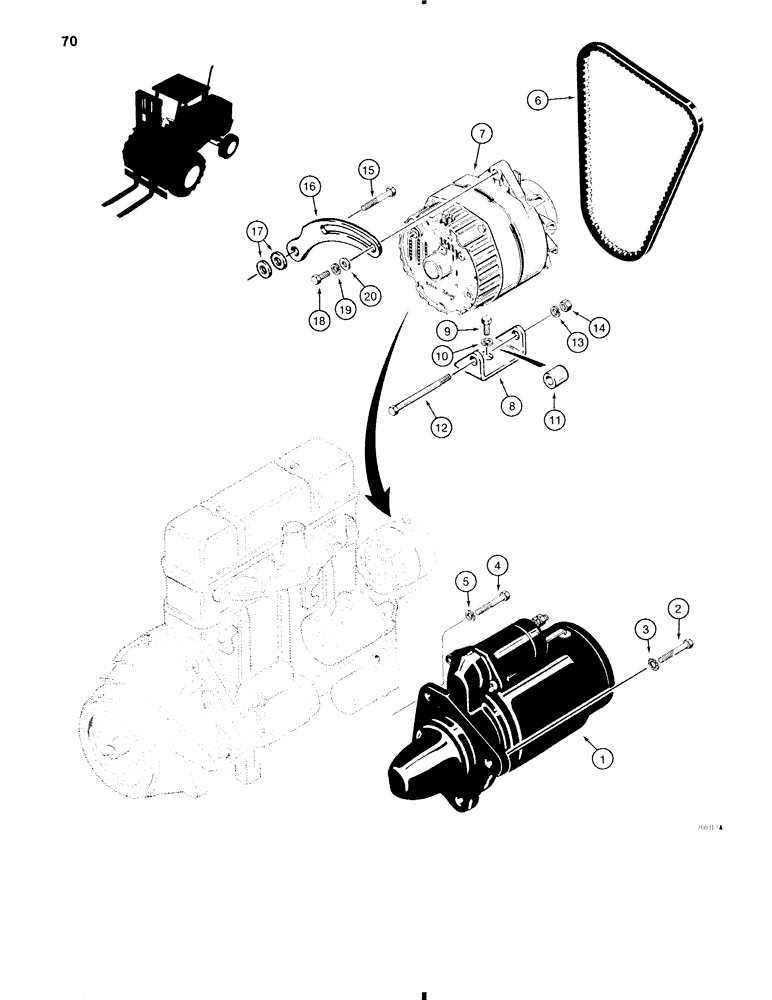

Запчасти Case 584C (070) - STARTER AND ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

R29870

STARTING MOTOR

STARTER - engine, parts list Figures 66 and 68

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

3

193-72

LOCK WASHER

- internal-external tooth lock, 3/8"

1шт.

4

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

D73446

V-BELT,0.50" W x 51.50" L

Alternator 0.50" W x 51.50" L

1шт.

7

REF

INSTRUCTION

ALTERNATOR - electrical, see Figure 60, 62, or 64 for the correct assembly and components

1шт.

8

A138246

BRACKET

- alternator mounting

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

A138247

SPACER

- alternator

1шт.

12

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

15

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

16

A139258

STRAP

- alternator adjusting

1шт.

17

195-104

WASHER,3/8"

- alternator strap, flat, 3/8"

2шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

1шт.

18

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 25 mm (8.8), if used

1шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

20

195-103

WASHER,5/16"

- flat, 5/16"

1шт.
