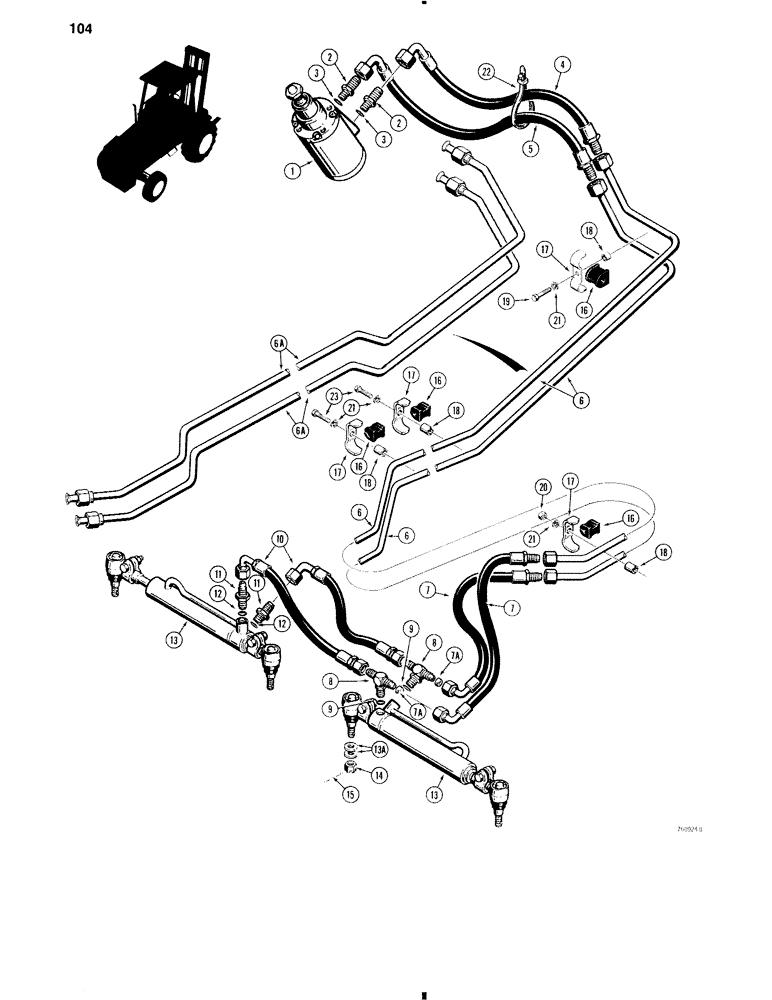

Запчасти Case 584C (104) - STEERING HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (41) - STEERING

1

REF

INSTRUCTION

CONTROL VALVE - steering, see Figure 108 for the correct assembly and components, see Figure 100 for mounting parts

1шт.

2

D76050

HARDWARE

RESTRICTOR - male, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, restrictor

1шт.

4

D69142

HOSE

- special, lower control valve port

1шт.

5

D71785

HOSE

- special, upper control valve port

1шт.

6

D69372

TUBE

- control valve to cylindlers, no longer available, order D89043 tubes

2шт.

6a

D89043

HYD TUBE,0.5" OD x 76, 13.46" L

TUBE - control valve to cylinders

2шт.

7

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- special, to steering cylinders

2шт.

7a

D76229

RESTRICTOR

- oil flow

2шт.

8

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, Includes: Ref. 9

2шт.

9

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

10

D65620

HOSE

- between cylinders, 16" (406 mm) long

2шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 12

2шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

13

REF

INSTRUCTION

CYLINDER - steering, see Figures 110 and 112 for correct assembly and components

2шт.

13a

95-10

WASHER,5/8"

- flat, 5/8"

1шт.

14

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8" - 18 NF

4шт.

15

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

4шт.

16

D67296

GROMMET

INSULATOR - rubber, tubes

8шт.

17

D68646

CLAMP

- tube, double

4шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

4шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses, at control valve

1шт.

23

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.
