Запчасти Case 584C (102) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO STEERING CONTROL VALVE (41) - STEERING

1

D84179

PUMP

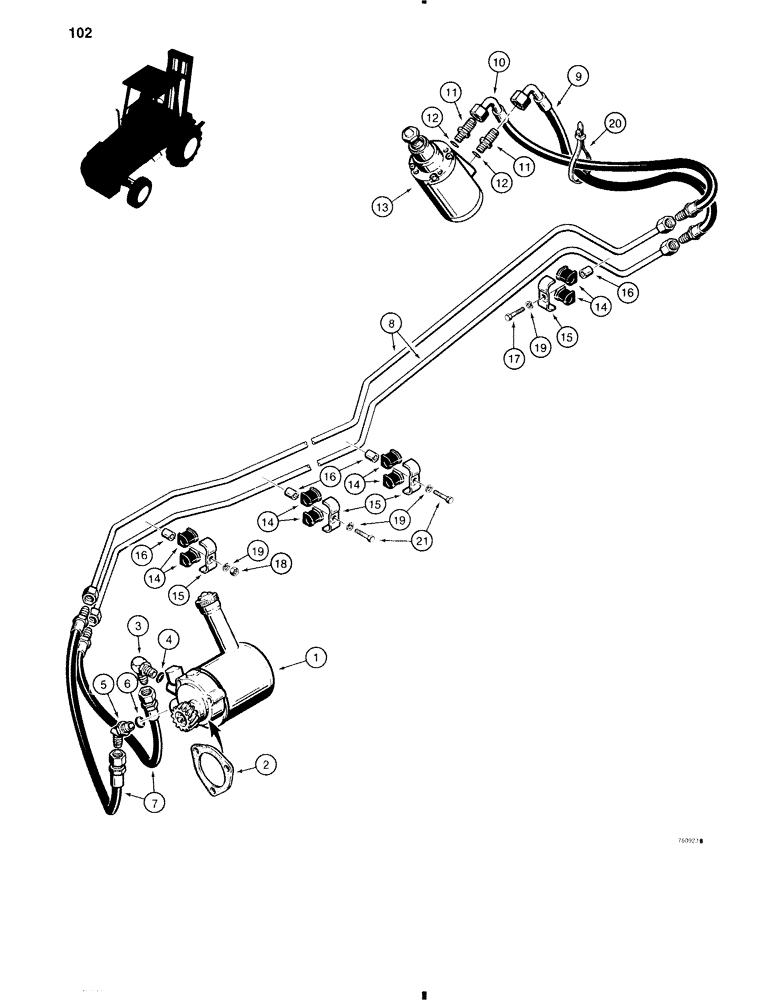

STEERING PUMP - parts list Figure 106

1шт.

D84179R

REMAN-HYD PUMP

586C

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D84179R

REMAN-HYD PUMP

585C

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

D84179R

REMAN-HYD PUMP

584C

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A30042

GASKET

- power steering pump

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 4

1шт.

5

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adjustable, Incl. Ref 6

1шт.

7

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- at steering pump, 12" (305 mm) long

2шт.

8

D75770

HYD TUBE,0.5" OD x 13.46, 76" L

TUBE - steering pump to steering control valve

2шт.

9

D69142

HOSE

- special, lower control valve port

1шт.

10

D71785

HOSE

- special, upper control valve port

1шт.

11

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, male adapter, Includes: Ref. 12

2шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, connector

1шт.

13

REF

INSTRUCTION

CONTROL VALVE - steering, see Figure 108 for the correct assembly and components, see Figure 100 for mounting parts

1шт.

14

D67296

GROMMET

INSULATOR - rubber, tube

8шт.

15

D68646

CLAMP

- tube, double

4шт.

16

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

4шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses, at control valve

1шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
