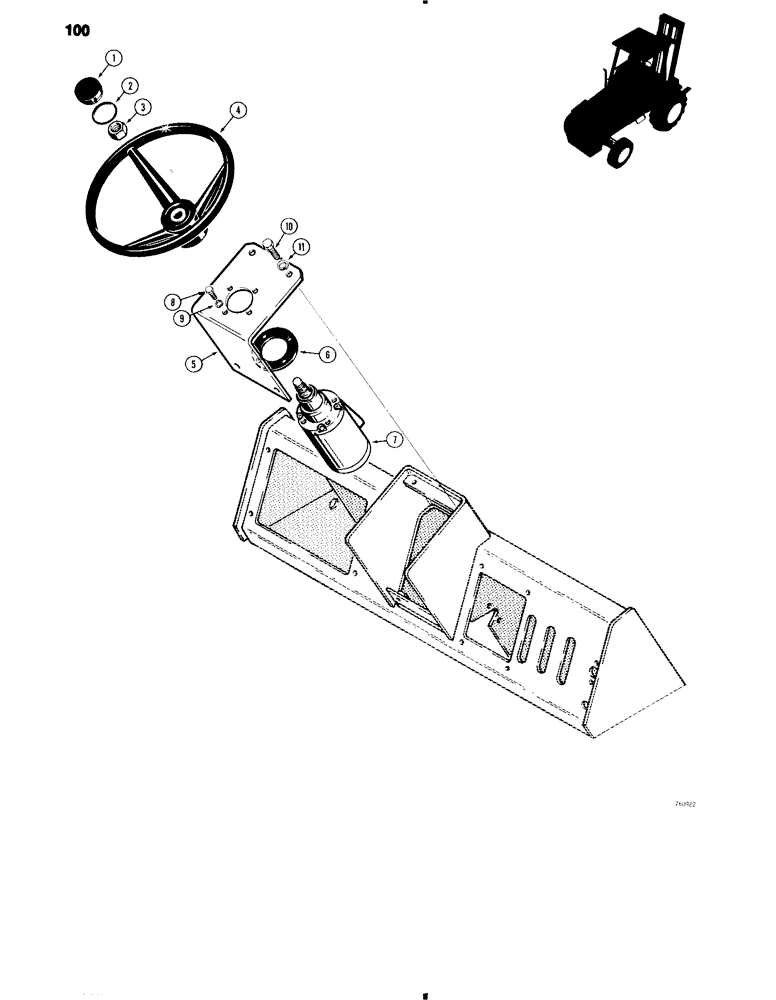

Запчасти Case 584C (100) - STEERING WHEEL AND COLUMN (41) - STEERING

1

A62210

PLUG

CAP - steering wheel nut cover

1шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- cap seal

1шт.

3

A14567

JAM NUT

- steering wheel retaining

1шт.

4

A65544

STEERING WHEEL

- Tractor

1шт.

5

R35603

LARGE PLATE

PLATE - steering valve mounting

1шт.

6

D74551

RING

- isolation

1шт.

7

REF

INSTRUCTION

CONTROL VALVE - steering, see Figure 108 for the correct assembly and components

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Control valve mounting Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Plate mounting Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.
