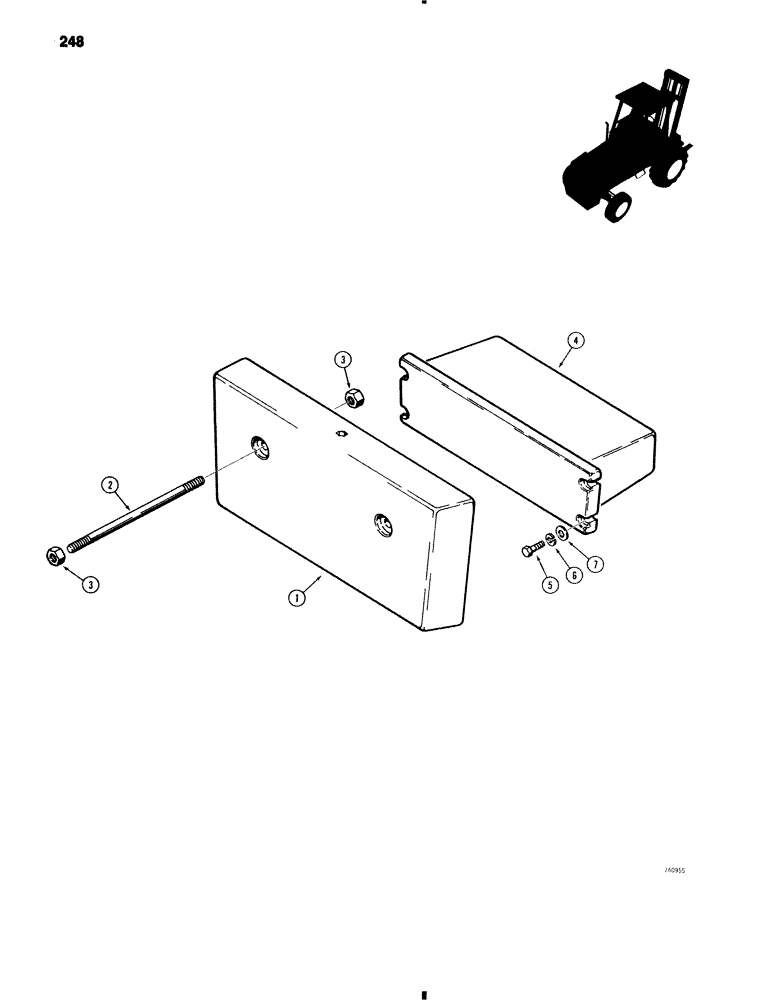

Запчасти Case 584C (248) - REAR COUNTERWEIGHTS (39) - FRAMES AND BALLASTING

1

D70038

WEIGHT

COUNTERWEIGHT - outer

1шт.

2

D70039

STUD

- 3/4" - 10 NC x 14-1/2"

2шт.

3

25-1012

NUT,3/4"-10, G5

4шт.

4

D69881

WEIGHT

COUNTERWEIGHT - inner

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

95-6

WASHER,3/8"

- flat, 3/8"

4шт.
