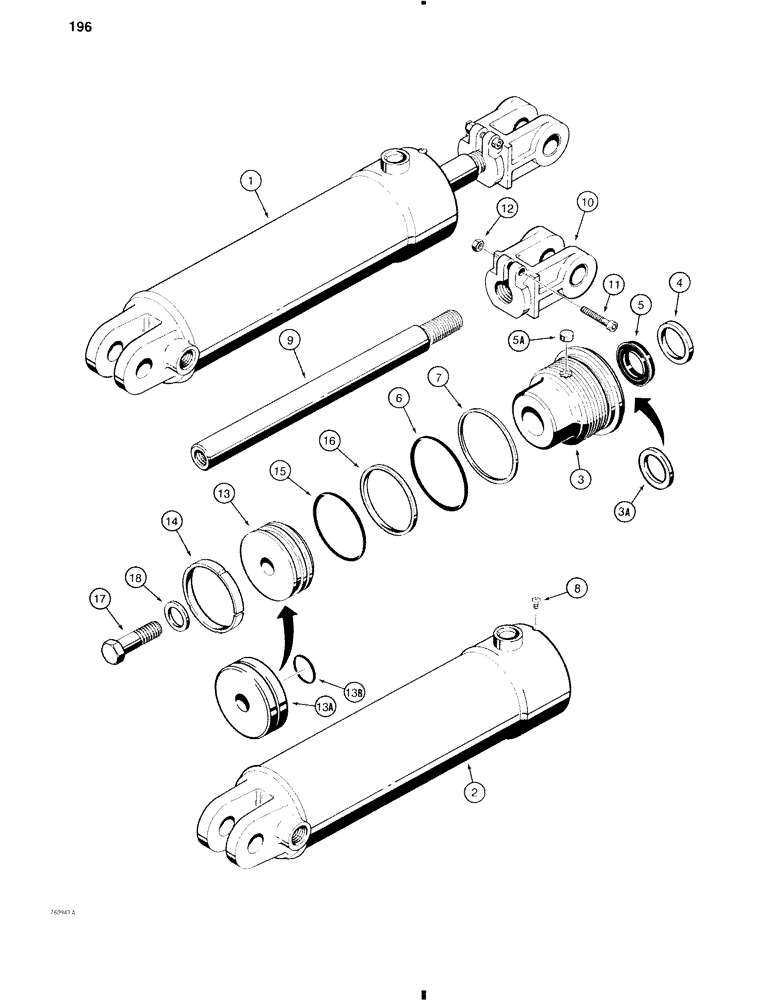

Запчасти Case 584C (196) - G34196 AND G34197 TILT CYLINDER (35) - HYDRAULIC SYSTEMS

1

G34196

CYLINDER

- hydraulic, tilt, left-hand, 3" (76 mm) ID x 10" (254 mm) stroke

1шт.

1

G34197

CYLINDER ASSY.

CYLINDER - hydraulic, tilt, right-hand, 3" (76 mm) ID x 10" (254 mm) stroke, Includes: Ref. 2 - 18

1шт.

2

G34198

TUBE,16.69" L

- G34196 cylinder right-hand

1шт.

2

G34199

TUBE,16.69" L

- G34197 cylinder left-hand

1шт.

G104244

GLAND

ASSEMBLY - cylinder, replaces glands without nylon plug, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

- piston rod, narrow, used in addition to number 5 in some glands (replaces G102569)

1шт.

Part of Seal Kit P/N G105510

1шт.

4

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105510

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, wide

1шт.

Part of Seal Kit P/N G105510

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used (Replaces G104961)

1шт.

6

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105510

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland o-ring

1шт.

Part of Seal Kit P/N G105510

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

9

G34195

ROD

- piston, 1-1/4" (32 mm) diameter

1шт.

10

G34262

CLEVIS,1" - 12

- adjustable, piston rod

1шт.

11

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 1-3/4"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

13

G34202

PISTON

- cylinder, DOUBLE groove, if used, can service with G104106

1шт.

13a

G104106

PISTON

- cylinder, SINGLE groove, if used

1шт.

Wear Ring not Serviced Separately

1шт.

13b

A59066

O-RING,1.239" ID x 1.379" OD

- small, used with Ref. 13A only

1шт.

14

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, DOUBLE groove, piston, if used

1шт.

Part of Seal Kit P/N G105510

1шт.

15

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit P/N G105510

1шт.

16

G32034

RING

SEAL - piston

1шт.

Part of Seal Kit P/N G105510

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

G105510

SEAL

KIT - seal, SINGLE or DOUBLE groove piston, Includes: Ref. 3A, 4, 5, 6, 7, 14, 15 and 16, same as G34205 plus Ref. 3A above

1шт.

Ref# 14 NOT USED for SINGLE Groove Piston

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
