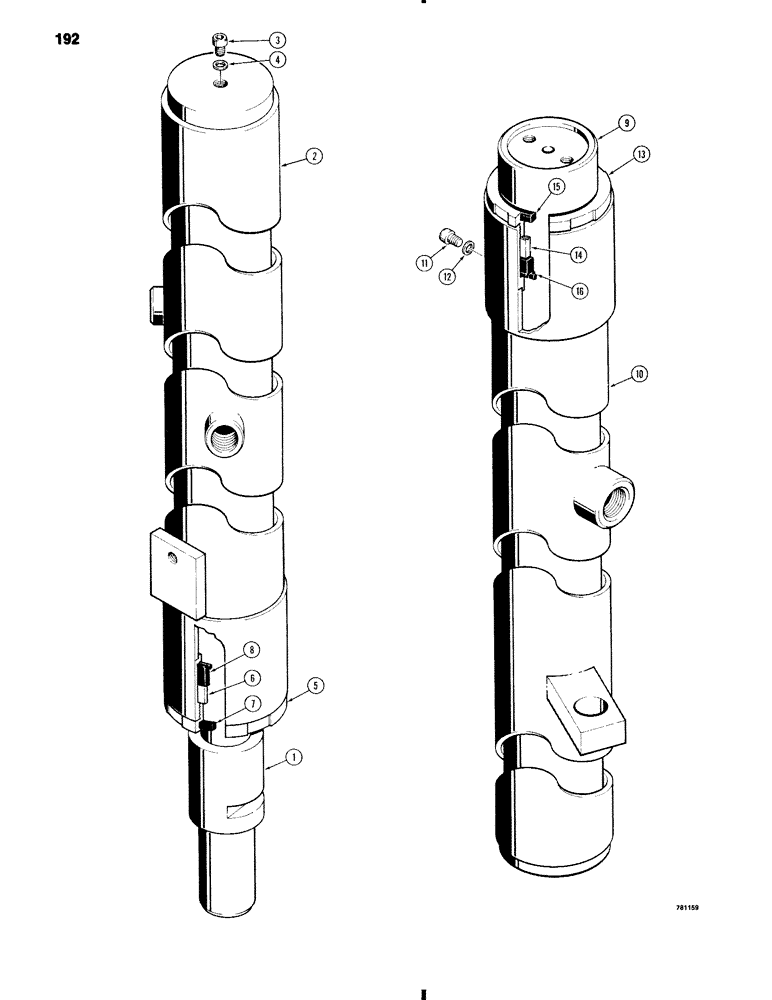

Запчасти Case 584C (192) - FREE LIFT MAST LIFT CYLINDERS, USED BEFORE MAST SERIAL NUMBER 44121 (35) - HYDRAULIC SYSTEMS

D82876

CYLINDER

- lift, center, 12 foot (3.6 m) mast, order N7647, see Figure 194

1шт.

D82904

CYLINDER

- lift, center, 14 foot (4.3 m) mast, order N7650, see Figure 194, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder, outer

1шт.

3

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - hex socket head, 1/4" - 20 NC x 3/8"

1шт.

4

D24252

WASHER

- special

1шт.

5

D82912

NUT

- packing

1шт.

6

D82913

RING

- packing

1шт.

D82910

KIT

- seal, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - split type

1шт.

8

NSS

NOT SOLD SEPARAT

RING - packing

1шт.

D82884

CYLINDER

- lift, right-hand, 12 foot (3.6 m) mast, order N7646, see Figure 194

1шт.

D82885

CYLINDER

- lift,left-hand, 12 foot (3.6 m) mast, order N7645, see Figure 194

1шт.

D82906

CYLINDER

- lift, right-hand, 14 foot (4.3 m) mast, order N7648, see Figure 194

1шт.

D82907

CYLINDER

- lift, left-hand, 14 foot (4.3 m) mast, order N7649, see Figure 194, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder, outer

1шт.

11

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - hex socket head, 1/4" - 20 NC x 3/8"

1шт.

12

D24252

WASHER

- special

1шт.

13

D82916

NUT

- packing

1шт.

14

D82917

RING

- packing

1шт.

D82911

KIT

- seal, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - split type

1шт.

16

NSS

NOT SOLD SEPARAT

RING - packing

1шт.
