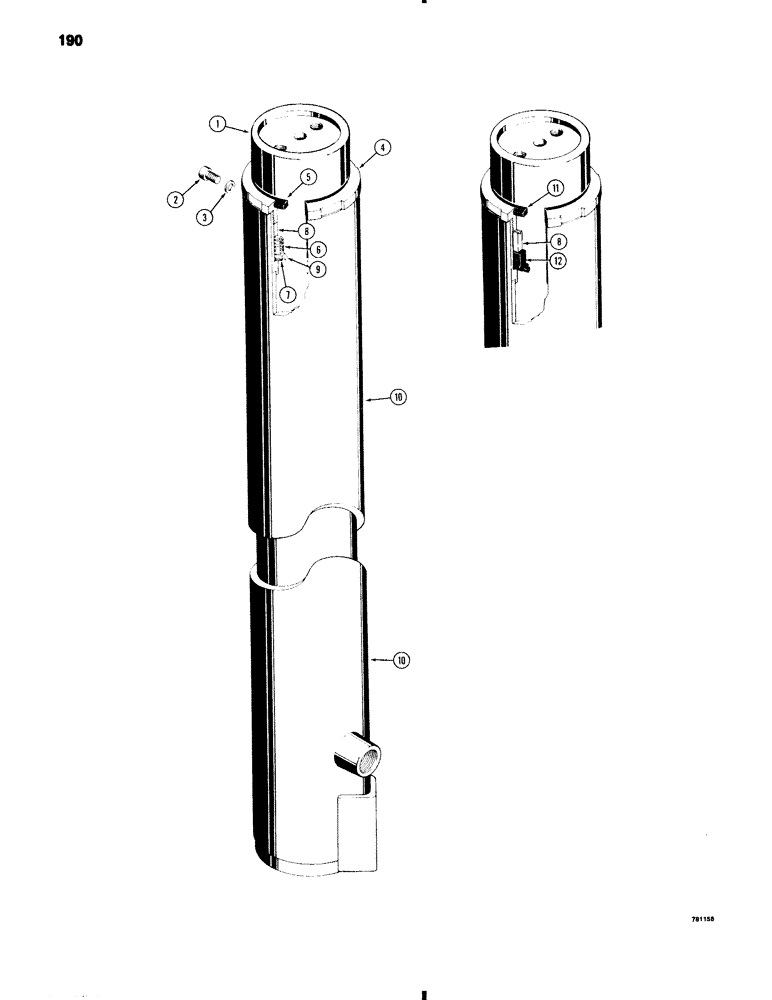

Запчасти Case 584C (190) - MAST LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

N7641

CYLINDER ASSY.

CYLINDER - lift, 4" (102 mm) ID x 62-11/16" (1592 mm) stroke, 10-1/2' (3.2 m) masts

1шт.

N7642

CYLINDER ASSY.

CYLINDER - lift, 4" (102mm)ID x 71-11/16" (1921 mm) stroke, 12' (3.6 m) masts

1шт.

N7643

CYLINDER

- lift, 4" (102 mm) ID x 85-3/16" (2164 mm) stroke, 14-1/4' (4.3 m) masts and 21-1/2' (6.5 m) masts

1шт.

N7644

CYLINDER ASSY.

CYLINDER - lift, 4" (102 mm) ID x 111-11/16" (2837 mm) stroke, 28' (6.5 m) masts, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

2

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - hex socket head, 1/4" - 20 NC x 3/8"

1шт.

3

D24252

WASHER

- special

1шт.

4

D41189

NUT

- cylinder packing

1шт.

D41188

PACKING

KIT - packing, used before mast sn 42274, order D82792, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - D41188 kit

1шт.

6

NSS

NOT SOLD SEPARAT

PACKING - V-type, D41188 kit

5шт.

7

NSS

NOT SOLD SEPARAT

SPRING - wave, D41188 kit

1шт.

8

D41190

SLEEVE

- packing, upper

1шт.

9

D75880

RING

SLEEVE - packing, lower, used before mast sn 42274

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

D82792

SEAL

KIT - packing, used on mast sn 42274 and after, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - D82792 kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING - packing, D82792 kit

1шт.
