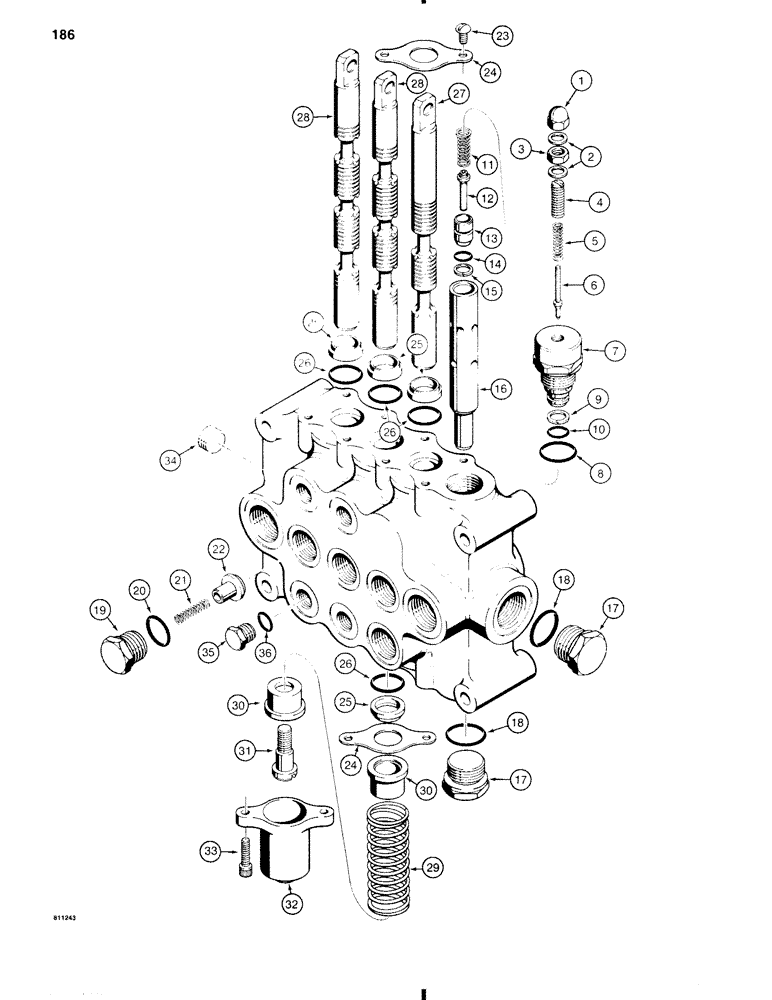

Запчасти Case 584C (186) - D120040 FORKLIFT CONTROL VALVE, *FOR USE WITH DUAL HYDRAULIC RETURN LINES (35) - HYDRAULIC SYSTEMS

D120040

PIN

CONTROL VALVE ASSEMBLY - forklift, Includes: Ref. 1 - 34

1шт.

N7488

VALVE, PRESSURE RELI

MAIN RELIEF VALVE - control valve, Includes: Ref. 1 - 16

1шт.

1

129-526

CROWN NUT,Low, 3/8" - 24

DOME NUT - 3/8" - 24 NF

1шт.

2

D32117

COPPER WASHER

WASHER, COPPER

2шт.

3

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8" - 24 NF

1шт.

4

S62325

ADJUSTMENT SCREW

ADJUSTING SCREW - main relief valve

1шт.

5

S62359

SPRING

- plunger

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

7

D75840

PLUG

BODY - relief valve

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- relief valve body

1шт.

9

D75841

OIL SEAL

BACKUP RING - internal

1шт.

10

S116070

O-RING

- internal

1шт.

11

S62536

SPRING - inner

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - relief valve

1шт.

14

N6417

O-RING,0.364" ID x 0.504" OD x 0.07"

- piston

1шт.

15

C11865

RING

- backup

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve

1шт.

17

S62127

PLUG

- valve

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

2шт.

19

S48057

PLUG

- load check valve

3шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

3шт.

21

S48065

SPRING

- load check valve

3шт.

22

S48056

VALVE POPPET

POPPET - load check valve

3шт.

23

NLS

NO LONGER SERVICED

- plate attaching, spool eye end

6шт.

24

S48043

PLATE

- end

6шт.

25

D75838

SEAL

WIPER - spool

6шт.

26

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

6шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - lift circuit

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - tilt and sideshift circuit

2шт.

29

S48046

SPRING

- spool

3шт.

30

S48044

SEAT

- spring

6шт.

31

S48045

BOLT

SCREW - spool end

3шт.

32

S48042

CAP

COVER - spool end

3шт.

33

S48058

CAPSCREW

SCREW - spool cover

6шт.

34

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" NPT, hex socket head

1шт.

35

76349

PLUG,9/16" - 18 ORB

Valve port, Incl. Ref. 36 Hex Hd, 9/16"-18 ORB

1шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, plug

1шт.
