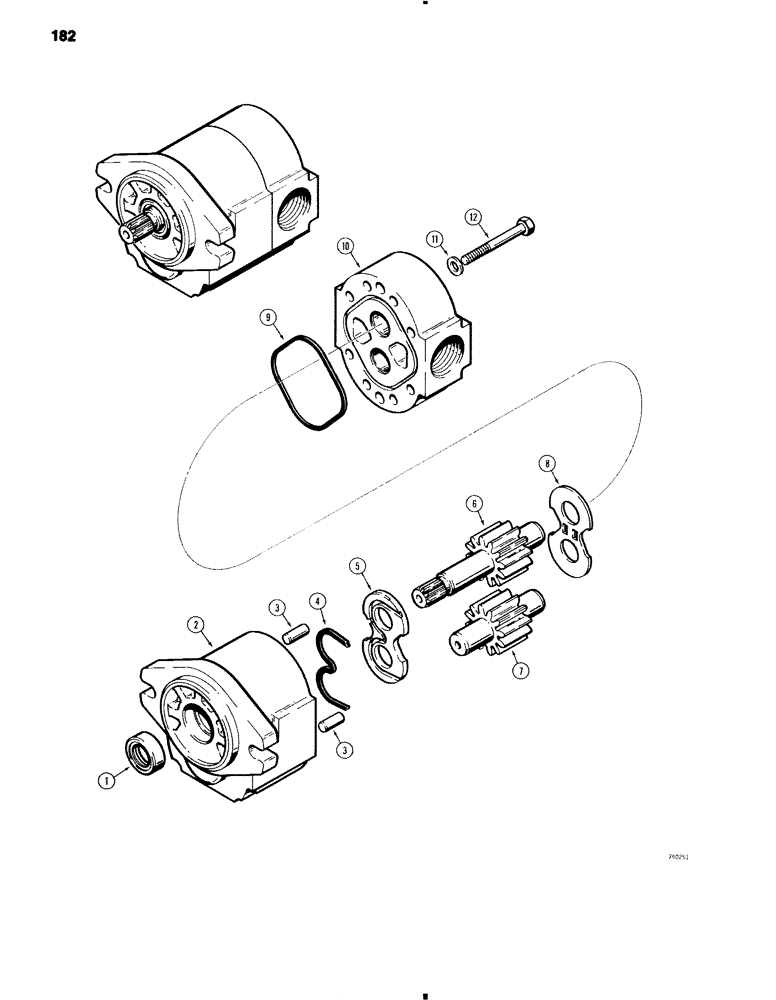

Запчасти Case 584C (182) - D73079 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

D73079

PUMP

HYDRAULIC PUMP - Warner Motive S30S-24E-J5-3-L, Includes: Ref. 1 - 12

1шт.

1

D73624

SEAL

- shaft

1шт.

2

D74415

BODY

ASSEMBLY - shaft end

1шт.

3

D73621

PIN

- dowel

2шт.

4

D73620

SEAL

- load

1шт.

5

D73619

PLATE

- wear

1шт.

6

D74416

GEAR

DRIVE GEAR - hydraulic pump

1шт.

7

D74417

GEAR

DRIVEN GEAR - hydraulic pump

1шт.

8

D73623

PLATE

- thrust

1шт.

9

D73622

SPECIAL RING

SEAL - square section

1шт.

10

D73615

COVER

ASSEMBLY - port end

1шт.

11

D74441

WASHER

- special

8шт.

12

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

8шт.
