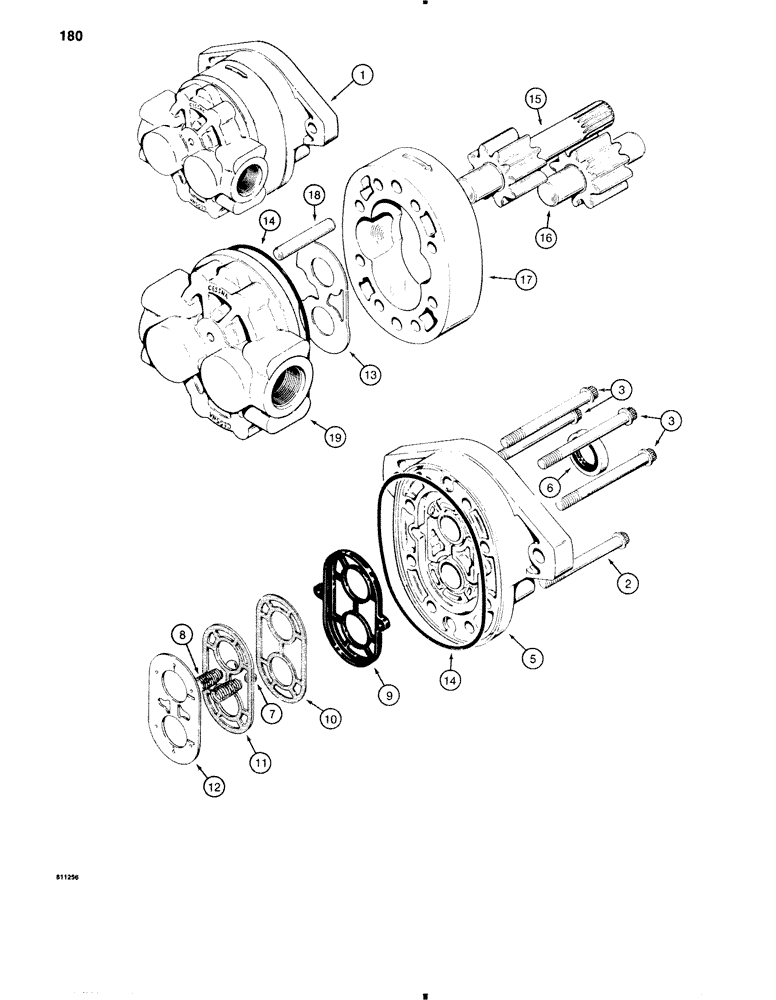

Запчасти Case 584C (180) - D41390 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

D41390

PUMP

HYDRAULIC PUMP - Cessna 24504 LAN, Includes: Ref. 2 - 19

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

87644746R

REMAN-HYD PUMP

584C, 585C, 586C, Case Construction King Forklifts

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3-1/4"

4шт.

3

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - Ferry head, 3/8" - 16 NC x 3-1/2"

4шт.

4

RESERVED

1шт.

5

D48879

COVER

COVER - drive shaft end

1шт.

D59656

GASKET KIT

KIT - pump repair, Includes: Ref. 6 - 14

1шт.

6

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - drive shaft

1шт.

7

211-312

BALL,13/32" Dia

BALL - steel, 13/32"

2шт.

8

D31403

SPRING

SPRING - ball retaining

2шт.

9

D48888

SEAL

SEAL - diaphragm

1шт.

10

H260927

GASKET

GASKET - backup

1шт.

11

H260935

GASKET

GASKET - protector

1шт.

12

H335331

DIAPHRAGM

DIAPHRAGM - pump

1шт.

13

A45358

PLATE

PLATE - thrust

1шт.

14

H756221

O-RING,4.987" ID x 5.193" OD

O-RING - cover seal

2шт.

D52929

GEAR

GEAR SET - drive and driven, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

DRIVE GEAR - includes shaft

1шт.

16

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - includes shaft

1шт.

17

D49371

HOUSING

HOUSING - gear

1шт.

18

D49373

DOWEL

DOWEL PIN - pump housing

2шт.

19

D48883

COVER

COVER - port end

1шт.
