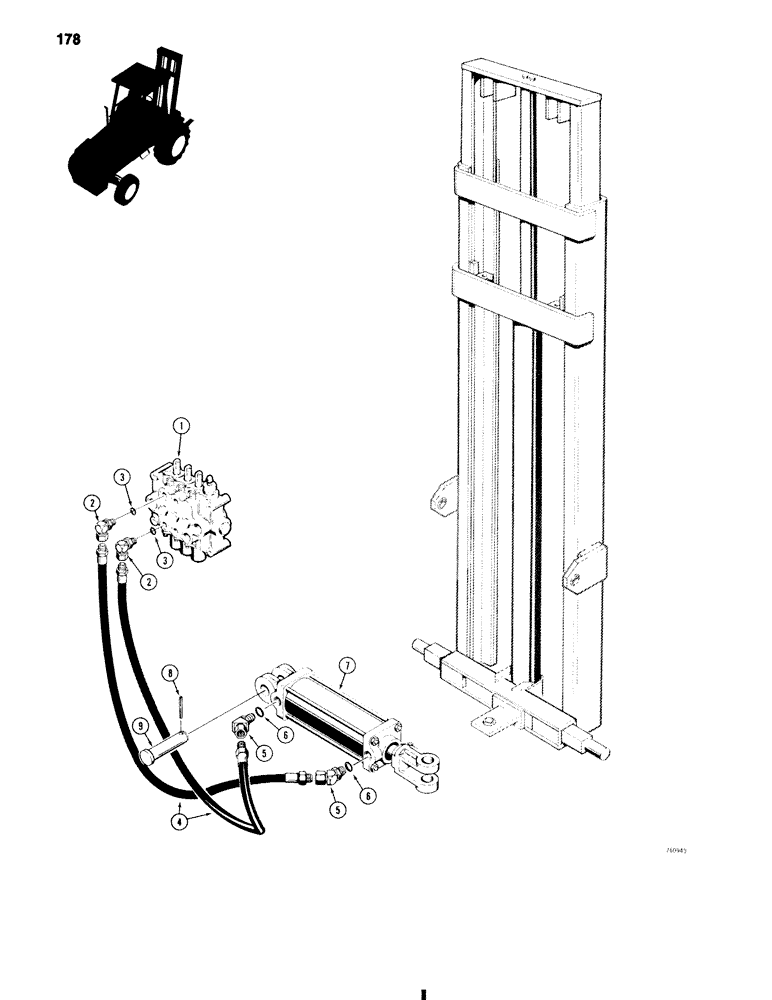

Запчасти Case 584C (178) - MAST SIDESHIFT HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CONTROL VALVE - forklift, see Figure 184 or 186 for correct assembly and components

1шт.

2

218-5204

90 ELBOW,90 Degree, 9/16"-18 O-Ring x 1/4" NPSM Fem

- 90 degree, adjustable, at valve, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

4

D26365

HOSE

- valve to cylinder, 45" long (1143 mm)

2шт.

5

D75823

ELBOW

- 45 degree, adjustable, restrictor type, at cylinder, Includes: Ref. 6

2шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

7

D40197

CYLINDER

- sideshift, parts list Figure 198, Includes: Ref. 8 and 9

1шт.

8

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, (Subs to 38-11632 ) 1/4" x 2", Slotted

2шт.

9

D36819

PIN,30.23mm OD x 111.25mm L

- cylinder mounting

2шт.
