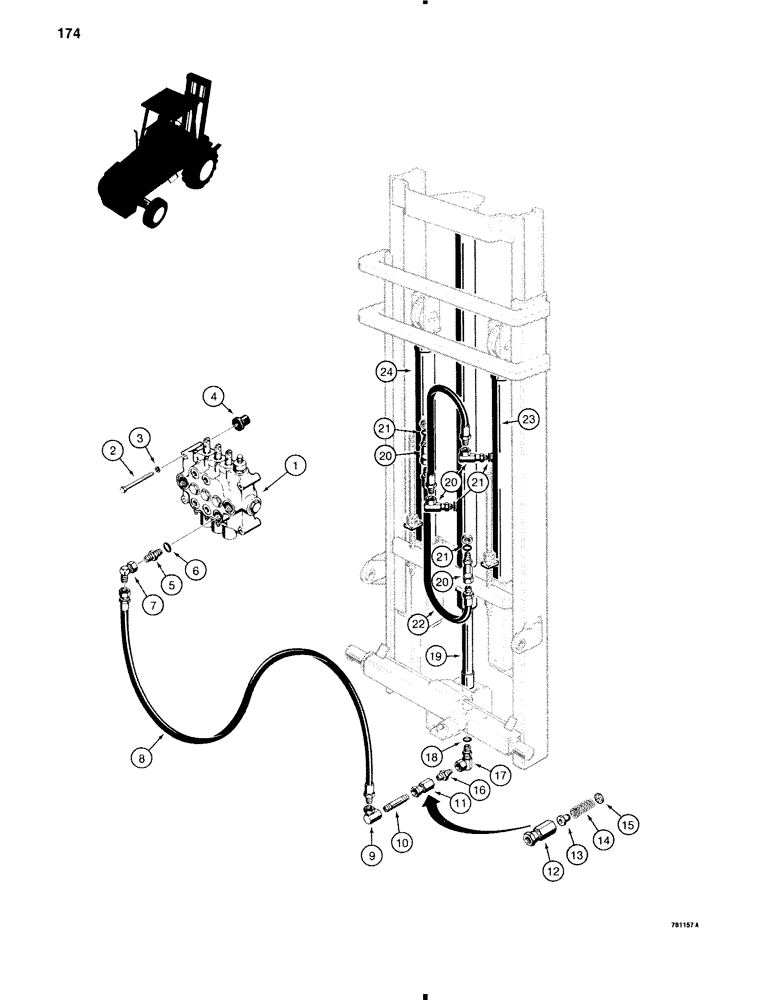

Запчасти Case 584C (174) - FREE LIFT MAST LIFT CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

D68255

VALVE

CONTROL VALVE - forklift, used with single hydraulic return line, parts list Figure 184

1шт.

1

D120040

PIN

CONTROL VALVE - forklift, used with dual hydraulic return lines, parts list Figure 186

1шт.

2

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

D75755

ISOLATOR

CUSHION - valve mounting

3шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 6 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, adjustable

1шт.

8

R17579

HOSE ASSY.

HOSE - to lift cylinder, 40" (1016 mm) long

1шт.

9

218-944

ELBOW,90 Degree, 1/2" NPTF Fem x 1/2" NPSM Fem Sw

FITTING - 90 degree

1шт.

10

D82880

NIPPLE, LUBE

NIPPLE - special

1шт.

11

D82879

FITTING

RESTRICTOR ASSEMBLY - lift cylinder hydraulic circuit, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - restrictor

1шт.

13

D48876

SPACER

- restrictor

1шт.

14

D82914

SPRING

- restrictor

1шт.

15

D82915

WASHER

- restrictor

1шт.

16

D82878

FITTING

ADAPTER - straight

1шт.

17

218-5390

90 ELBOW,90 Degree, 1 1/16"-12 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable, Includes: Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

REF

INSTRUCTION

CYLINDER - lift, center, 12 foot (3.6 m) mast, parts list Figure 192

1шт.

19

REF

INSTRUCTION

CYLINDER - lift, center, 14 foot (14.3 m) mast, parts list Figure 192

1шт.

20

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

- 90 degree, adjustable, Includes: Ref. 21

4шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

D41821

HOSE

- between lift cylinders, 18" (457 mm) long

1шт.

23

REF

INSTRUCTION

CYLINDER - lift, right-hand, 12 foot (3.6 m) mast, see Figure 192 or 194 for correct assembly and components

1шт.

23

REF

INSTRUCTION

CYLINDER - lift, right-hand, 14 foot (4.3 m) mast, see Figure 192 or 194 for correct assembly and components

1шт.

24

REF

INSTRUCTION

CYLINDER - lift, left-hand, 12 foot (3.6 m) mast, see Figure 192 or 194 for correct assembly and components

1шт.

24

REF

INSTRUCTION

CYLINDER - lift, left-hand, 14 foot (4.3 m) mast, see Figure 192 or 194 for correct assembly and components

1шт.
