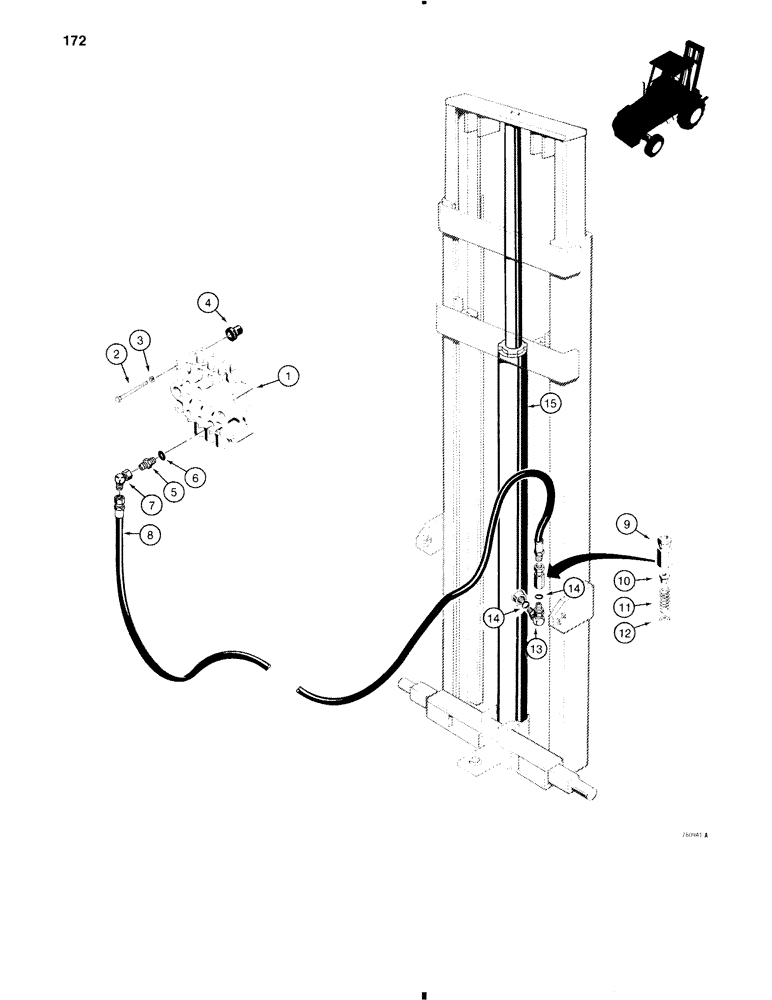

Запчасти Case 584C (172) - MAST LIFT CYLINDER HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

D68255

VALVE

CONTROL VALVE - forklift, used with single hydraulic return line, parts list Figure 184

1шт.

1

D124427

VALVE, CHECK

CONTROL VALVE - forklift, used with dual hydraulic return lines, parts list Figure 186

1шт.

2

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2"

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

D75755

ISOLATOR

INSULATOR - valve mounting

3шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male, Incl. Ref 6 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, adjustable

1шт.

8

R17579

HOSE ASSY.

HOSE - to lift cylinder, 40" (1016 mm) long

1шт.

D48875

VALVE

RESTRICTOR - lift cylinder hydraulic circuit, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - restrictor

1шт.

10

D48876

SPACER

- restrictor

1шт.

11

D48877

SPRING

- restrictor

1шт.

12

D48878

WASHER

- restrictor

1шт.

13

D48874

ELBOW

- 90 degree special, adjustable, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

2шт.

15

REF

INSTRUCTION

CYLINDER - lift, see Figure 190 for proper cylinder and parts list

1шт.
