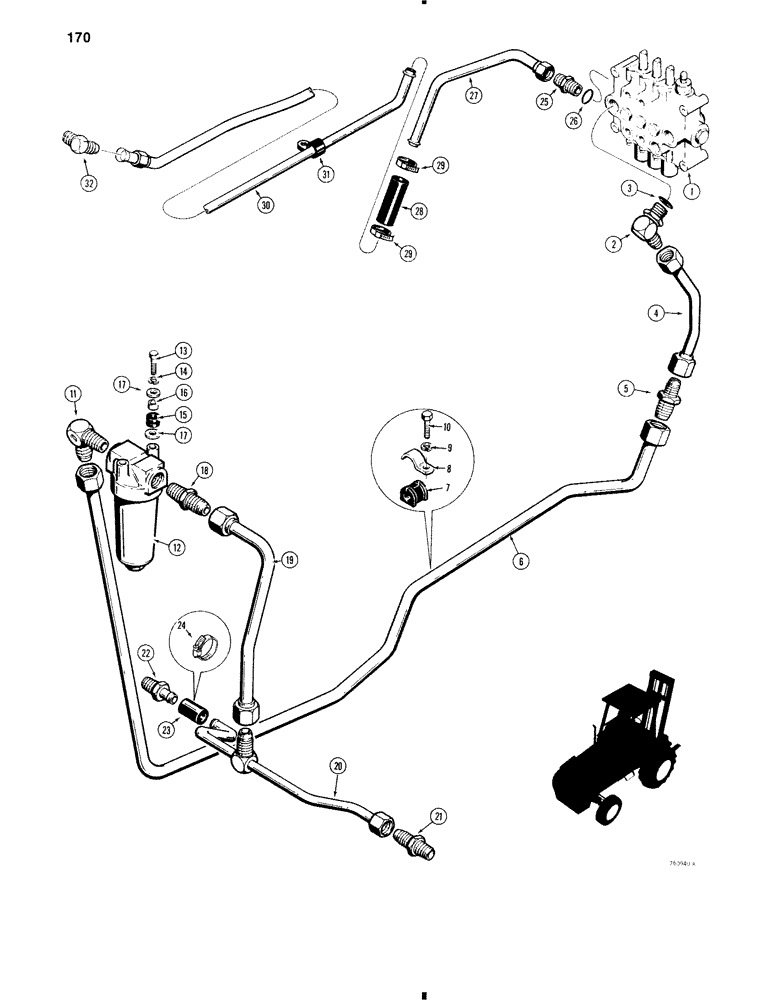

Запчасти Case 584C (170) - FORKLIFT HYDRAULIC CIRCUIT, RETURN LINES AND FILTER CONNECTIONS, USED ON MODELS W/ DUAL RETURN LINE (35) - HYDRAULIC SYSTEMS

1

D68255

VALVE

CONTROL VALVE - forklift, used with single return line, parts list Figure 184

1шт.

1

D120040

PIN

CONTROL VALVE - forklift, used with dual return line, parts list Figure 186

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

4

D75064

HYD TUBE,0.75" OD x 3.95, 9.25" L

TUBE - return, short

1шт.

5

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, male

1шт.

6

D86092

TUBE ASSY.

TUBE - return, long

1шт.

7

D67297

BLOCK

INSULATOR - tube

1шт.

8

D68846

CLAMP

- tube

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

11

D65646

FITTING

ELBOW - 90 degree, male

1шт.

12

D73910

FILTER ASSY

FILTER - hydraulic oil, parts list Figure 188

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

D67915

GROMMET

- rubber mounting

2шт.

16

D65660

BUSHING

SPACER - filter mounting

2шт.

17

195-36

WASHER

- flat, 1/2"

4шт.

18

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - filter outlet, male

1шт.

19

D67711

TUBE

- return, from filter

1шт.

20

D68536

TUBE

-, Serial Range: return-reservoir

1шт.

21

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

22

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING - left-hand reservoir

1шт.

23

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Return Tube 19.00 mm ID x 76.20 mm, SAE 100R3

1шт.

24

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 26

1шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

27

D93704

HYD TUBE,0.75" OD x 12.1, 6.1" L

TUBE - from valve end port

1шт.

28

D24728

HOSE

- 3/4" ID x 4-1/2" (19 mm x 114 mm) long

1шт.

29

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

30

D93702

TUBE ASSY.

TUBE, Serial Range: --reservoir

1шт.

31

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

1шт.

32

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

1шт.
