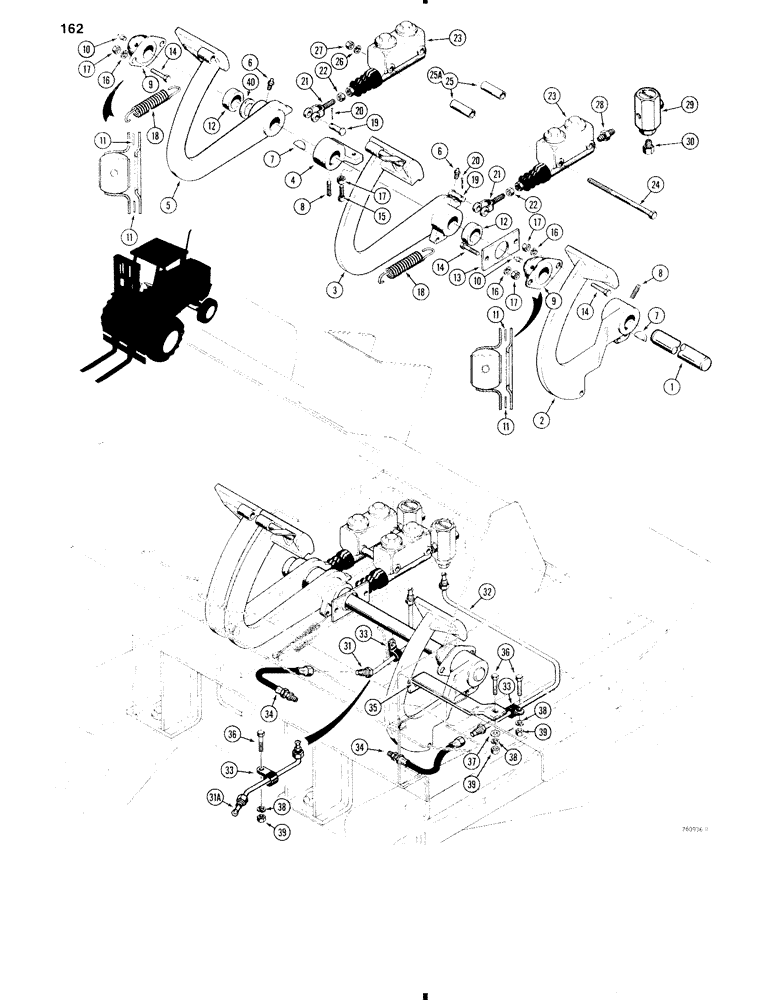

Запчасти Case 584C (162) - BRAKE PEDALS AND BRAKE SYSTEM (33) - BRAKES & CONTROLS

1

D67451

SHAFT

- brake pedal

1шт.

2

D67294

PEDAL

- brake, both

1шт.

3

D67351

PEDAL

- brake, left-hand

1шт.

4

D68123

STOP

- brake pedals

1шт.

5

D67342

PEDAL

- brake, right-hand

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

7

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

#D, 5/16" x 1-1/4"

2шт.

8

85-612

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

- square head, 3/8" - 16 NC x 3/4"

2шт.

9

D77731

FLANGED BEARING

BEARING - pedal shaft

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

11

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

- bearing, spacer

4шт.

12

D66098

SPACER - brake pedal

2шт.

13

D69458

STOP

PLATE - spacer retaining

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

15

178-260

SET SCREW,Hex Soc, 3/8"-16 x 1 1/4"

- 3/8" - 16 NC x 1-1/4"

2шт.

16

92-6

LOCK WASHER,3/8"

6шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

18

R15380

SPRING

- pedal return

2шт.

19

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

2шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

21

D38620

YOKE

CLEVIS - master cylinder

2шт.

22

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex, 7/16" - 20 NF

2шт.

23

D73465

CYLINDER

MASTER CYLINDER - brake, parts list Figure 164

2шт.

23

D73465R

REMAN-MASTER CYLINDE

584C, 585C, 586C, All CASE CONSTRUCTION KING FORKLIFT, MASTER CYLINDER

2шт.

23

D73465C

CORE-MASTER CYLINDER

Return Number

2шт.

24

13-6120

X,Hex, 3/8" - 16 x 7 1/2", Gr 5

BOLT - hex head, 3/8" - 16 NC x 7-1/2"

2шт.

25

D73279

SPACER

- master cylinders, 1.350" (34.3 mm), if used

2шт.

25a

D95741

BUSHING

SPACER - master cylinder, 1.310" (33.3 mm), if used

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

FITTING - straight male, 1/8" NPT

2шт.

29

D72415

LIMITER, TRAVEL

REGULATOR ASSEMBLY - brake pressure

2шт.

30

222-1013

HYD CONNECTOR,7/16"-24 Inv Fl x 1/4" NPT

ADAPTER - straight

2шт.

31

D73266

TUBE

- brake, right-hand, bent up at hose, order 31A

1шт.

31a

D87645

TUBE,0.25" OD x 1.37, 2.74" L

- brake, right-hand, bent down at hose

1шт.

32

D75772

TUBE,0.25" OD x 17.31, 10.85" L

- brake, left-hand

1шт.

33

49851

SHIELD

- tube

2шт.

34

D66741

HOSE,6.35mm ID x 270mm L

- brake

2шт.

35

D72028

STOP

- pedal

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3-4шт.

37

195-25

WASHER,3/8"

- flat, 3/8"

1шт.

38

92-6

LOCK WASHER,3/8"

3-4шт.

39

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3-4шт.

40

195-2125

WASHER,1 5/16" x 2" x .109"

- spacer

1шт.
