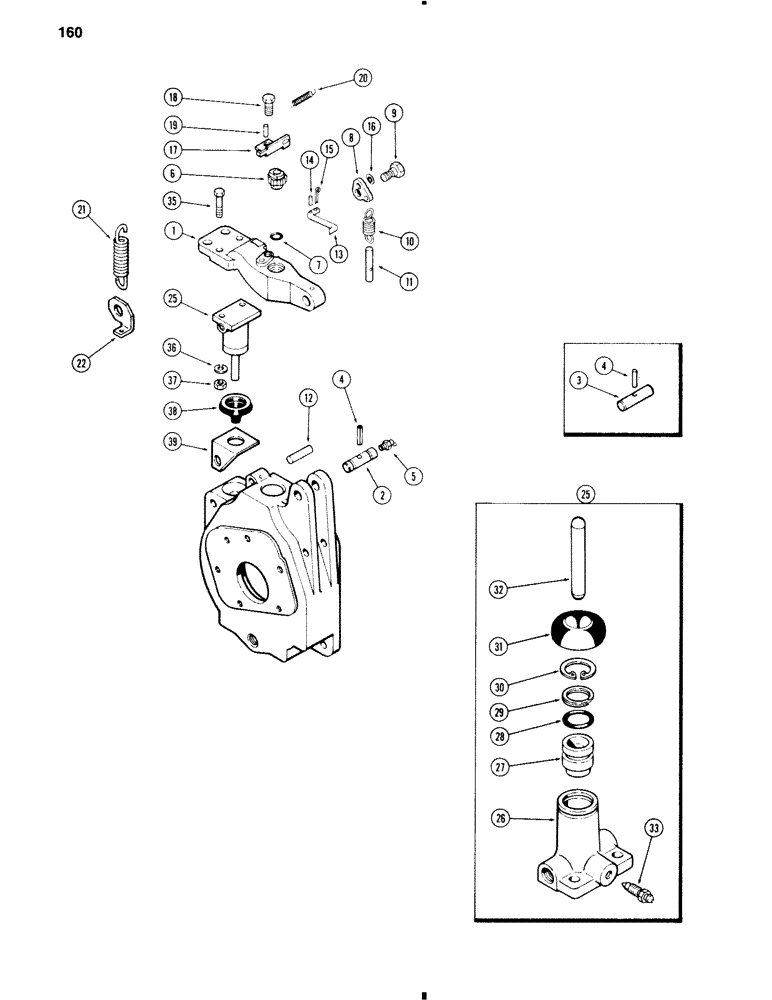

Запчасти Case 584C (160) - DIFFERENTIAL BRAKE LEVER AND LOCK, TRANSAXLE, DIFFERENTIAL BRAKE CYLINDER (33) - BRAKES & CONTROLS

1

A51969

LEVER

- brake

2шт.

2

A154569

PIN

- brake lever pivot (Transmission serial no. 10218749 and after)

2шт.

3

A62822

PIN

- brake lever pivot (Prior to transmission serial no. 10218749)

2шт.

4

138-2028

PIN,3/16" x 1 1/4", Coiled

Pivot pin (4.76 x 31.75 mm) (Replaces 138-98) 3/16" x 1 1/4", Coiled

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, (Transmission S/N 10218749 and after) 90º, 1/8" NPT x .84" lg

2шт.

6

A148118

NUT

- ratchet, brake adjusting

2шт.

7

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- adjusting nut, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm)

2шт.

8

A64490

CAM

- self adjusting brake

2шт.

9

A58471

STEP BOLT

BOLT - cam pivot

2шт.

10

A60489

SPRING

- self adjusting brake cam

2шт.

11

A51971

ROD

PIN - spring limit, 5/16 x 2-1/4" (7.94 x 57.15 mm)

2шт.

12

REF

INSTRUCTION

PIN - spring anchor, See Figure 156

2шт.

13

A51970

ROD

- ratchet lock

2шт.

14

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN - rod retaining, inside, 1/16 x 1/2" roll (1.59 x 12.7 mm)

2шт.

15

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Rod, outer 1/16" x 1/2"

2шт.

16

S67607

SNAP RING,#25, Ext

Ring, Snap, , grip, brake rod to cam #25, Ext

2шт.

17

A59609

BRACKET

- self adjusting brake

2шт.

18

61-68

HEX SOC SCREW,3/8"-16 x 1/2"

BOLT - bracket, 3/8 x 1/2" NC hex socket head

2шт.

19

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Bracket anchor (4.76 x 19.05 mm) 3/16" x 3/4", Slotted

2шт.

20

A60555

SPRING

- ratchet rod return

2шт.

21

A35789

SPRING

- brake return, 4" free length (101.6 mm)

2шт.

22

A51974

BRACKET

- anchor, return spring, left hand

1шт.

22

A51975

BRACKET

- anchor, return spring, right hand

1шт.

25

A148562

CYLINDER

ASSEMBLY - brake, 1" diameter cylinder (25.4 mm) with yellow paint color code, Includes: Ref. 26 - 33

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

A45025

PISTON

ASSEMBLY - cylinder, Includes: Ref. 27 - 33

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - piston, 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.18 mm) (Order A45027)

1шт.

Part of Repair Kit, P/N A45027

1шт.

29

S7172

GASKET

RING - O-ring backup

1шт.

Part of Repair Kit, P/N A45027

1шт.

30

A35655

KIT

RING - snap, piston retaining

1шт.

Part of Repair Kit, P/N A45027

1шт.

31

A45382

COVER

BOOT - cylinder weatherseal

1шт.

Part of Repair Kit, P/N A45027

1шт.

32

A42254

ROD

- push

1шт.

Part of Repair Kit, P/N A45027

1шт.

33

A41491

BLEEDER,1/4" - 28 x 23.37mm

- cylinder bleeder

1шт.

A45027

KIT

REPAIR KIT - wheel cylinder, Includes: Refs., 28, 29, 30, 31 and 32, only used for cylinders with o-ring seal prior to 2003

2шт.

35

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Brake cylinder to lever Hex, 1/4"-20 x 1 1/4", G5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

25-104

NUT,1/4"-20, G5

4шт.

38

A41490

BOOT

COVER - brake cylinder dust (Transmission serial no. 10213608 and after)

2шт.

39

A154558

BRACKET

- brake cylinder cover, left hand (Transmission serial no. 10213608 and after)

1шт.

39

A154557

BRACKET

- brake cylinder cover, right hand (Transmission serial no. 10213608 and after)

1шт.
