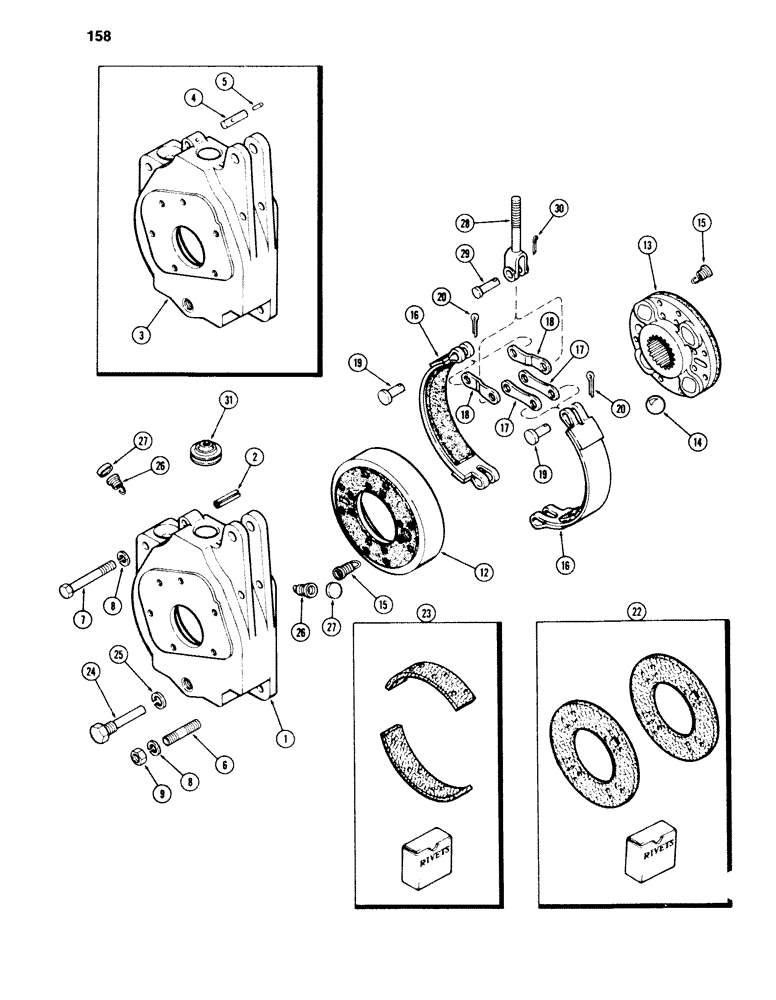

Запчасти Case 584C (158) - DIFFERENTIAL BRAKE HOUSING AND BRAKE, TRANSAXLE (33) - BRAKES & CONTROLS

1

A152924

COVER

HOUSING - brake, right hand, 0.360 diameter anchor pin hole (0.92 mm) (Transmission serial no. 10074408 and after)

1шт.

1

A152923

BRAKE

HOUSING - brake, left hand, 0.360 diameter anchor pin hole (0.92 mm) (Transmission serial no. 10074408 and after)

1шт.

2

138-2068

PIN,3/8" x 2 1/2", Coiled

(used with A152923 and A152924 housing) 3/8" x 2 1/2", Coiled

2шт.

3

A138719

COVER

HOUSING - brake, right hand, 0.386 diameter anchor pin hole (0.98 mm) (Prior to transmission serial no. 10074408) (Order 1-A152924 and (1) 138-2068)

1шт.

3

A138736

SPARE PART

HOUSING - brake, left hand, 0.386 diameter anchor pin hole (0.98 mm) (Prior to transmission serial no. 10074408) (Order 1-A152923 and (1) 138-2068)

1шт.

4

A146505

PIN

- spring anchor, 3/8 x 2-7/8" solid type (Used with A138719 and A138736 housing)

2шт.

5

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN - anchor spring retaining, 3/16 x 5/8" roll (Used with A146505 pin)

2шт.

6

A27637

STUD

- brake housing, 1/2" NC x 2-5/8"

4шт.

7

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

- brake housing, 1/2 x 3-3/4" NC hex

2шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

Brake housing Hex, 1/2"-13 x 4", G5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

9

25-118

NUT,1/2"-20, G5

- 1/2" NC hex

4шт.

A155474

BRAKE

ASSEMBLY - (Replaces A154350), Includes: Ref. 12 - 20

2шт.

12

A142979

DRUM

ASSEMBLY - with lining (See Ref. 22)

1шт.

13

A142980

BRAKE DISC

DISC ASSEMBLY - with lining (See Ref. 22)

1шт.

14

211-21

BALL

- 1" diameter (25.4 mm)

4шт.

15

A47524

SPRING

- disc return (Replaces G48508)

2шт.

16

A44756

BAND

ASSEMBLY - inner, with lining (See Ref. 23)

2шт.

17

G46345

LINK

- actuating, inner band

2шт.

18

G46344

LINK

- actuating, outer band

2шт.

19

G49082

PIN,14.22mm OD x 40.03mm L

- clevis, Serial Range: link-band

2шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

22

A44720

LINING

KIT - drum and disc, with rivets (For 1 side only) (Order 2-A44718 and 35-A41553)

2шт.

23

A47683

BAND

LINING KIT - brake bands, with rivets (For 1 side only) (Replaces A44721) (Order 2-44719 and 18-A47682)

2шт.

24

G15801

BOLT

ANCHOR - brake bands

2шт.

25

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

26

G48507

SPRING

- brake band return

4шт.

27

41-13

GUARD,Exp, 13/16"

- return spring hole, 13/16" expansion (20.64 mm)

4шт.

28

A154737

ROD

- brake actuating (Replaces A51968)

2шт.

29

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis rod to brake links

2шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

31

A135946

DUST CAP

SEAL - dust, brake housing

2шт.
