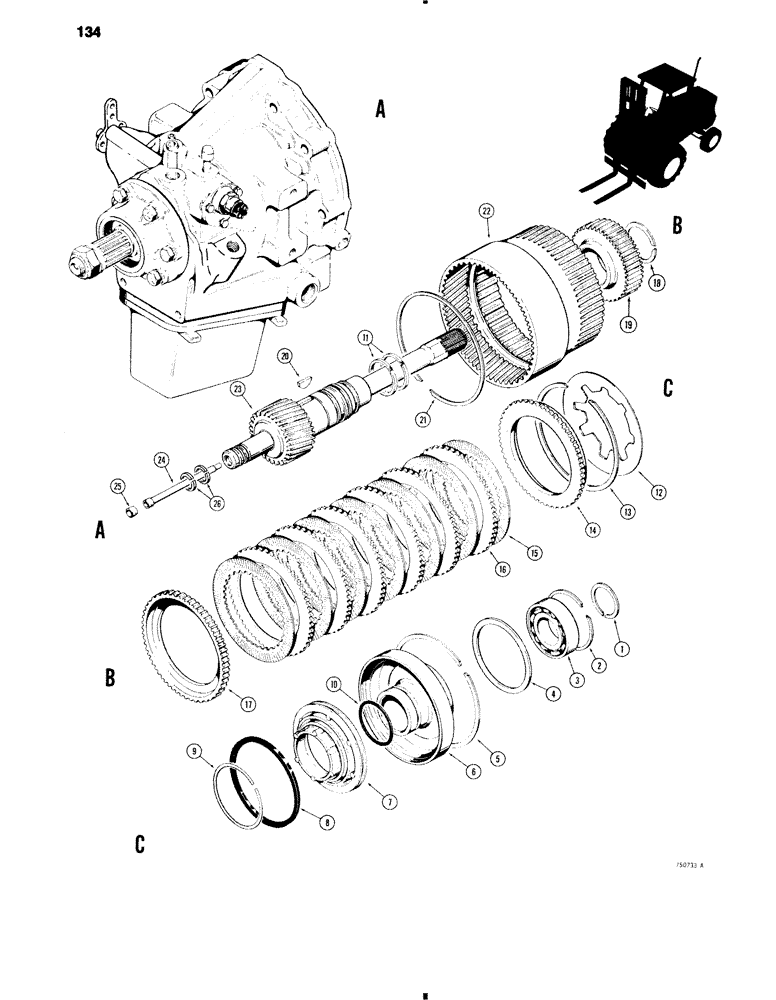

Запчасти Case 584C (134) - POWER SHUTTLE, INPUT SHAFT AND FORWARD CLUTCH (21) - TRANSMISSION

D88050

TRANSMISSION

SHUTTLE ASSEMBLY - complete, replaces D75364 or D75694, see Figures 128 - 136, Includes: Ref. 1 - 26

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

1

D50042

RING

SNAP RING - bearing retaining, small

1шт.

2

D50043

RING

SNAP RING - bearing retaining, large

1шт.

3

D50044

BALL BEARING

- clutch cylinder

1шт.

4

D50045

WASHER,79.76mm ID x 93.73mm OD x 1.73mm Thk

THRUST WASHER - forward clutch

1шт.

5

D50046

RING

- ring gear retaining

1шт.

6

D50075

CYLINDER

- forward clutch

1шт.

7

D70670

PISTON

- forward clutch

1шт.

8

D50077

RING

- clutch

1шт.

9

D50078

RING,3.17mm Thk x 77.22mm ID, 40 Duro

- piston

1шт.

10

D50079

O-RING,0.139" Thk x 2" ID

O-RING - piston

1шт.

11

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

12

D50047

BELLEVILLE WASHER,73.025mm ID x 134.95mm OD x 1.854mm Thk

- Belleville

1шт.

13

D50048

CIRCLIP

RING - retaining, pressure plate

1шт.

14

D50081

PLATE,139.12mm OD

- pressure, rear

1шт.

15

D70672

PLATE

DISC - friction, internal tooth

7шт.

16

D50083

PLATE

DISC - friction, external tooth

6шт.

17

D50084

PLATE,139.45mm OD

- pressure, front

1шт.

18

D50049

RING

- clutch hub retaining

1шт.

19

D50050

HUB

- clutch

1шт.

20

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Input shaft #15, 1/4" x 1", HT

1шт.

21

D50051

SNAP RING

RING - .050" to .054" thick (1.270 mm to 1.372 mm)

1шт.

21

D78397

RING

- .062" to .066" thick (1.575 mm to 1.676 mm)

1шт.

21

D50052

RING

- .074" to .078" thick (1.880 mm to 1.981 mm)

1шт.

21

D78398

RING

- .084" to .088" thick (2.134 mm to 2.235 mm)

1шт.

21

D50053

RING

- .096" to .100" thick (2.438 mm to 2.540 mm)

1шт.

22

D50054

GEAR

RING GEAR - power shuttle

1шт.

D70666

GEAR

INPUT SHAFT ASSEMBLY - power shuttle, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

INPUT SHAFT - drive

1шт.

24

N7043

TUBE

- forward clutch supply

1шт.

25

D50086

PLUG

- shaft end

1шт.

26

D70668

RING,Split, 18.34mm ID x 20.88mm OD x 2.34mm Thk

- sealing

2шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
