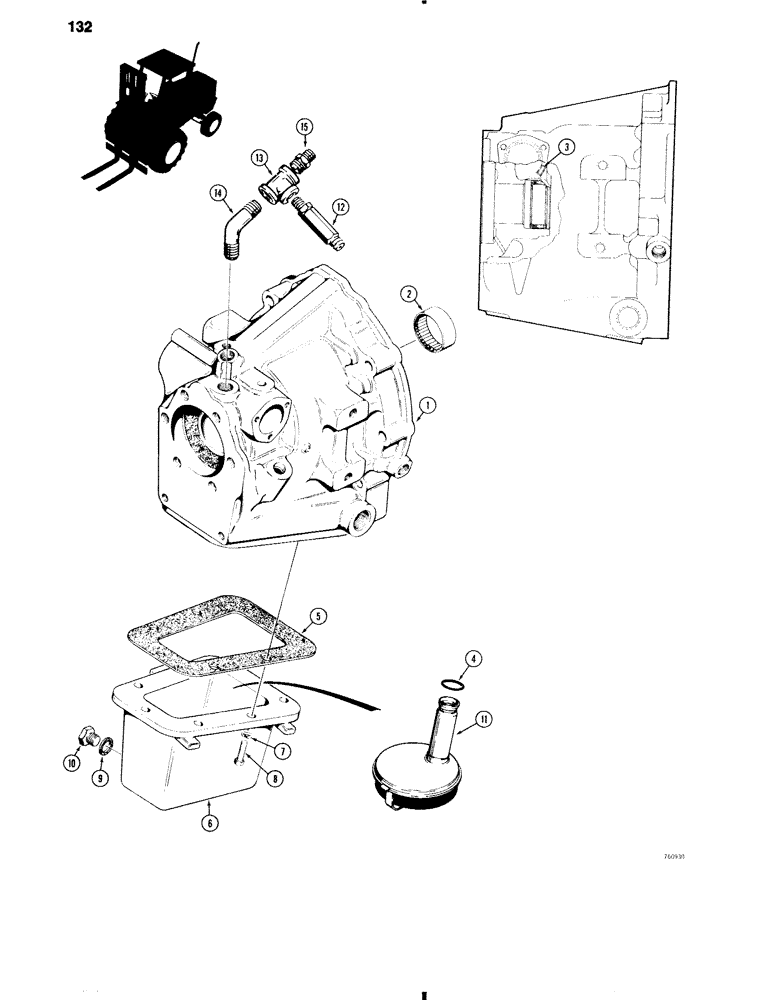

Запчасти Case 584C (132) - POWER SHUTTLE, HOUSING AND OIL PAN (21) - TRANSMISSION

D88050

TRANSMISSION

SHUTTLE ASSEMBLY - replaces D75364 or D75694, for complete power shuttle see Figures 128 - 136, Includes: Ref. 1 - 11

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D70650

HOUSING

ASSEMBLY - power shuttle, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

- housing, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

- cup

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

- screen tube

1шт.

5

R29956

GASKET,0.76mm Thk

- oil pan

1шт.

5a

345-84

ADHESIVE

SEAL - 3 oz. (88.7 ml) of sealer in a tube, not shown, can be used in place of R29956 gasket

1шт.

6

R29902

PAN

OIL PAN - power shuttle

1шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

D73701

PLUG

ASSEMBLY - drain, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain nlug

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain

1шт.

11

D66455

FILTER SCREEN

SCREEN - sump, power shuttle

1шт.

12

D48540

VALVE POPPET

RELIEF VALVE - power shuttle

1шт.

13

221-423

TEE,3/8" NPT

- 3/8" NPT

1шт.

14

D48539

FITTING

ELBOW - 75 degree, special

1шт.

15

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
