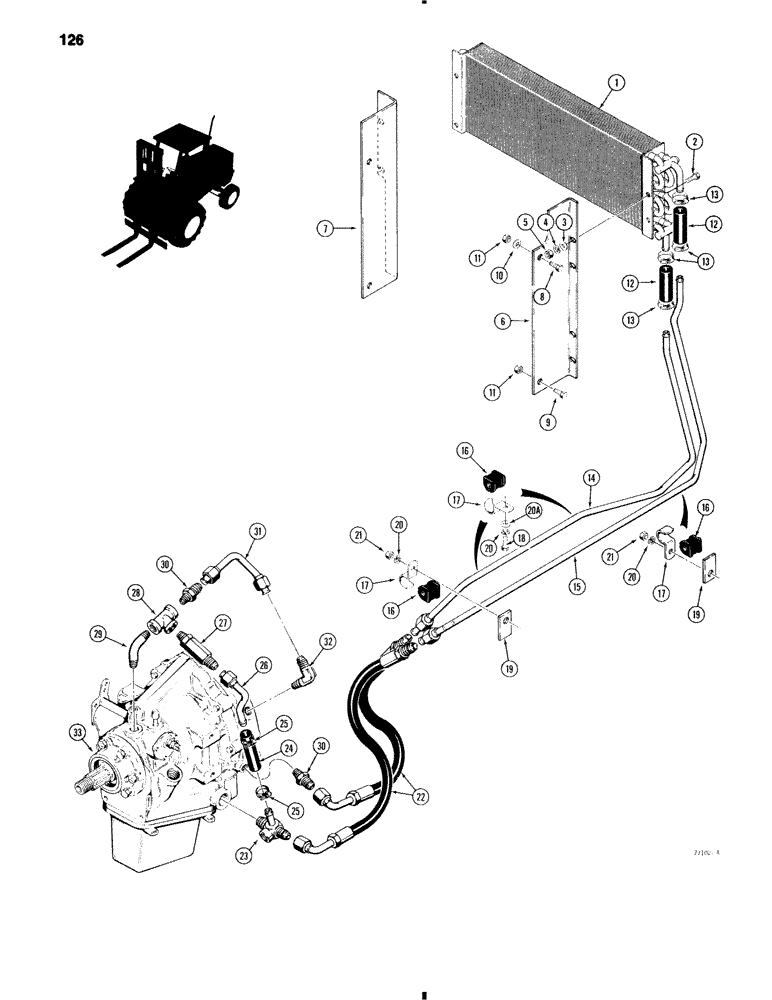

Запчасти Case 584C (126) - POWER SHUTTLE COOLING SYSTEM, TRACTOR SN 8957184 AND AFTER (21) - TRANSMISSION

1

D76097

COOLER

OIL COOLER - power shuttle

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

4шт.

6

D76570

BRACKET

- oil cooler, left-hand

1шт.

7

D77820

BRACKET - oil cooler, right-hand

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

12

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Oil Cooler to Tubes 12.7 mm ID x 101.60 mm, SAE 100R3

2шт.

13

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

14

D77712

TUBE - oil cooler inlet

1шт.

15

D77714

TUBE - oil cooler outlet

1шт.

16

D67296

GROMMET

INSULATOR - tube

4шт.

17

D68638

CLAMP

- tube

4шт.

18

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

19

D78057

PLATE

- clamp spacer

2шт.

20

92-6

LOCK WASHER,3/8"

4шт.

20a

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

22

D69051

HOSE

- power shuttle to tubes, 18" (457 mm) long

2шт.

23

D68972

CONNECTOR, ELEC

FITTING - 4-way

1шт.

24

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

Power Shuttle Inlet 12.7 mm ID x 101.60 mm, SAE 100R3

1шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

26

D68973

HYD TUBE,0.5" OD x 4.84, 2.51" L

TUBE - power shuttle inlet

1шт.

27

D48540

VALVE POPPET

RELIEF VALVE - power shuttle

1шт.

28

221-423

TEE,3/8" NPT

Pipe 3/8" NPT

1шт.

29

D48539

FITTING

ELBOW - 75 degree, special

1шт.

30

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, male

2шт.

31

D48523

TUBE

- power shuttle inlet

1шт.

32

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90degree, male

1шт.

33

REF

INSTRUCTION

POWER SHUTTLE ASSEMBLY - see Figures 128 - 136

1шт.
