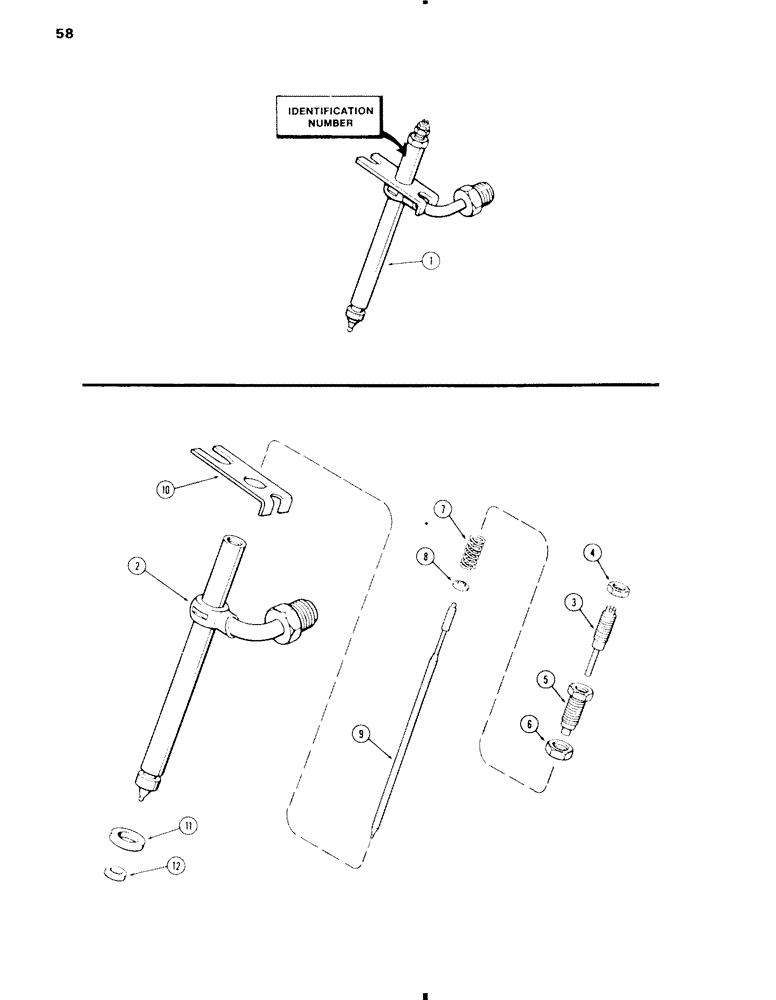

Запчасти Case 584C (058) - INJECTOR NOZZLE (10) - ENGINE

1

A154542

NOZZLE CAP

NOZZLE ASSEMBLY - injector (No. 22365 stamped on body, Color code white and green), Includes: Ref. 2 - 12

4шт.

When a nozzle is removed from the head, washer A41403 installed back into the head.

1шт.

1

A154542R

REMAN-FUEL INJECTOR

NOZZLE ASSEMBLY - injector (No. 22365 stamped on body, Color code white and green)

4шт.

1

A154542C

CORE-FUEL INJECTOR

Return Number

4шт.

1

A140828

FUEL SYSTEM INJECTOR

NOZZLE ASSEMBLY - injector (No. 20673 stamped on body) (Color code white and yellow), Includes: Ref. 2 - 12

4шт.

When a nozzle is removed from the head, washer A41403 installed back into the head.

1шт.

1

A140828R

REMAN-INJECT NOZZLE

NOZZLE ASSEMBLY - injector (No. 20673 stamped on body) (Color code white and yellow)

4шт.

1

A140828C

CORE-NOZZLE, INJECT

Return Number

4шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A43733

SPRING

- pressure adjusting, 9/16" free length (14.29 mm)

1шт.

8

A44369

SEAT

- pressure adjusting spring

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

10

A43506

PLATE ASSY.

PLATE - nozzle holder

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.
