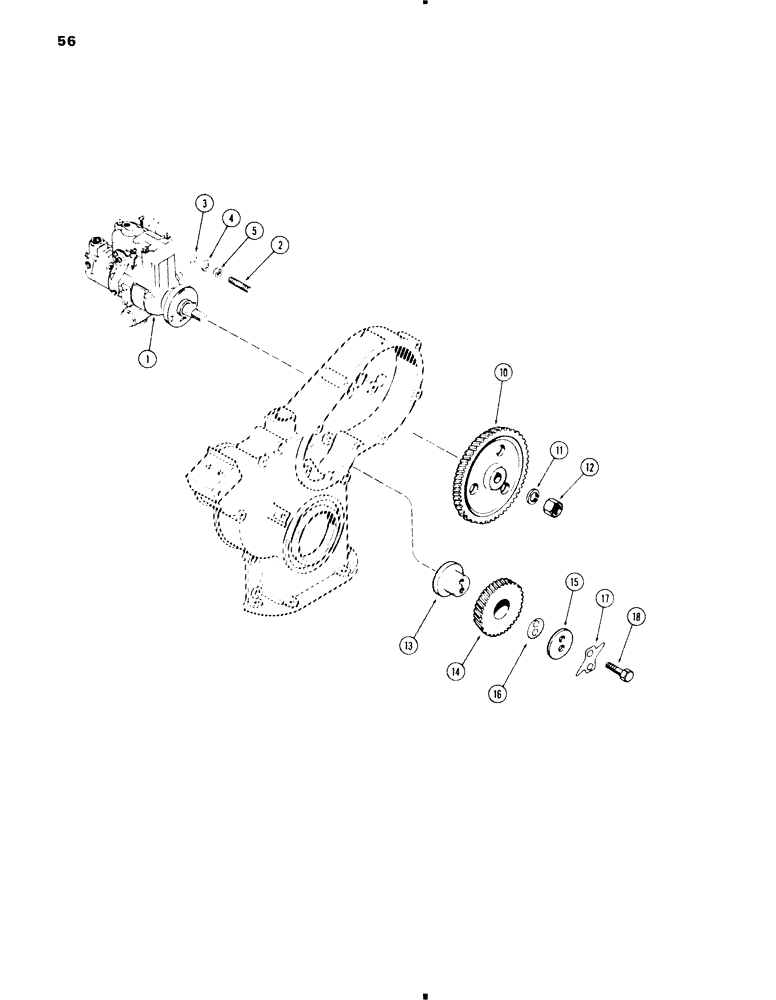

Запчасти Case 584C (056) - INJECTION PUMP DRIVE, 207 DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figure 54

1шт.

2

G102128

BOLT

- pump mounting, 3/8" NC x 1-7/16"

3шт.

3

A30043

WASHER

- mounting studs, 3/8 x 7/8 x 1/8" (9.52 x 22.22 x 3.17 mm)

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

129-166

JAM NUT,Jam, 9/16"-18, G5

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSEMBLY - idler, with bushing

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.13 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.16 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.18 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.23 mm) .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
