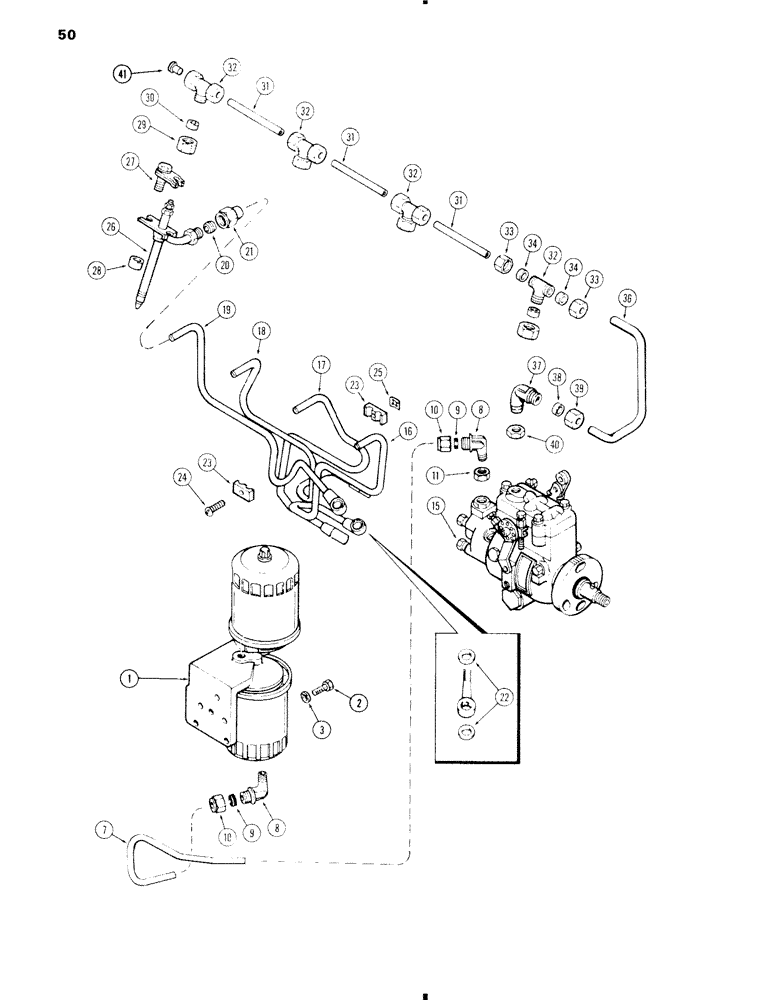

Запчасти Case 584C (050) - FUEL INJECTION AND FILTER SYSTEM, 207 DIESEL ENGINE (10) - ENGINE

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel, See Figure 52

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

7

A51784

TUBE

LINE -, Serial Range: filter-pump

1шт.

8

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY, Includes: Ref. 9 and 10

2шт.

9

222-104

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

10

222-114

NUT,5/8"-24

NUT - for 3/8" tube (9.53 mm)

1шт.

11

A38161

LOCK NUT

- sealing, 1/4" PT (In injector pump)

1шт.

15

REF

INSTRUCTION

PUMP ASSEMBLY - injection, See Figure 54

1шт.

16

A41391

TUBE

ASSEMBLY - injection pump to No. 1 cylinder (Order 1-A37842 and 2-G49407) (Includes: Ref. 20, 21 and 22)

1шт.

17

A41392

TUBE

ASSEMBLY - injection pump to No. 2 cylinder (Order 1-A37944 and 2-G49407) (Includes: Ref. 20, 21 and 22)

1шт.

18

A41393

TUBE

ASSEMBLY - injection pump to No. 3 cylinder (Order 1-A37846 and 2-G49407) (Includes: Ref. 20, 21 and 22)

1шт.

19

A41394

TUBE

ASSEMBLY - injection pump to No. 4 cylinder (Order 1-A37848 and 2-G49407) (Includes: Ref. 20, 21 and 22)

1шт.

20

A37850

PIPE FITTING

SLEEVE - injection tube

1шт.

21

A37851

NUT

- injection tube

1шт.

22

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

2шт.

23

A58709

BRACKET

CLAMP - fuel injection lines

4шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, No. 10 x 1" round head

2шт.

25

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - No. 10 Tinnerman

2шт.

26

REF

INSTRUCTION

NOZZLE ASSEMBLY - injector, See Figure 58

4шт.

27

A37837

CLAMP

ASSEMBLY - injector nozzle

4шт.

28

A37839

SPACER

- nozzle clamp

4шт.

29

A58961

NUT

- injector nozzle

4шт.

30

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injector nozzle

4шт.

31

A38644

TUBE

- fuel leak-off

3шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CONNECTOR - nozzle and leak-off lines junction (T-Type)

4шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

8шт.

34

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

8шт.

36

A142906

TUBE

- fuel leak-off (at pump)

1шт.

37

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - fuel leak-off line (at pump), Includes: Ref. 38 and 39

1шт.

38

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

1шт.

39

222-102

SLEEVE,1/4" Tube

NUT - for (6.35 mm) 1/4" Tube

1шт.

40

A38160

LOCK NUT

- sealing (1/8" PT) (at pump)

1шт.

41

47-47

RIVET,FH, 1/4" x 7/16"

- leak-off plug, 1/4 x 7/16"

1шт.
