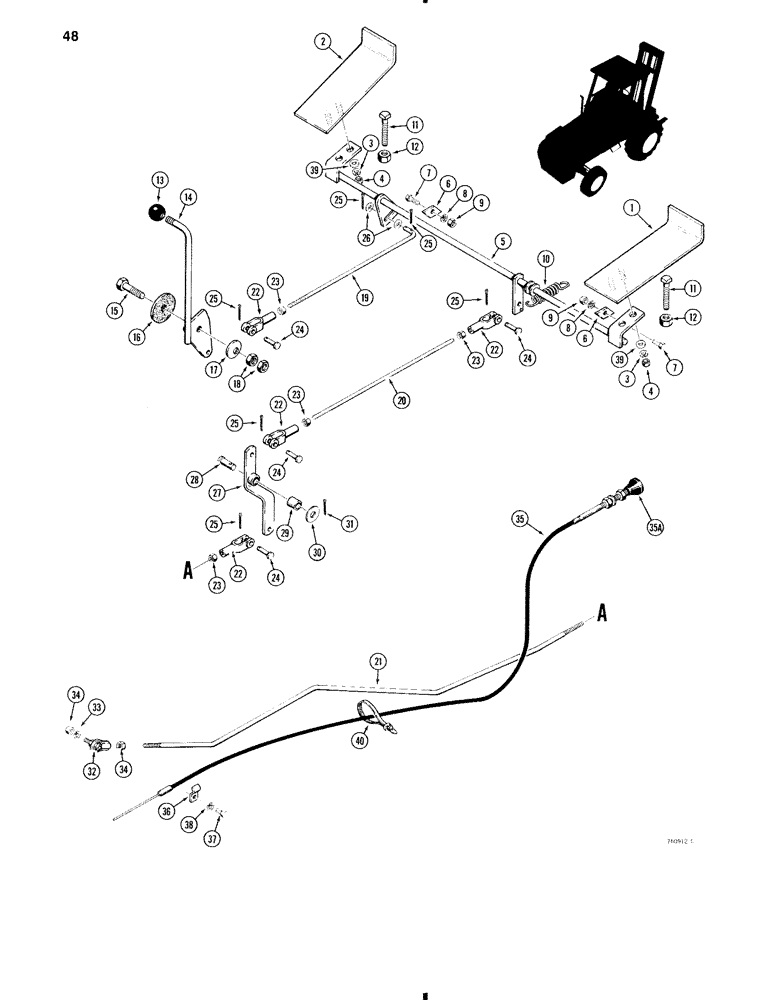

Запчасти Case 584C (048) - THROTTLE AND FUEL SHUTOFF CABLE (10) - ENGINE

1

D76903

PEDAL

- foot throttle, right-hand

1шт.

2

D76904

PEDAL

- foot throttle, left-hand

1шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

R35649

SHAFT

- pedal

1шт.

6

D67902

STRIP

PLATE - shaft retaining

2шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

92-5

LOCK WASHER,5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

10

D129921

SPRING

- throttle return

1шт.

11

181-652

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

- square head, 3/8" - 16 NC x 2-1/4", throttle stop

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

D59912

KNOB

- hand throttle

1шт.

14

R35661

LEVER

- hand throttle

1шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

R15071

DISC

FRICTION DISC - throttle lever

1шт.

17

R14771

WASHER

BELLEVILLE SPRING - throttle lever

1шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

19

R35667

ROD

- hand throttle to pedal shaft

1шт.

20

D68927

THREADED ROD

ROD - pedal, Serial Range: shaft-pivot

1шт.

21

D82533

ROD

- pivot to injection pump

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - throttle rods, 5/16" - 24 NF

4шт.

23

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

4шт.

24

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

25

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

26

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

27

D77235

PIVOT

- throttle rods

1шт.

28

141-6

CLEVIS PIN,1/2" x 1.360"

- 1/2" x 1-3/8"

1шт.

29

A141259

BUSHING

- throttle rod pivot

1шт.

30

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

31

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

D63154

JOINT,1/4" - 28 x 1-1/3"

BALL JOINT - adjustable, 1/4" - 28 NF threads

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

25-114

NUT,1/4"-28, G5

- hex, 1/4" - 28 NF

2шт.

35

D67656

CABLE

- fuel shutoff, Includes: Ref. 35A

1шт.

35a

L33717

KNOB

- fuel shutoff cable

1шт.

36

A26673

CLIP

- cable retaining

1шт.

37

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - fuel shutoff cable

1шт.
