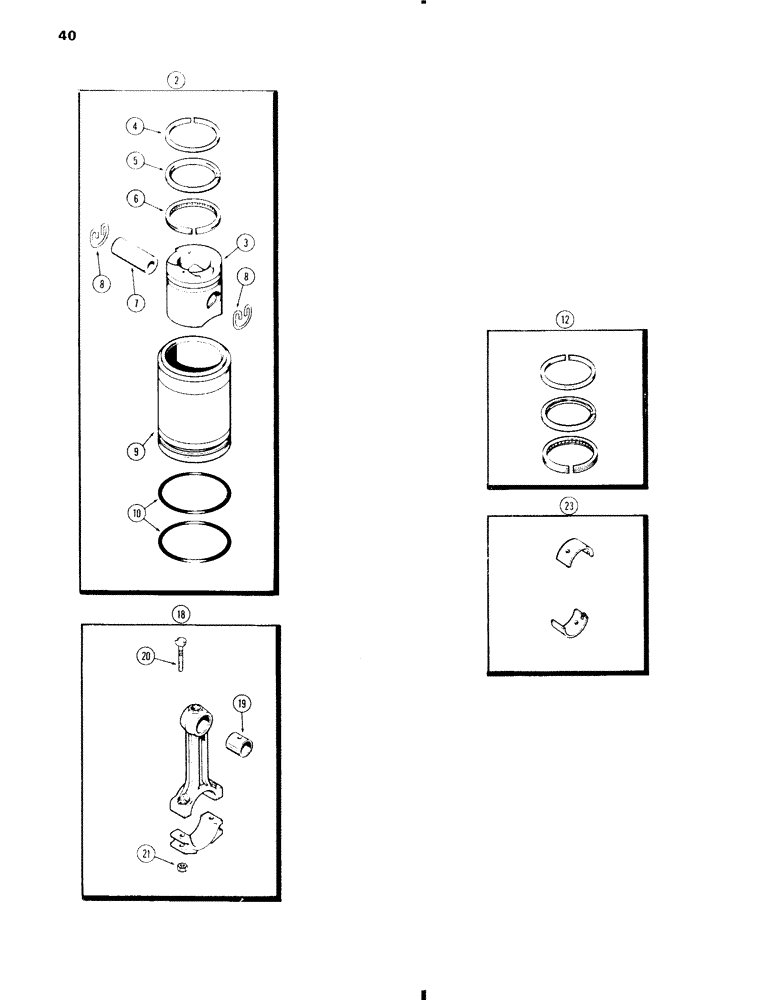

Запчасти Case 584C (040) - PISTONS, 207 DIESEL ENGINE, CONNECTING RODS (10) - ENGINE

2

A46382

PACKAGE, REPAIR

PISTON AND SLEEVE KIT - (Set of 1) (Replaces A46013, A46014 and A151991), Includes: Ref. 3 - 10

4шт.

3

A151244

PISTON

- engine (Replaces A51911)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, first groove (Order Ref. 12)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 12)

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 12)

1шт.

7

A35770

PISTON PIN,31.75mm OD x 80.44mm L

PIN - piston

1шт.

8

G46702

RING, LOCKING

RING - piston pin retaining

2шт.

9

A136474

SLEEVE CYLINDER

SLEEVE - piston (Cylinder liner)

1шт.

10

A51916

O-RING,4.115" ID x 4.281" OD

- sleeve, 4-1/8 x 4-1/4 x 1/16" (104.78 x 107.95 x 1.59 mm)

2шт.

12

A151892

RING

SET - piston re-ring (Set of 1) (Replaces A46015 and A46016)

4шт.

18

A51913

RING

ROD ASSEMBLY - connecting, Includes: Ref. 19 - 21

4шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order A44083 kit, Set of 4)

1шт.

20

A51914

BOLT

- connecting rod cap

2шт.

21

A51904

NUT

NUT - connecting rod bolt

2шт.

23

A50975

BEARING LINER,58.67mm ID x 62.48mm OD x 27.69mm W

INSERT KIT - connecting rod bearing, standard (Set of 2)

4шт.

23

A50976

BEARING

INSERT KIT - connecting rod bearing, 0.002" undersize (0.06 mm) Set of 2)

4шт.

23

A50977

BEARING,58.42mm ID x 62.48mm OD x 27.69mm W

INSERT KIT - connecting rod bearing, 0.010" undersize (0.26 mm) Set of 2)

4шт.

23

A50978

BEARING,58.17mm ID x 62.48mm OD x 27.69mm W

INSERT KIT - connecting rod bearing, 0.020" undersize (0.50 mm) Set of 2)

4шт.

23

A50979

BEARING

INSERT KIT - connecting rod bearing, 0.030" undersize (0.76 mm) (Set of 2)

4шт.
