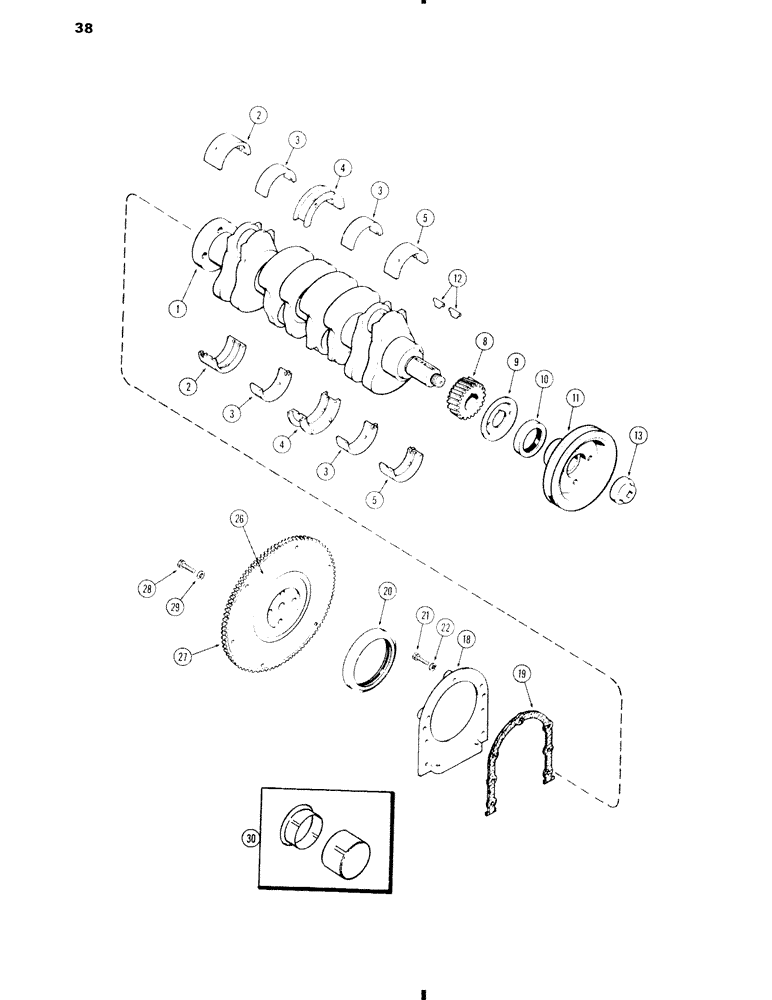

Запчасти Case 584C (038) - CRANKSHAFT AND FLYWHEEL, 207 DIESEL ENGINE (10) - ENGINE

1

A144011

CRANKSHAFT

- (Replaces A51917)

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT KIT - main bearing, rear, standard(Set of 2)

1шт.

2

A36496

LINING

INSERT KIT - main bearing, rear, 0.002" undersize (0.06 mm) (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT KIT - main bearing, rear, 0.010" undersize (0.26 mm) (Set of 2)

1шт.

2

A36498

KIT

INSERT KIT - main bearing, rear, 0.020" undersize (0.50 mm) (Set of 2)

1шт.

2

A36499

BEARING LINER

INSERT KIT - main bearing, rear, 0.030" undersize (0.76 mm) (Set of 2)

1шт.

3

A36485

LINING

INSERT KIT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A36486

LINING

INSERT KIT - main bearing, intermediate, 0.002" undersize (0.06 mm) (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSERT KIT - main bearing, intermediate, 0.010" undersize (0.26 mm) (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSERT KIT - main bearing, intermediate, 0.020" undersize (0.50 mm) (Set of 2)

2шт.

3

A36489

LINING

INSERT KIT - main bearing, intermediate, 0.030" undersize (0.76 mm) (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT KIT - main bearing, center, standard (Set of 2)

1шт.

4

A36491

LINING

INSERT KIT - main bearing, center, 0.002" undersize (0.06 mm) (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT KIT - main bearing, center, 0.010" undersize (0.26 mm) (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT KIT - main bearing, center, 0.020" undersize (0.50 mm) (Set of 2)

1шт.

4

A36494

LINING

INSERT KIT - main bearing, center, 0.030" undersize (0.76 mm) (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT KIT - main bearing, front, standard (Set of 2)

1шт.

5

A36481

LINING

INSERT KIT - main bearing, front, 0.002" undersize (0.06 mm) (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT KIT - main bearing, front, 0.010" undersize (0.26 mm) (Set of 2)

1шт.

5

A36483

LINING

INSERT KIT - main bearing, front, 0.020" undersize (0.50 mm) (Set of 2)

1шт.

5

A36484

LINING

INSERT KIT - main bearing, front, 0.030" undersize (0.76 mm) (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front, 2 x 3 x 1/2" (50.8 x 76.2 x 12.7 mm)

1шт.

11

A138244

PULLEY

- fan drive

1шт.

12

A39132

KEY

- pulley and gear (Replaces 126-216)

2шт.

13

A35673

NUT

- pulley retaining

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear, 4 x 5 x 1/2" (101.6 x 127 x 12.7 mm)

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer, 1/4 x 3/4" NC hex

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer, 1/4 x 1" NC hex

3шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

7шт.

26

A38915

FLYWHEEL

ASSEMBLY - engine

1шт.

27

G11710

GEAR

- ring, starter

1шт.

28

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

BOLT - flywheel to crankshaft, 7/16 x 1-1/8" NF hex

4шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flywheel bolt, 7/16 x 3/4 x 1/16"

4шт.

30

A155893

SLEEVE

KIT - wear

1шт.
